K117sm5e9
5-138

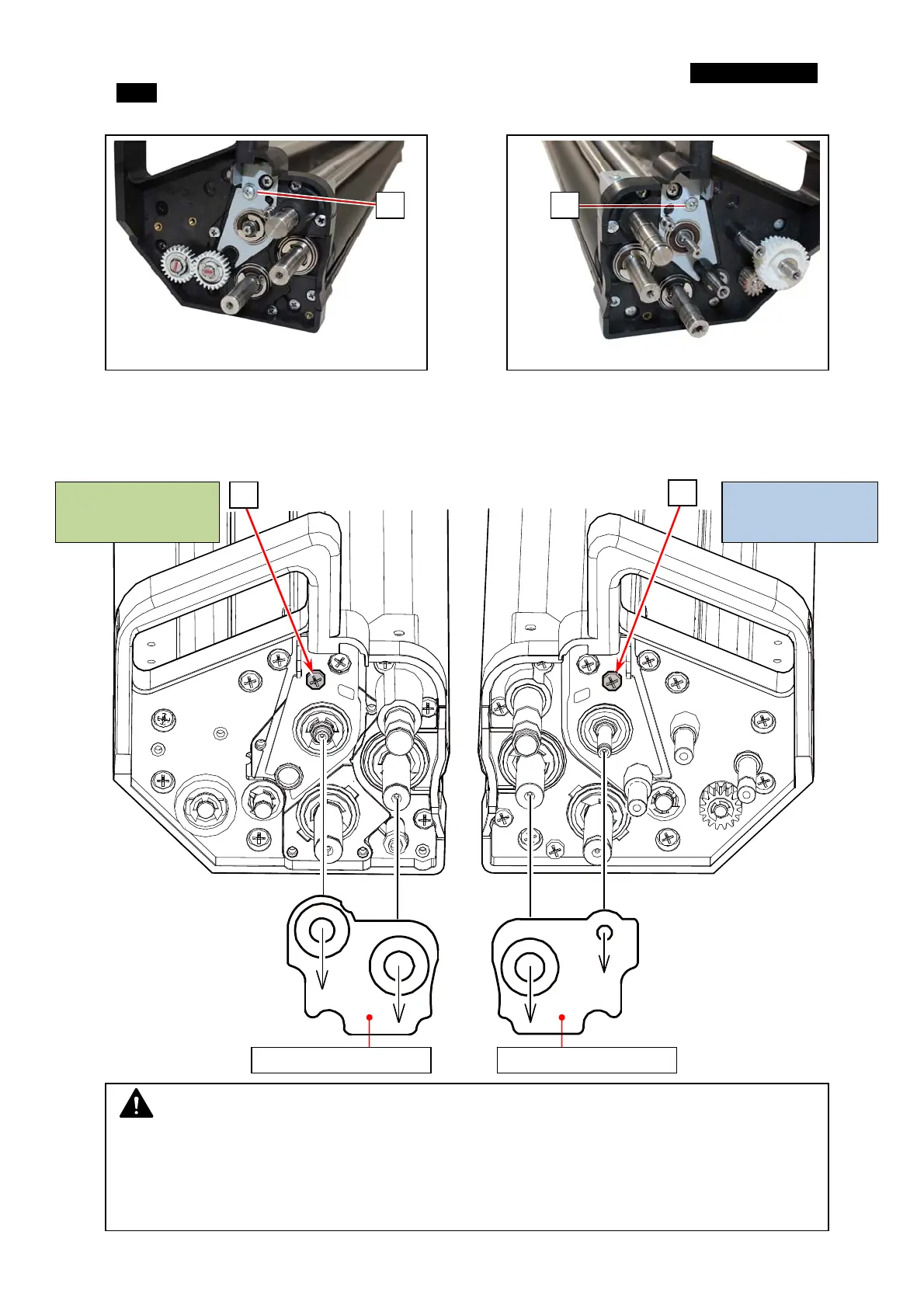

70. Follow the instruction 70-1 and after to get the correct pressure by the Regulation Roller
against the Developer Roller, with using the Plate Position 1 Assy and the Plate Position 2
Assy.
70-1. Make sure that 2 screws (70) (63) is fixed loosely. If not, loosen them.
70-2. Taking care of the Note column on the next page, carefully install the Plate Position 2 Assy to
the machine left side (right hand grip side).
In the same way, carefully install the Plate Position 1 Assy to the machine right side (left
hand grip side).
70 63
70
63
Plate Position 2 Assy Plate Position 1 Assy
NOTE
(1) Gently insert the Plate Position Assys onto the rollers shaft. Inserting by force may have
the Plate Position Assys stuck.
(2) Fully insert Plate Position Assys on the shaft.
machine left side
= right hand grip side
= Bias Electrode side
machine right side
= left hand grip side
= Drive side
To Next Page
