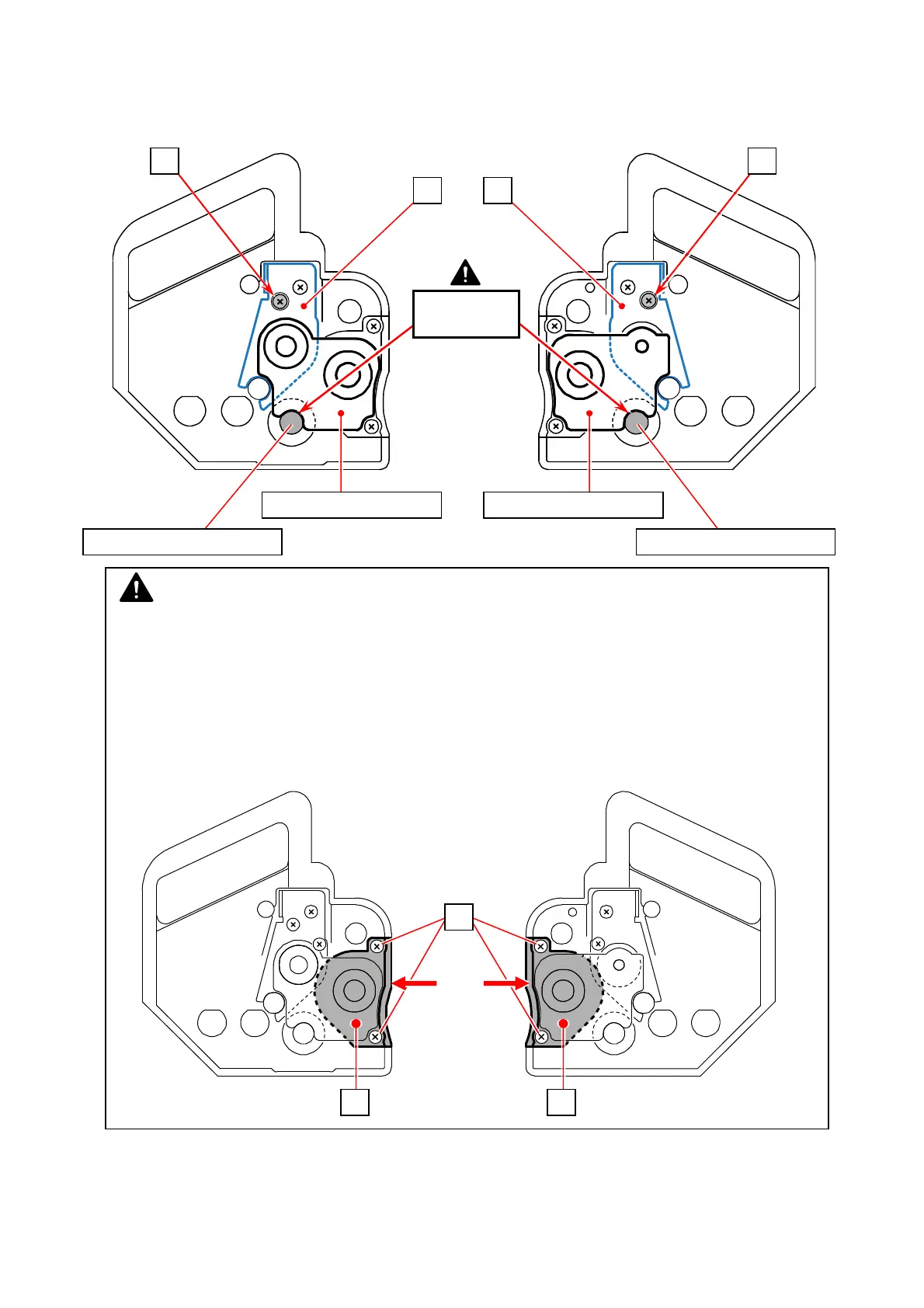

70-3. Keeping tight contact (no clearance) between the round rim of the Plate Position Assys and
the Toner Supply Roller shaft, gently tighten the screw (70) (63).
DO NOT turn the screw (70) (63) quickly.
DO NOT hold the Plate 18 Assy (72) or the Plate 17 Assy (65)
NOTE
(1) The screws should be turned with tight contact (no clearance) between the round rim of
the Plate Position Assys and the Toner Supply Roller shaft. If there is clearance there
(incomplete contact), it would cause improper pressure against the Developer Roller.
(2) Such clearance would result from mechanical play as the Side Plate 21 (56) or the Side
Plate 19 (57) was installed incorrectly. To remove it, first loosen the screws (52). With
pushing the Side Plate 21 (56) and the Side Plate 19 (57) to the arrow direction, tighten
the screws (52).
TIGHT
CONTACT
70 63
72 65
Plate Position 2 Assy Plate Position 1 Assy
Toner Supply Roller shaftToner Supply Roller shaft
52
56 57
To Next Page
