K117sm5e9
5-140

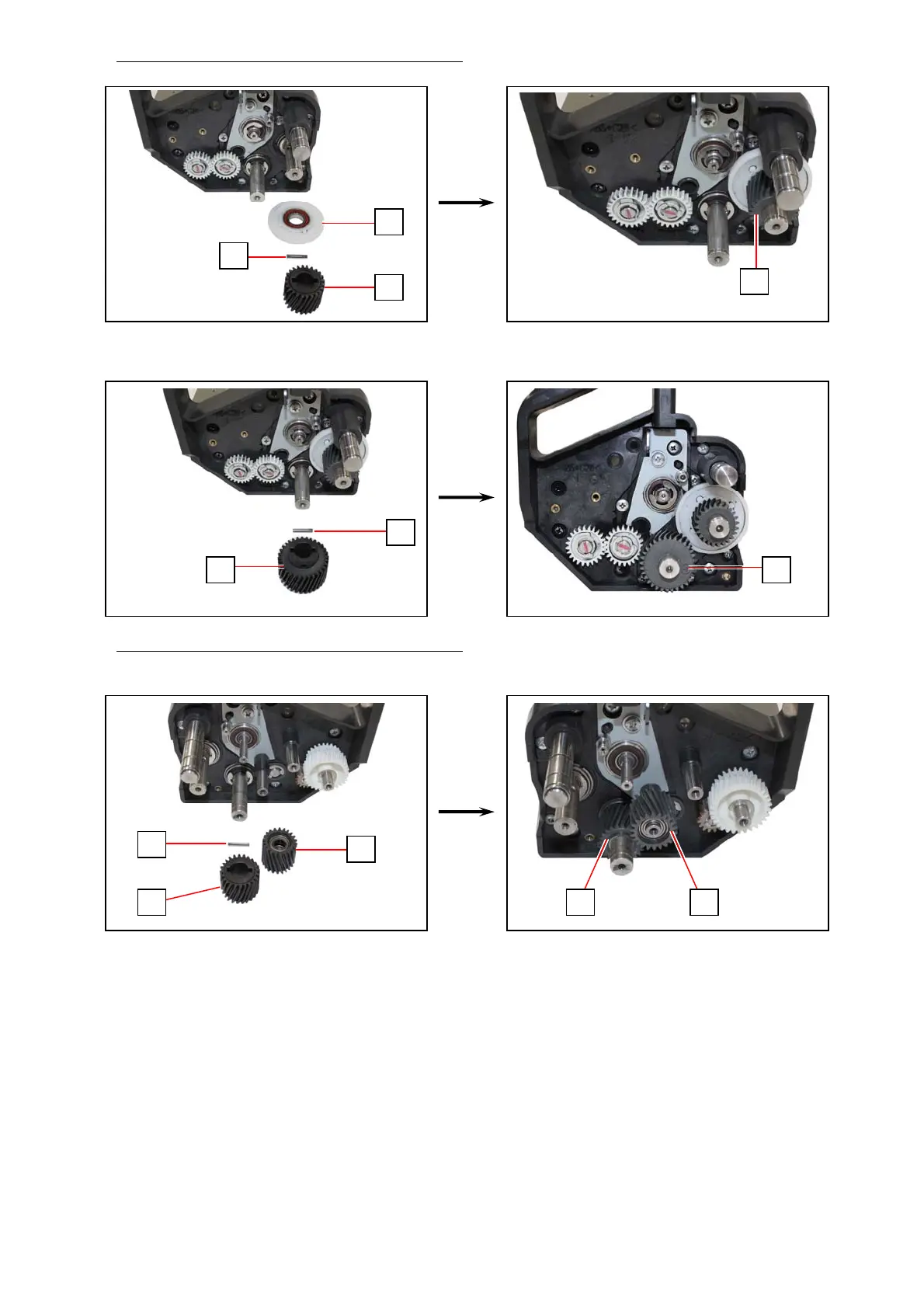

71. On the machine left side (right hand grip side)
, return the Counter Roller (51), the Parallel Pin
(50: 3x16) and the 24T Helical Gear (49) to the Developer Roller shaft.
72. Return the Parallel Pin (48: 3x16) and the 32T Helical Gear (47) to the Toner Supply Roller
shaft.
73. On the machine right side (left hand grip side)
, return the Parallel Pin (46: 3x16) and the 24T
Helical Gear (45) to the Toner Supply Roller shaft.
Next return the 22T Helical Gear (44).
45 44
47
49
49
50
51
47
48
44
45
46
To Next Page
