K117sm5e9
5-141

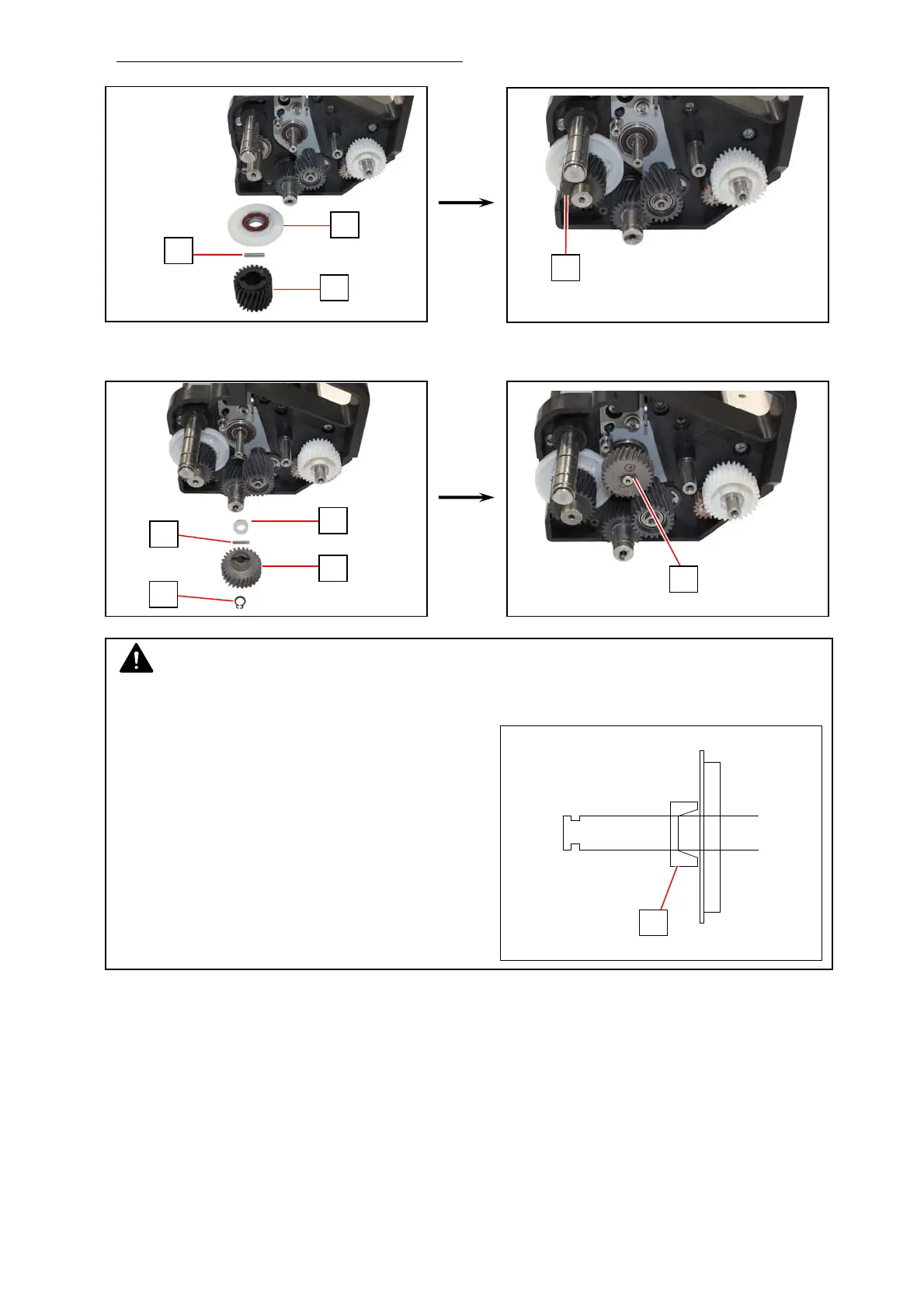

74. On the machine right side (left hand grip side)
, return the Counter Roller (43), the Parallel Pin
(42: 3x16) and the 24T Helical Gear (41) to the Developer Roller shaft.
75. Return the small “Collar 3” (40), the Parallel Pin (39: 2.5x10), the 27T Helical Gear (38) and C
Ring (37: C6) to the Regulation Roller shaft.
NOTE
Mind the direction of the small “Collar 3” (40) as follows.
37
41
41
43
42
40
38
39
37
40
To Next Page
