5-142

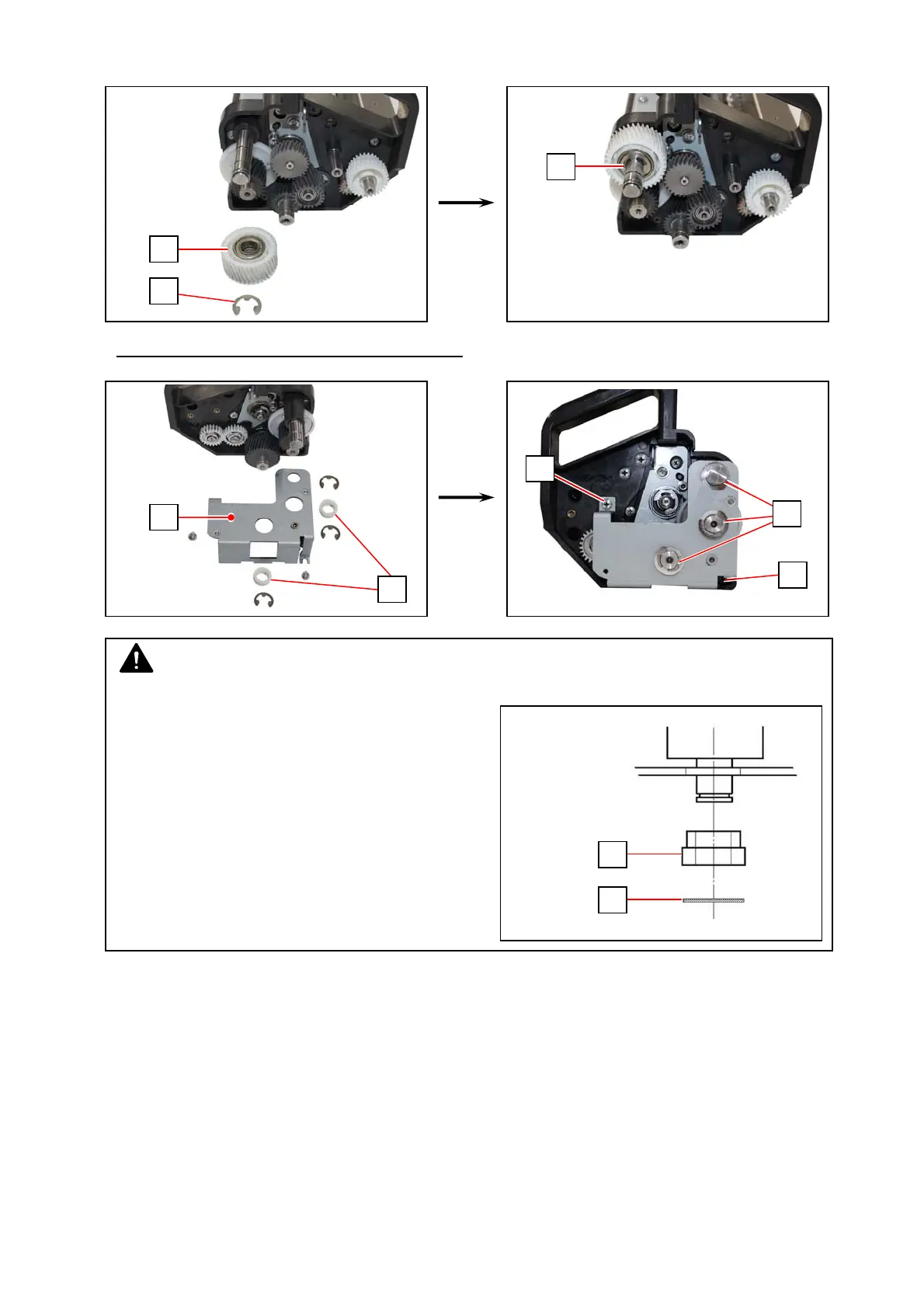

76. Return the 38T Helical Gear (36) and 1 Retaining Ring-E (35: E10) to the Developer Roller
shaft.
77. On the machine left side (right hand grip side)
, return the Plate 13 (34) and 2 Collars (33). Fix
them with 3 Retaining Ring-E (31: E10) and 2 screws (32: M4x6).
NOTE
Mind the direction of the Collars (33) as follows.
32
32
31
36
35
35
34
33
33
31
To Next Page
