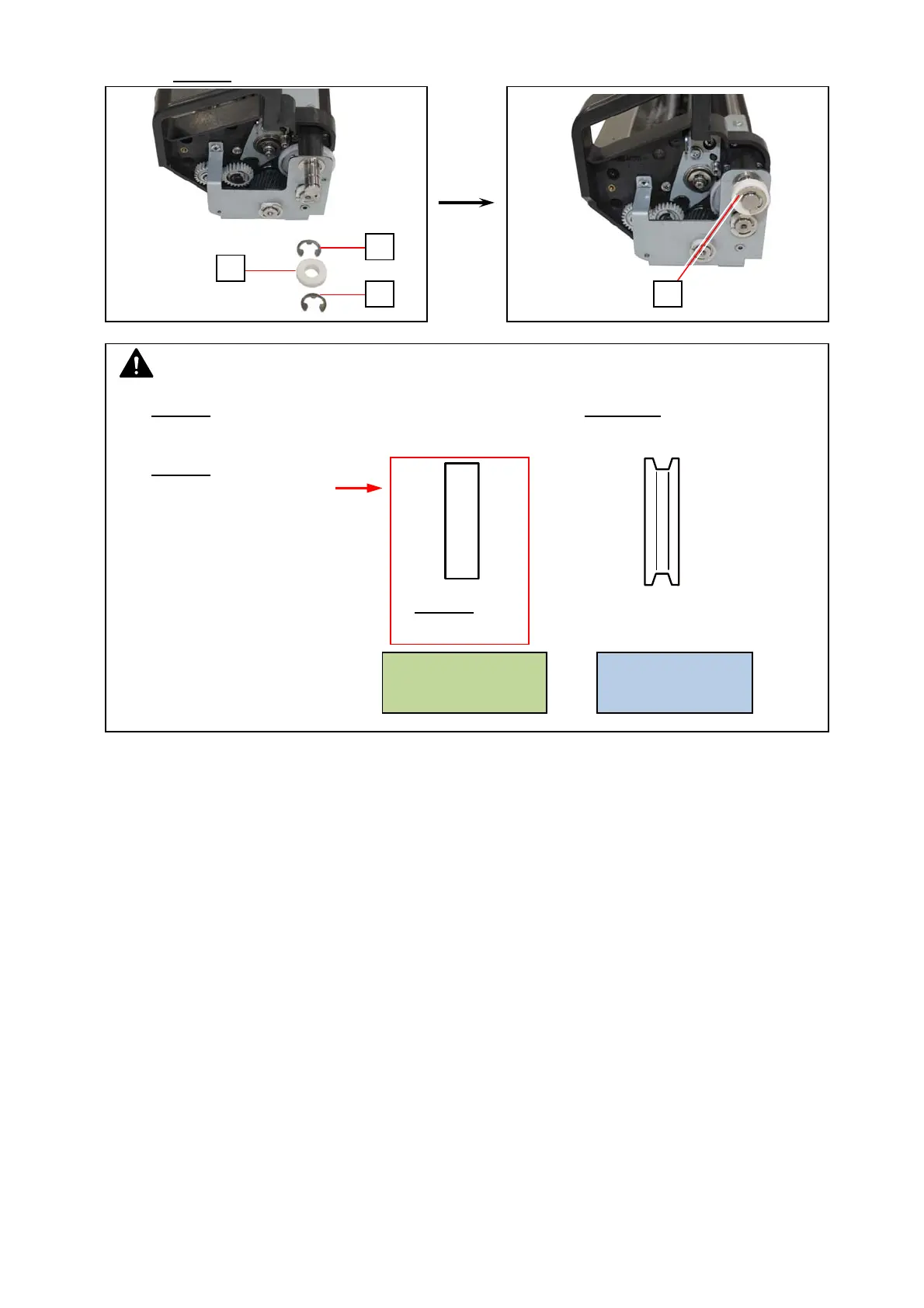

78. Return 1 Retaining Ring-E (30: E10).
Fix the Collar 3
(29) with another Retaining Ring-E (28: E10).
28
30
29
NOTE
The Collar 3
(29: machine left side = right hand grip side) has no groove.
The Collar 2 (to be returned later: machine right side = left hand grip side) has a groove.
The Collar 3
(29) without groove
should be used on this step
Collar 3
(29) Collar 2
without groove with groove
28
machine left side
= right hand grip side
= Bias Electrode side
machine right side
= left hand grip side
= Drive side
