KIP 700m - Page 266

K117sm5e9
5-144

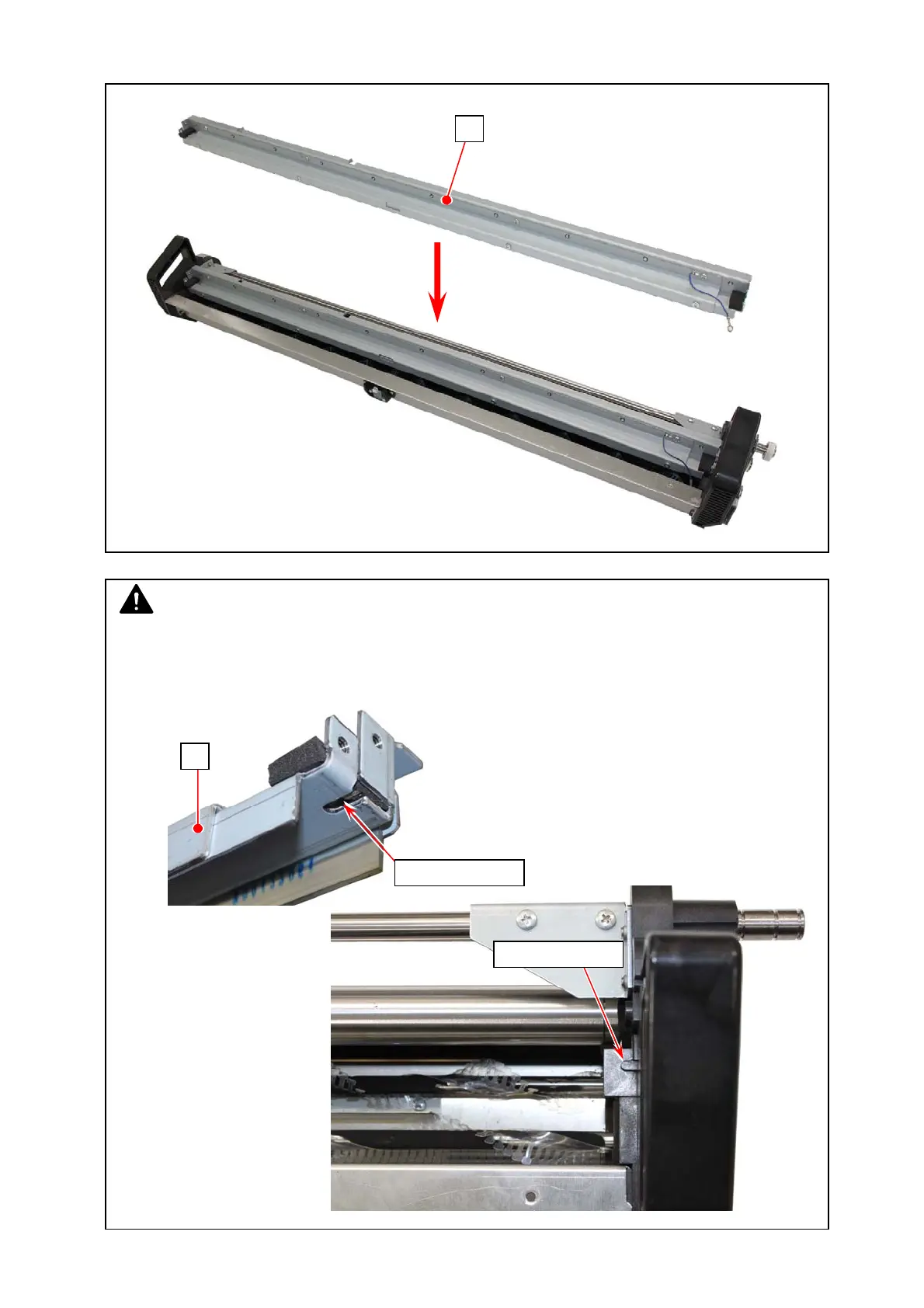

79. Return the Scraper Assy (22) to the Developer Assy, taking care of the Note column below.
NOTE
Match the U-shape cuttings on the bottom of the Scraper Assy (22) with the bosses on each
inner face of the Developer side plates.
The example shown below is the machine left side (right hand grip side).
22
22
U-shape cutting
positioning boss
