5-145

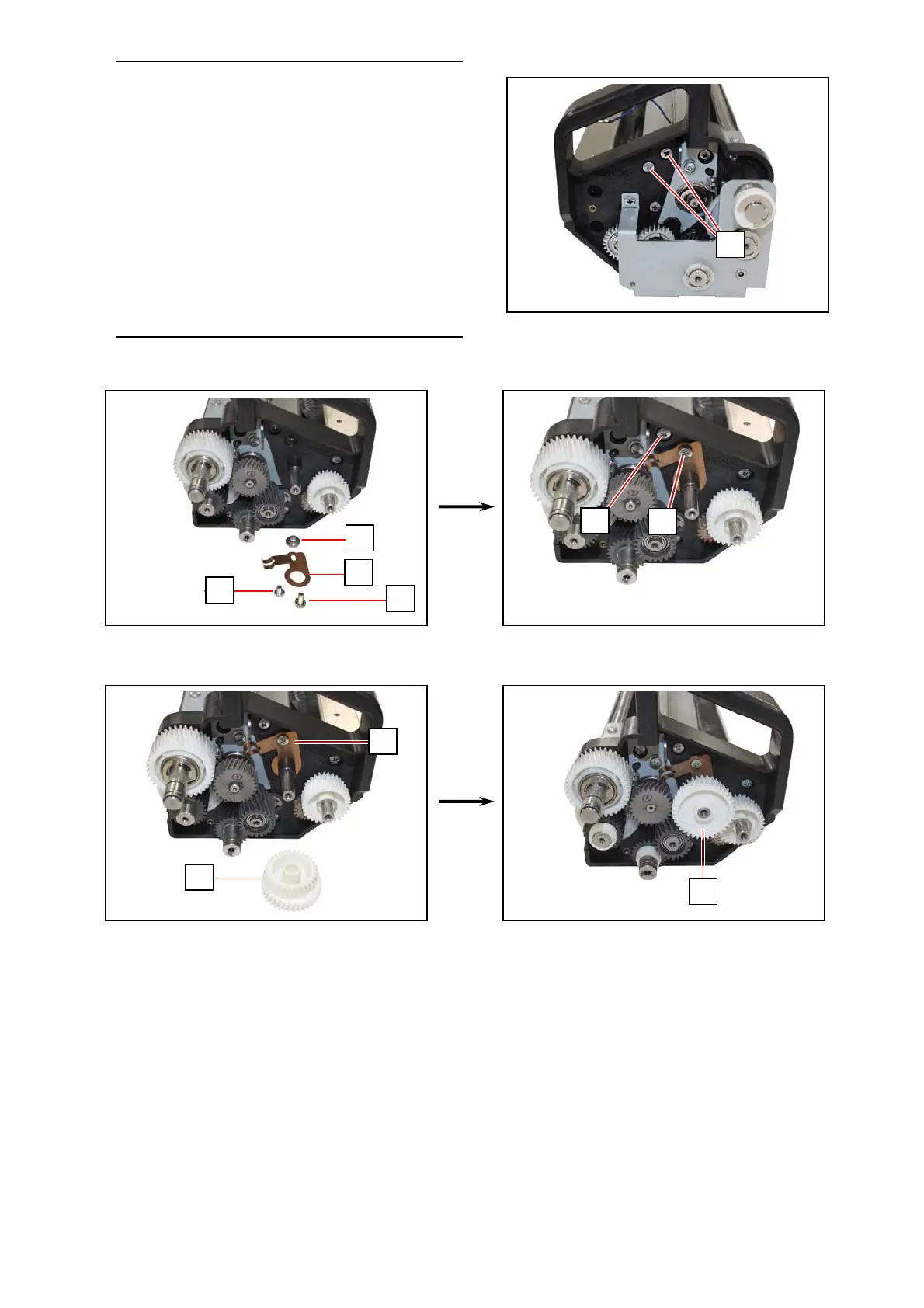

80. On the machine left side (right hand grip side)
, fix the Scraper Assy with 2 screws (21: M4x6).
81. On the machine right side (left hand grip side)
, fix the Scraper Assy, the Collar (20) and the
Leaf Spring 6 (19) with 1 tooth washer screw (18: 4x10).
Fix the Scraper Assy with another screw (17: M4x6).
82. Return the 31-37T Gear (16) to the Leaf Spring 6 (19) shaft.
21
17
18
20
19
18
19
16
16
17
To Next Page
