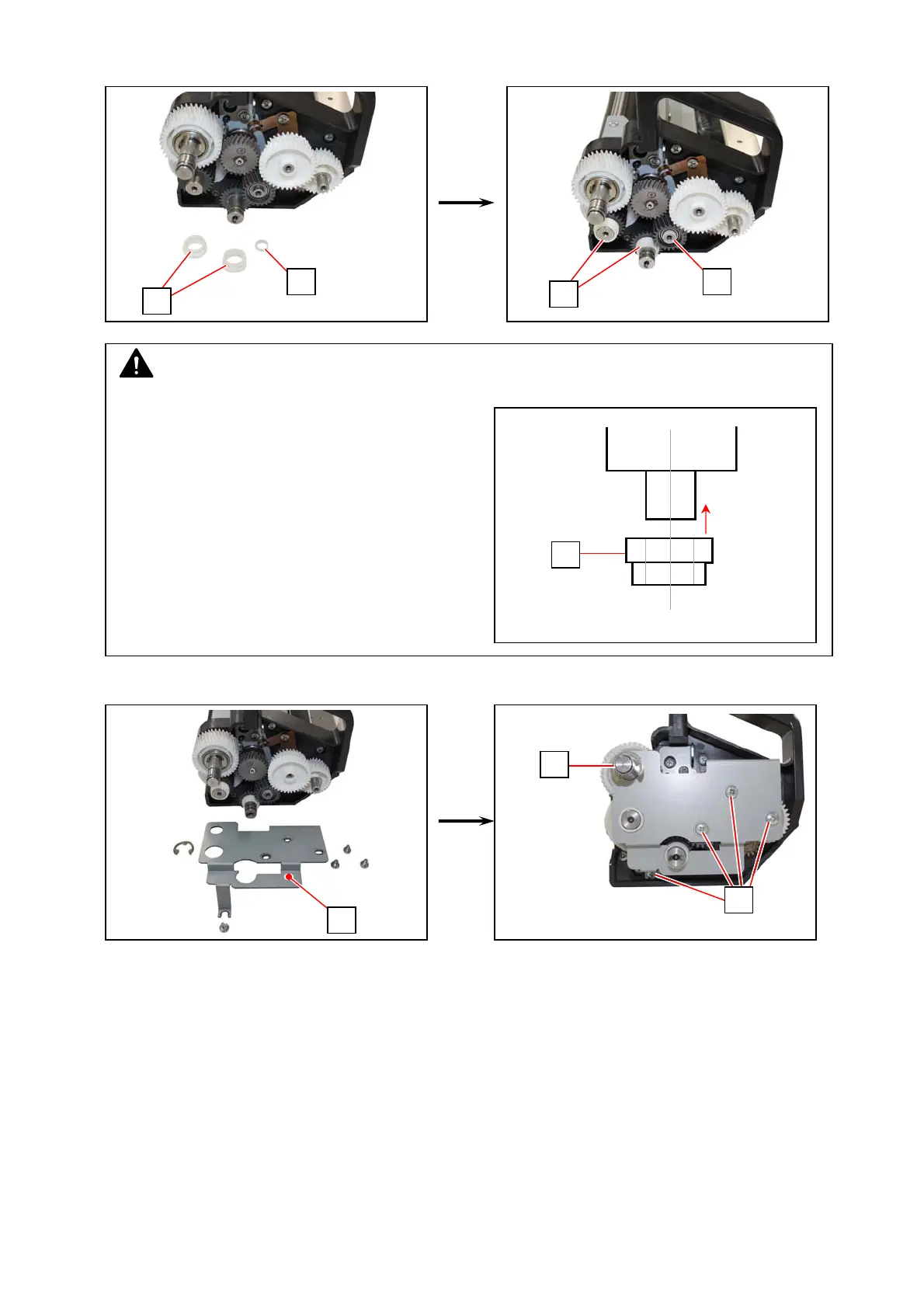

83. Return 2 Collars (14) to the Developer Roller shaft and the Toner Supply Roller shaft.
Return the Collar (15).
84. Fix the Bracket (13) with 4 screws (12: M4x6) and 1 Retaining Ring-E (11: E10).
14
15
NOTE
Mind the direction of the Collars (14) as follows.
15
14
14
11
13
12
