KIP 700m - Page 269

K117sm5e9
5-147

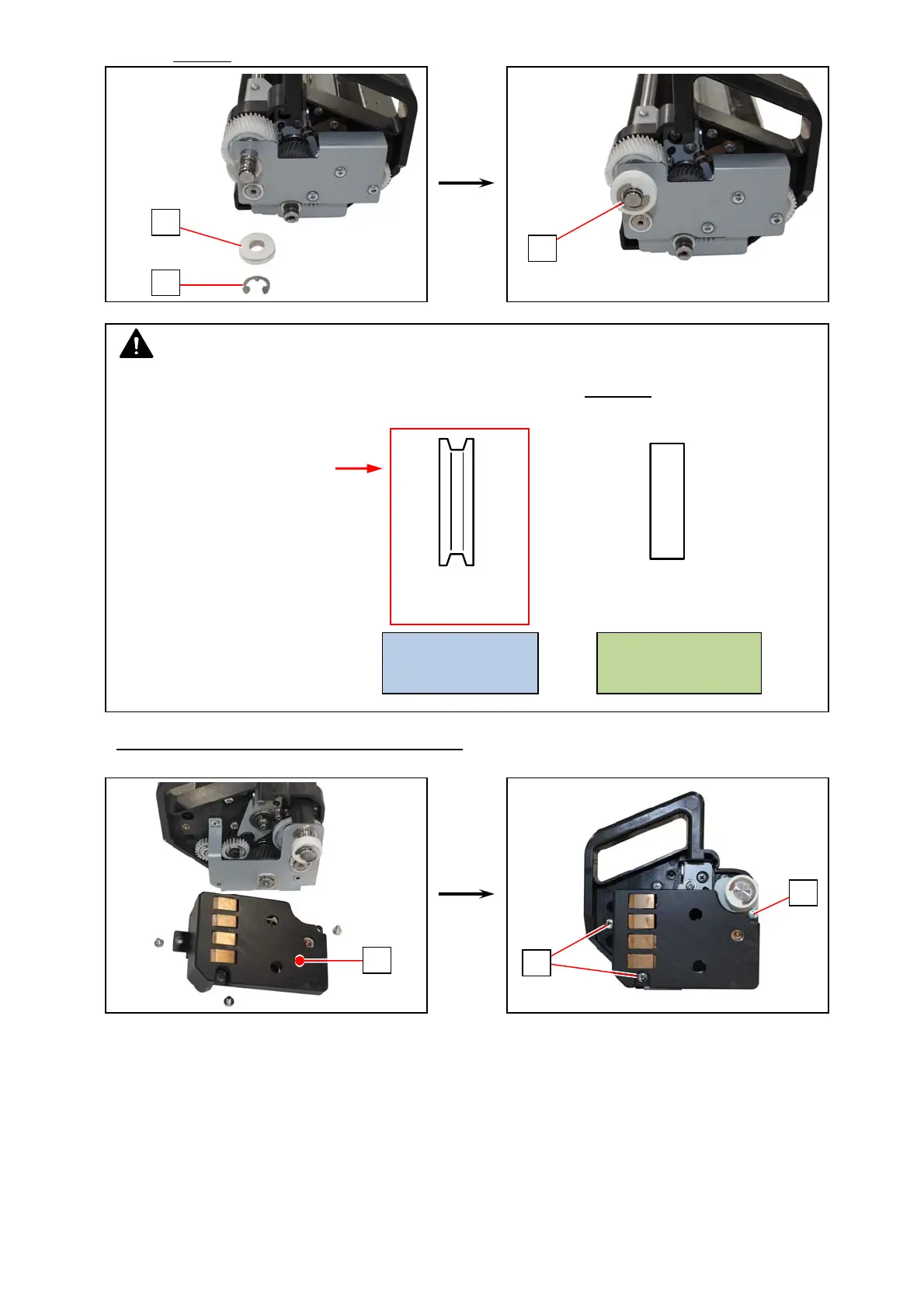

85. Fix the Collar 2
(10) with 1 Retaining Ring-E (9: E10).
86. On the machine left side (right hand grip side)
, fix the Terminal Cover (8) with 3 screws (7:
M4x6).
9
7
7
NOTE
The Collar 2 (10: machine right side = left hand grip side) has a groove
.
The Collar 3 (already reassembled: machine left side = right hand grip side) has no groove.
The Collar 2 (10) with a groove
should be used on this step
Collar 2 (10) Collar 3
with a groove without groove
machine left side
= right hand grip side
= Bias Electrode side
machine right side
= left hand grip side
= Drive side
9
10
8
