5-148

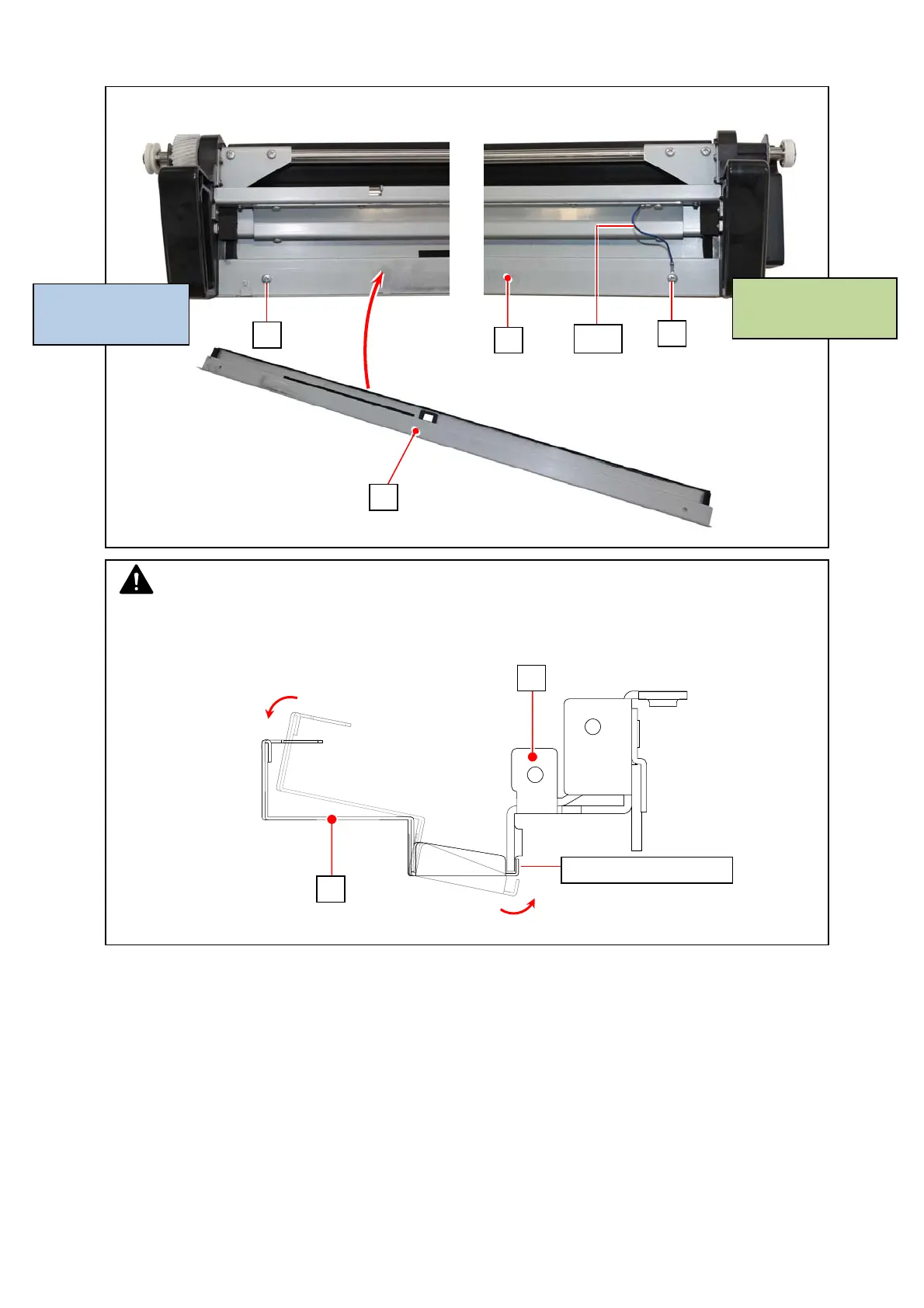

87. Return the Cover 4 (6). Fix it with 2 screws (5: M4x6).
On the machine left side (right hand grip side), secure the ground wire (104) together.
top view
6
machine left side
= right hand grip side
= Bias Electrode side
machine right side
= left hand grip side
= Drive side
5
6
NOTE
The “Hook” shape front edge of the Cover 4 (6) should fit on the Scraper Assy (22).
22
6
hook shape front edge
5
104
