K117sm8eC
8-144
[Operation]

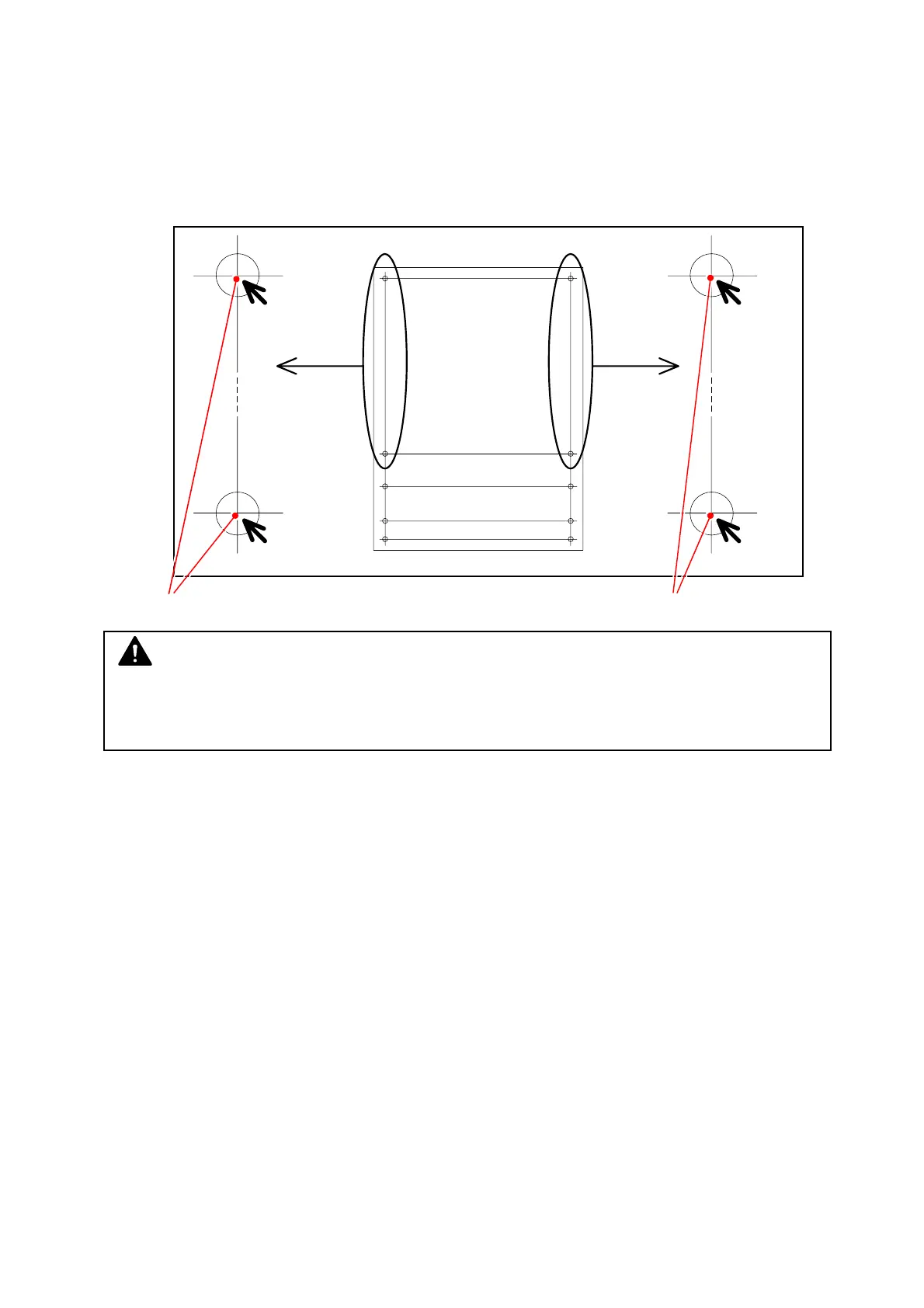

1. Measure the actual distance between “a point” and “c point” on the far left area of Scanner
Adjustment Chart, and between “b point” and “d point” on the far right area.
Let’s suppose that each distance is as follows.
Between “a point” and “c point (800)” is “799.7mm”
Between “b point” and “d point (800)” is 799.8mm
Scanner Adjustment Chart
Measure between these 2 points. Measure between these 2 points.
2. Connect the scanner unit and the PC directly with the USB 2.0 Cable.
3. Start KIP Scanner Utility.
b
d1000
a
c 800
c 1000
a
c800 d800
b
d 800
d1100
c 1100
d1150
c 1150
NOTE
There are some number of “c point X” and “d point X” on the chart.
You can select any one, but better adjustment can be expected if you measure a longer
distance.
To Next Page
