2. Removal of the PAPER DECK ASSY

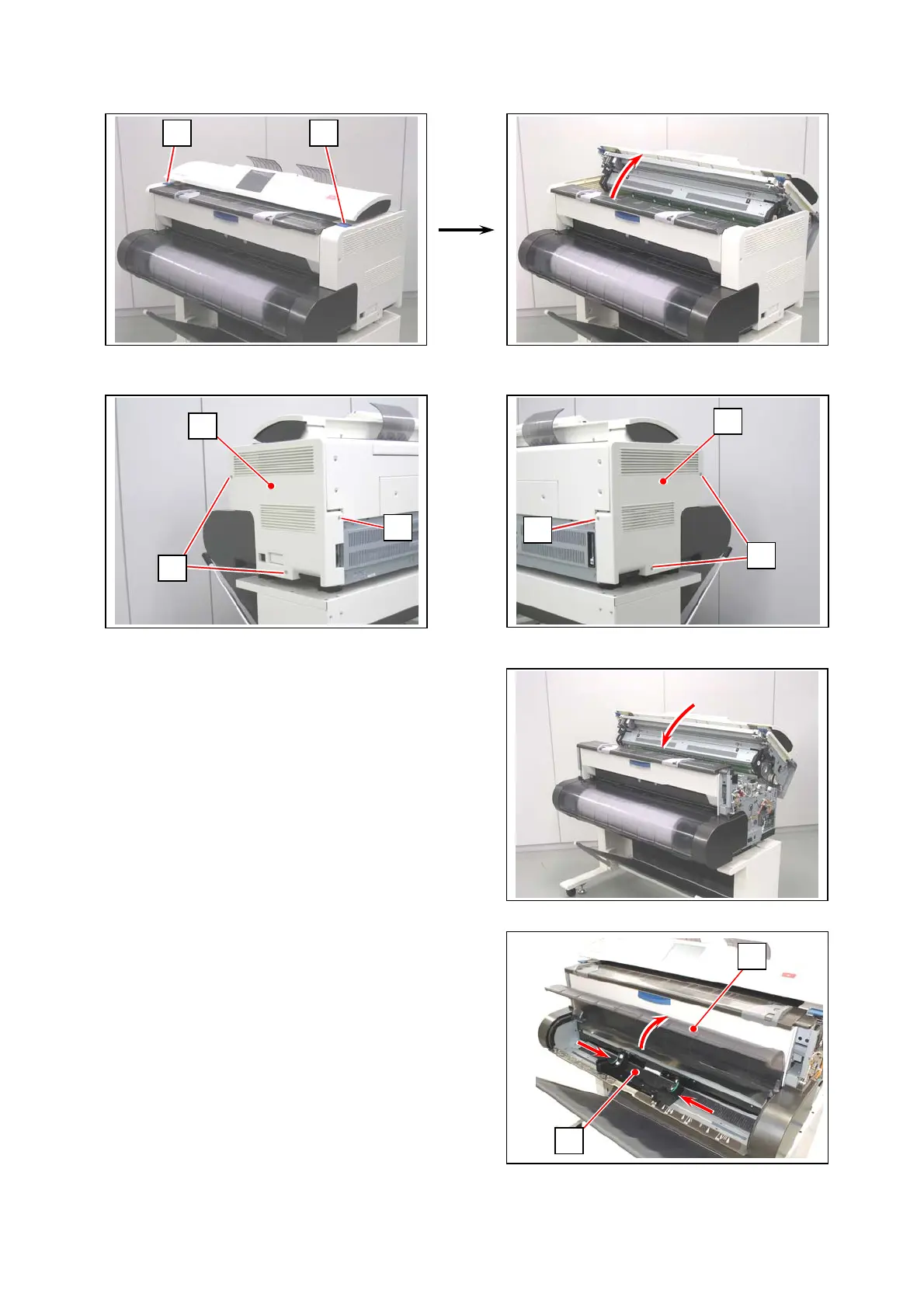

1. Press the blue lever (1) on both sides to open the Upper Unit.
2. Remove 3 Screws (2) on each side, and then remove the Side Cover R (3) and Side Cover L (4).
3. Close the Upper Unit.
4. Open the Roll Deck Cover (5) and move the Size Guide
(6) to the center.
1 1
2
2
2
2
3
4
5
6
