9-3

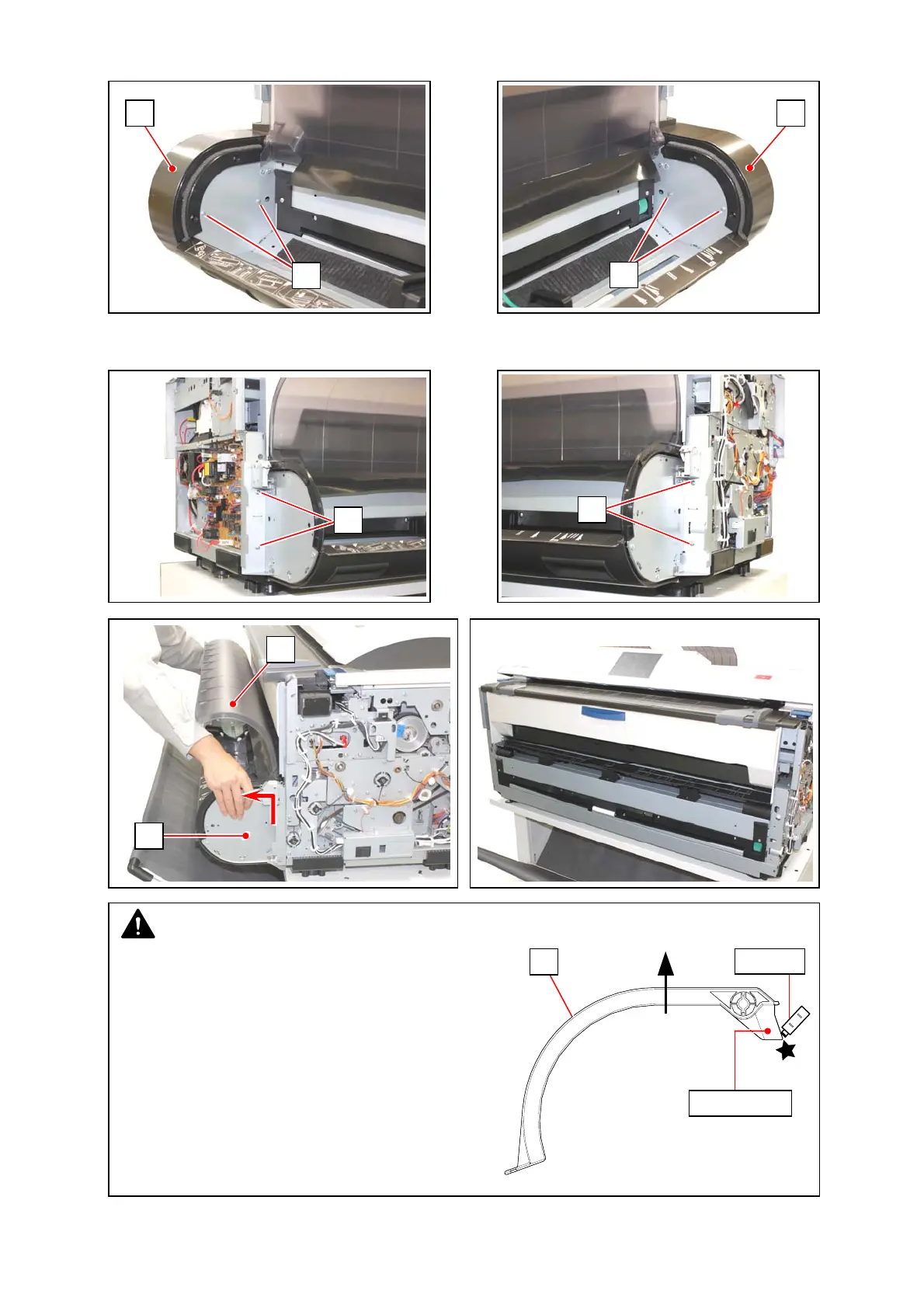

5. Inside of the Roll Deck, remove 2 screws (7) on each side to remove Cover 20 (8) and Cover 19 (9).
6. Remove 2 tooth washer screws (10). Keeping the Roll Deck Cover (12) open, remove the whole Roll Deck
Assy (11).
9
7
7
8
10
10
NOTE
The Roll Deck Cover (12) should be kept OPEN while
removing / reinstalling the Roll Deck.
Otherwise the actuator part would be caught by the
microswitch to damage it.
12
SWITCH
ACTUATOR
11
12
To Next Page
