9-7

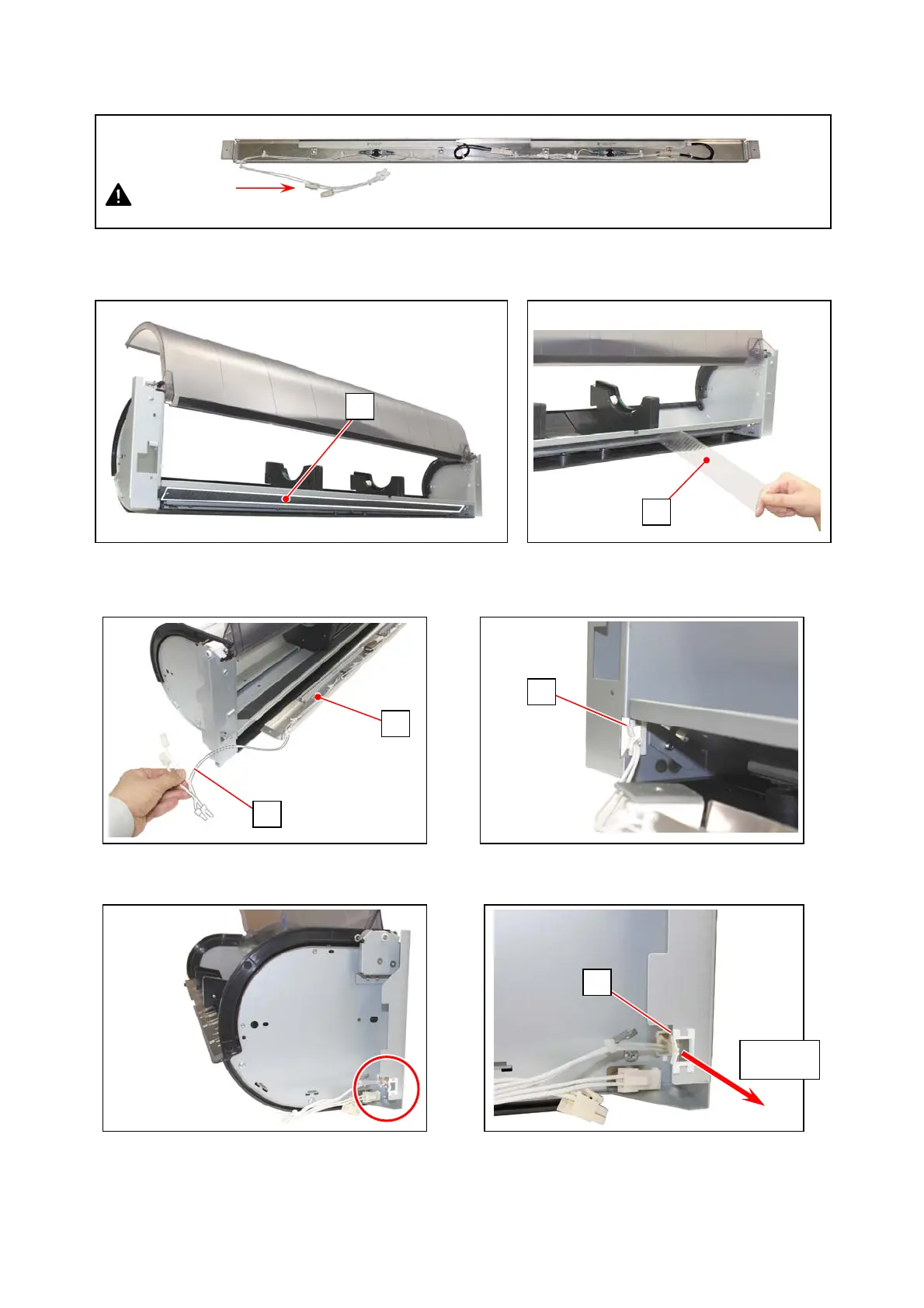

4. Installing Kit Components to Roll Deck Assy
4-1. Installing Dehumidify Heater Assy
1. Remove the clear tape (1) from the back of the Roll Deck Assy.
2. Pass the harness (3) of the Dehumidify Heater Assy (2) through the rectangle hole on the bottom right of
the Roll Deck Assy. Attach the Edge Saddle (4) to the hole on the right side.
3. Attach the Edge Saddle (5) to another hole on the right side. Pass the harness through the hole.
1
2
3
4
5
HARNESS
ハーネス
1
White Harness
DEHUMIDIFY HEATER ASSY
To Next Page
