. Reinstallation of each unit
7-1. Reinstalling Guide Plate

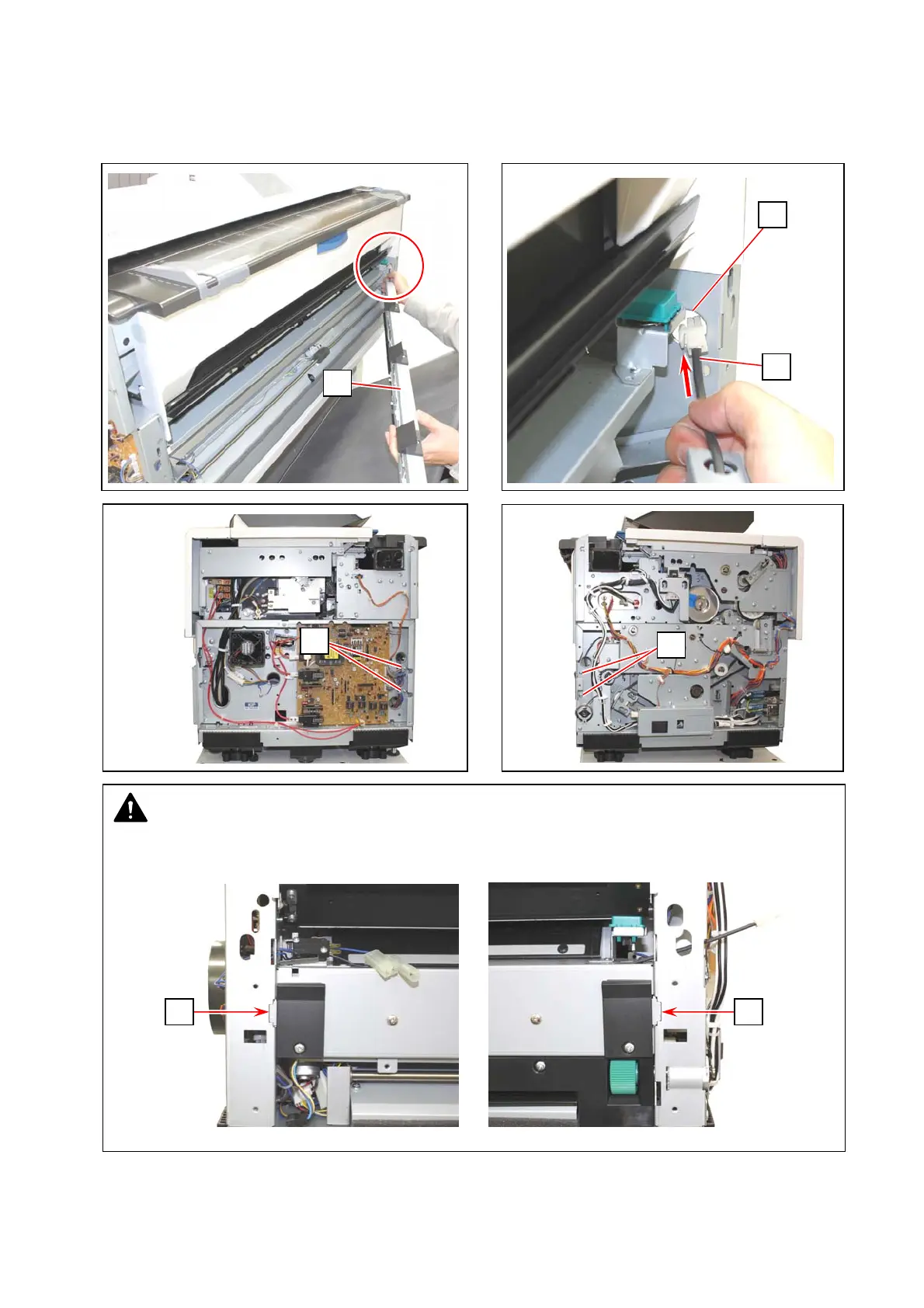

1. Pass the harness (2) sticking out from Guide Plate (1) through the round hole (3) on the right side. Fix
Guide Plate with 4 screws (4).
1
2
3
NOTE
Fit the tab parts (5) on both sides in the notches.
5 5
4
4
1
