2 - 4
Chapter 2 Diagnostics
4. Output Tests
With “Output Tests” displayed on the LCD, pressing the “X” button will enter the “Output Tests” menu
and display the first menu selection.

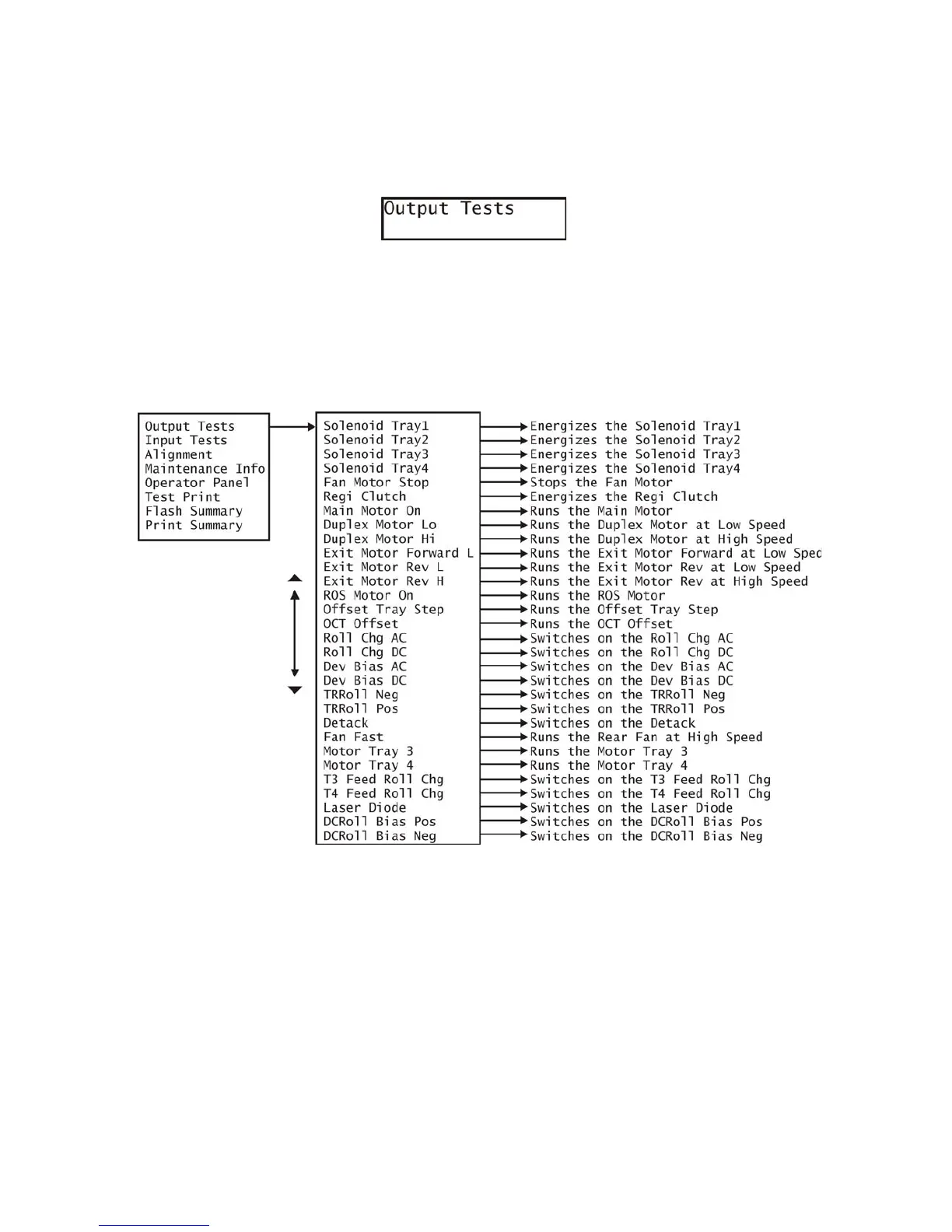

The complete Output Tests menu is displayed in the figure below. None of the menu selections in the
Output Tests have sub-menus. Pressing “X” will run the menu item currently displayed. Pressing “W” or
“CANCEL” will stop the menu item displayed. These tests are verified by audible sounds. Pressing “W”
again will return you to the next higher menu or “Output Tests”.
