3 - 111
Chapter 3 Removal and Replacement Procedures (RRPs)
RRP6.10 CHUTE TRANSFER (PL 6.1)
Removal
1) Remove the COVER REAR 500 (PL 7.1) (RRP7.9).
2) Remove the COVER REAR (PL 1.1) (RRP1.1).
3) Remove the FUSER ASSEMBLY (PL 6.1) (RRP6.8).
4) Remove the BTR ASSEMBLY (PL 6.1) (RRP6.9).
5) Release the hook of the CHUTE TRANSFER (Figure 1).
6) Shift the CHUTE TRANSFER in the direction of the arrow, and remove it from the frame (Figure 1).

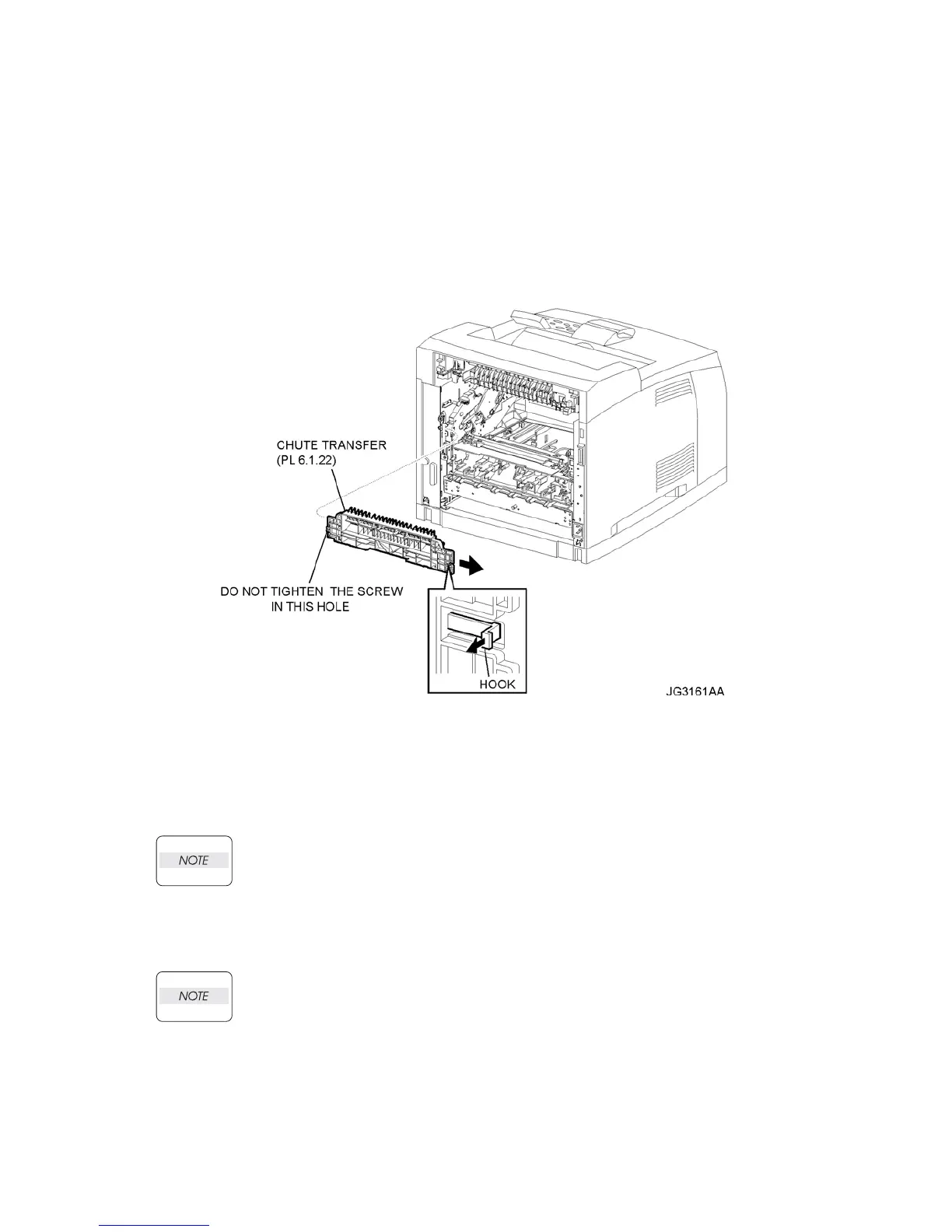

Figure 1. Transfer Chute
Replacement
1) Shift the CHUTE TRANSFER in the opposite direction of the arrow to install the frame, and secure
it using a hook (Figure 1).
Do not tighten the screw on the left side of the CHUTE TRANSFER.
2) Install the BTR ASSEMBLY (PL 6.1) (RRP6.9).
3) Install the FUSER ASSEMBLY (PL 6.1) (RRP6.8).
4) Install the COVER REAR (PL 1.1) (RRP1.1).
There are 2 kinds of screws, make sure they are installed correctly.
5) Install the COVER REAR 500 (PL 7.1) (RRP7.9).
