3 - 202
Chapter 3 Removal and Replacement Procedures (RRPs)
RRP11.9 SOLENOID ASSY GATE (PL11.1)
Removal
1) Remove the COVER REAR (PL 11.1). (RRP11.2)
2) Remove the COVER OCT (PL 11.1). (RRP11.4)
3) Remove the COVER FRONT (PL 11.1). (RRP11.5)
4) Remove the PWBA OCT (PL 11.1). (RRP11.7)
5) Remove the MOTOR ASSY OFSET (PL 11.1). (RRP11.8)
6) Remove the 2 screws (gold, 6mm) securing the SOLENOID ASSY GATE to the Option OCT.
7) Release the hook securing the SOLENOID ASSY GATE, and remove the SOLENOID ASSY
GATE.
Replacement
1) Secure the SOLENOID ASSY GATE with the hook, and secure it using the 2 screws (gold,
6mm).
2) Install the MOTOR ASSY OFFSET (PL 11.1). (RRP11.8)
3) Install the PWBA OCT (PL 11.1). (RRP11.7)
4) Install the COVER FRONT (PL 11.1). (RRP11.5)
5) Install the COVER OCT (PL 11.1). (RRP11.4)
6) Install the COVER REAR (PL 11.1). (RRP11.2)

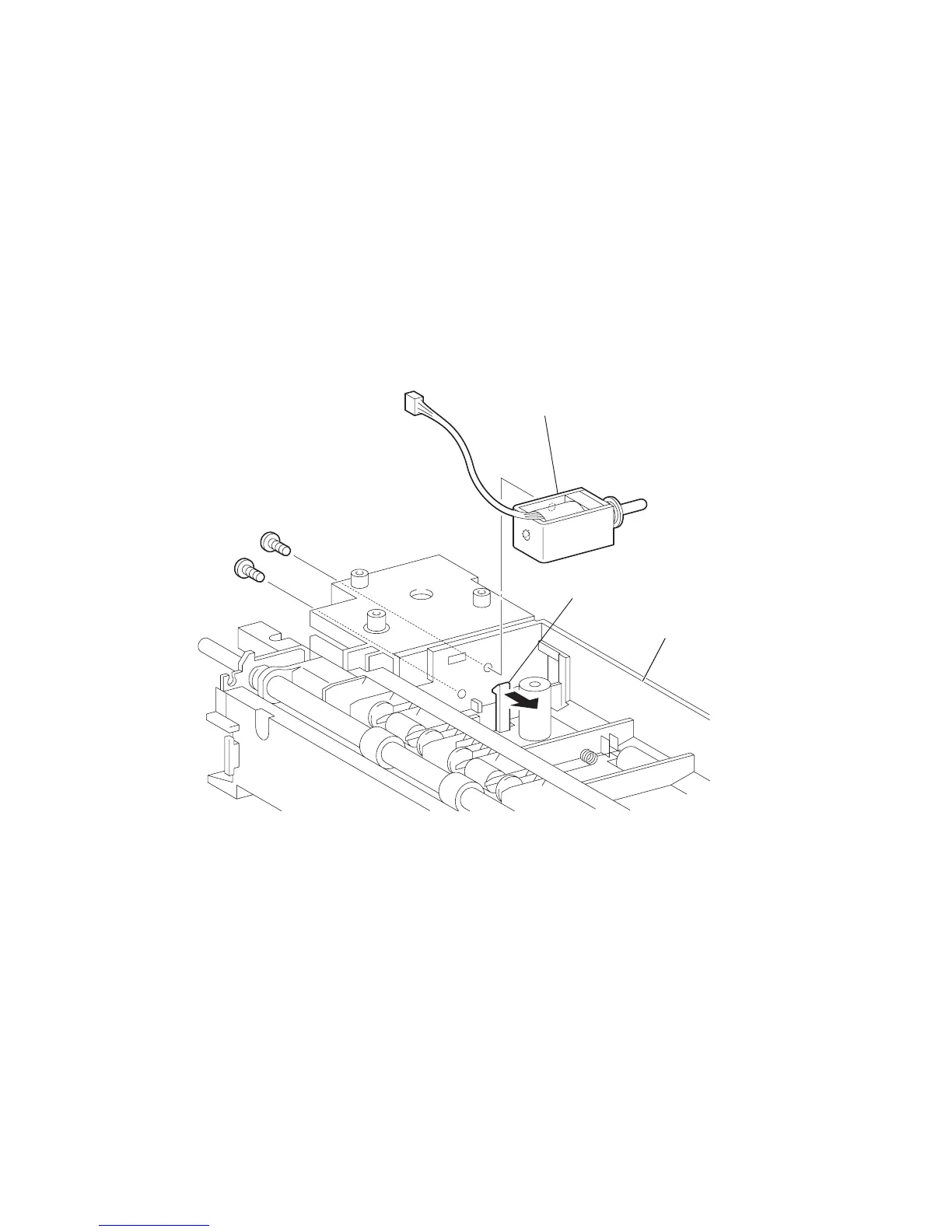

HOOK
HOUSING OCT
(PL23.1.14)
JG3810AA
SOLENOID ASSY GATE
(PL23.1.27)
