Oki B6500

3 - 181
Chapter 3 Removal and Replacement Procedures (RRPs)
RRP10.12SWITCH DUPLEX (PL10.1)
Removal
1) Remove the COVER LEFT (PL 10.1). (RRP10.9)
2) Remove the COVER TOP (PL 10.1). (RRP10.4)
3) Remove the PWBA DUPLEX (PL 10.1). (RRP10.5)
4) Remove the screw (silver, 6mm) securing the HARNESS ASSY DUP EARTH (PL 10.1).
5) Remove the 3 screws (gold tapping, 8mm) securing the BRACKET MOTOR (PL 10.1) to the
COVER HSG DUP (PL 10.1).
6) Remove the SPRING LATCH (PL 10.1) between the LEVER LATCH LEFT (PL 10.1) and
BRACKET MOTOR.
7) Remove the BRACKET MOTOR together with the MOTOR DUPLEX (PL 10.1) and SWITCH
DUPLEX.
When removing the BRACKET MOTOR, be careful not to lose the gears attached to the
COVER HSG DUP.
8) Disconnect the connector of the HARNESS ASSY DUP COVER (PL 10.1) from the connector
(P/J52) of the SWITCH DUPLEX.
9) Release the hooks of the SWITCH DUPLEX, and remove it from the BRACKET MOTOR.
Replacement
1) Install the SWITCH DUPLEX to the BRACKET MOTOR with hooks.

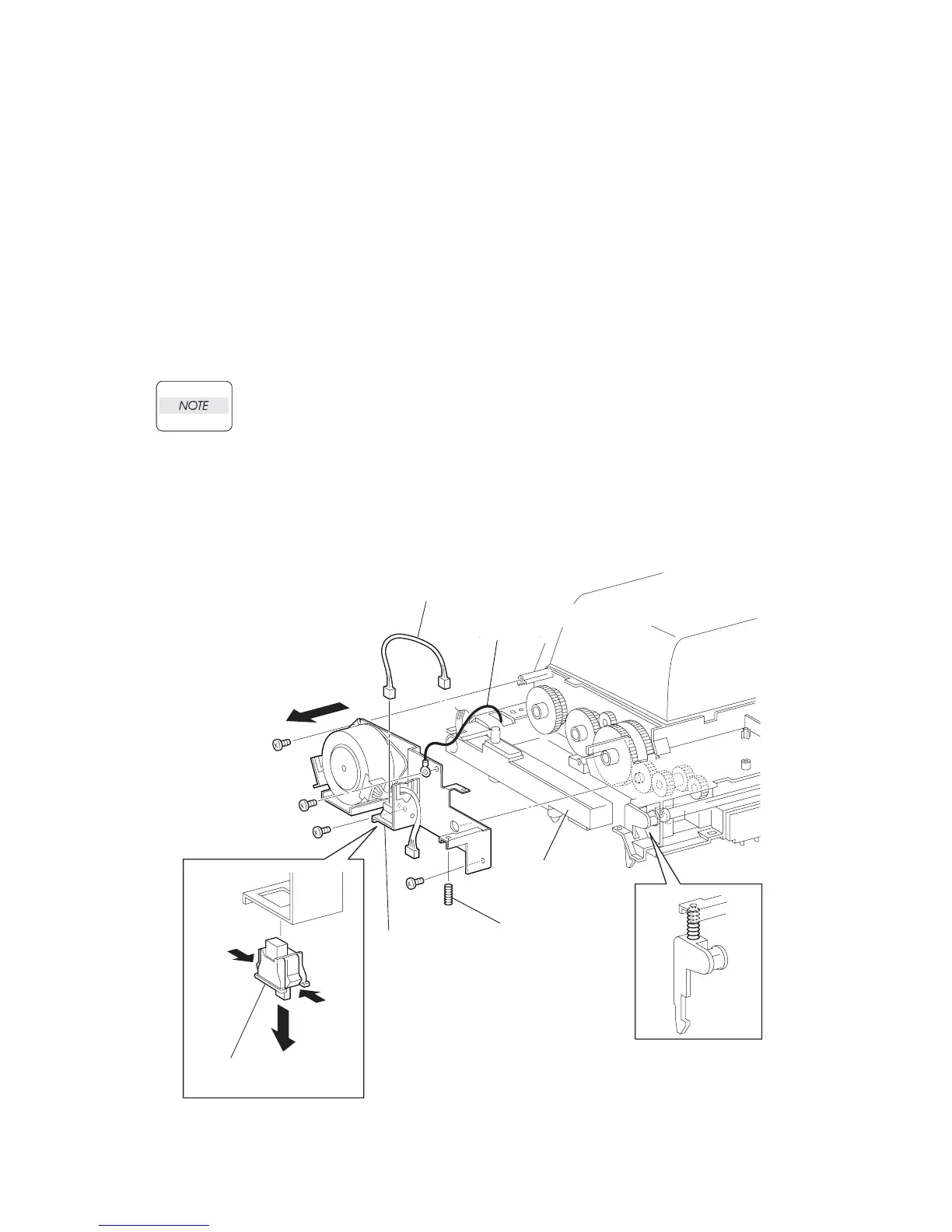

J23617AA
SWITCH DUPLEX
(PL21.1.27)
BRACKET MOTOR
(PL21.1.26)
COVER HSG DUP
(PL21.1.18)
SPRING LATCH
(PL21.1.15)
HARNESS ASSY DUP EARTH
(PL21.1.28)
HARNESS ASSY DUP COVER
(PL21.1.31)
