Oki B6500

3 - 135
Chapter 3 Removal and Replacement Procedures (RRPs)
RRP7.13 ROLL PINCH FUSER, SPRING PINCH FUSER (PL 7.2)
Removal
1) Remove the COVER REAR 500 (PL 7.1) (RRP7.9).
2) Remove the 5 screws (gold tapping, 6mm) securing the CHUTE LOW FU (PL 7.2) to the COVER
REAR 550.
3) Release the hooks of the COVER REAR 550, and remove the CHUTE LOW FU from the COVER
REAR 550.
4) Remove the 2 screws (gold tapping, 6mm) securing the CHUTE UP FU (PL 7.2).
5) Insert a screwdriver between ROLL PINCH FU (PL 7.2) and CHUTE UP FU (PL 7.2), and remove
ROLL PINCH FU (PL 7.2) (Figure 1).
6) Remove the SPRING PINCH FU (PL 7.2) (Figure 1).

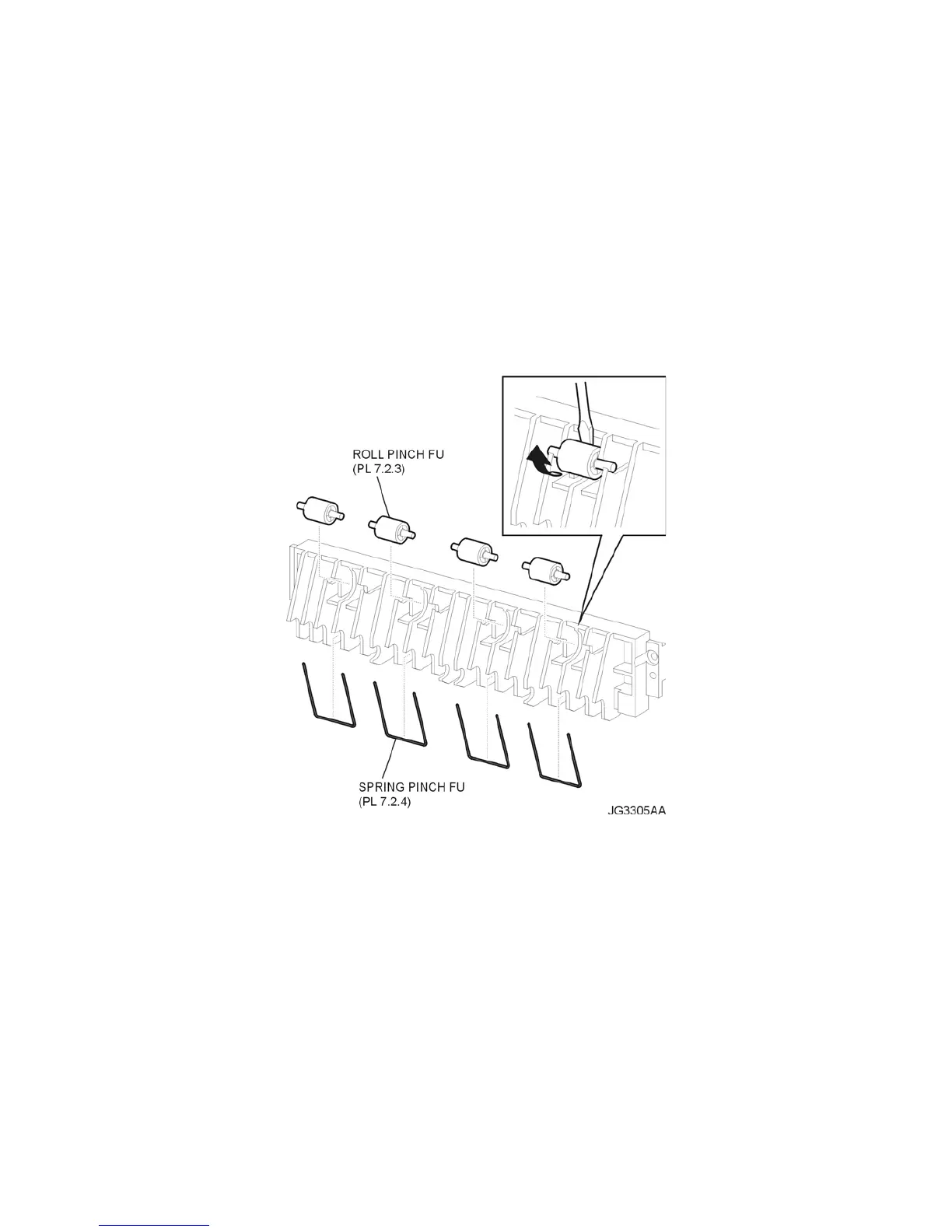

Figure 1. Fuser Pinch Roll & Spring
Replacement
1) Install the SPRING PINCH FU (PL 7.2) (Figure 1).
2) Install the ROLL PINCH FU (PL 7.2) (Figure 1).
3) Install the CHUTE UP FU (PL 7.2) to the CHUTE LOW FU (PL 7.2) using the 4 screws (gold tap-
ping, 6mm).
4) Install the CHUTE LOW FU to the COVER REAR 550, and secure it with the hook.
5) Secure the CHUTE LOW FU to the COVER REAR 550 using the 5 screws (gold tapping, 6mm).
6) Install the COVER REAR 500 (PL 7.1) (RRP7.9).
