Oki B6500 Service Manual

6 – 26
Chapter 6 Principles of Operation
5.6 Drive
GEAR ASSY HOUSING
This housing is composed of gears for transmitting power from the MAIN MOTOR
that drives the printer body to various portions of the printer.
GEAR ASSY PLATE
This transmits power from the MAIN MOTOR to the EP CARTRIDGE.
LEVER LINK
This connects and disconnects the power from the MAIN MOTOR to the FUSER
ASSY. When the COVER OPEN is opened, the LEVER LINK pushes up the Gear
8 in the GEAR ASSY HOUSING, and disconnects the GEAR 9. Thus, the power
path to the FUSER ASSY is disconnected. As the LEVER LINK moves up and
down, the Gear 4 in the GEAR ASSY PLATE moves right and left via the LINK
GEAR 3, and power to the Drum of the EP CARTRIDGE is connected or
disconnected.

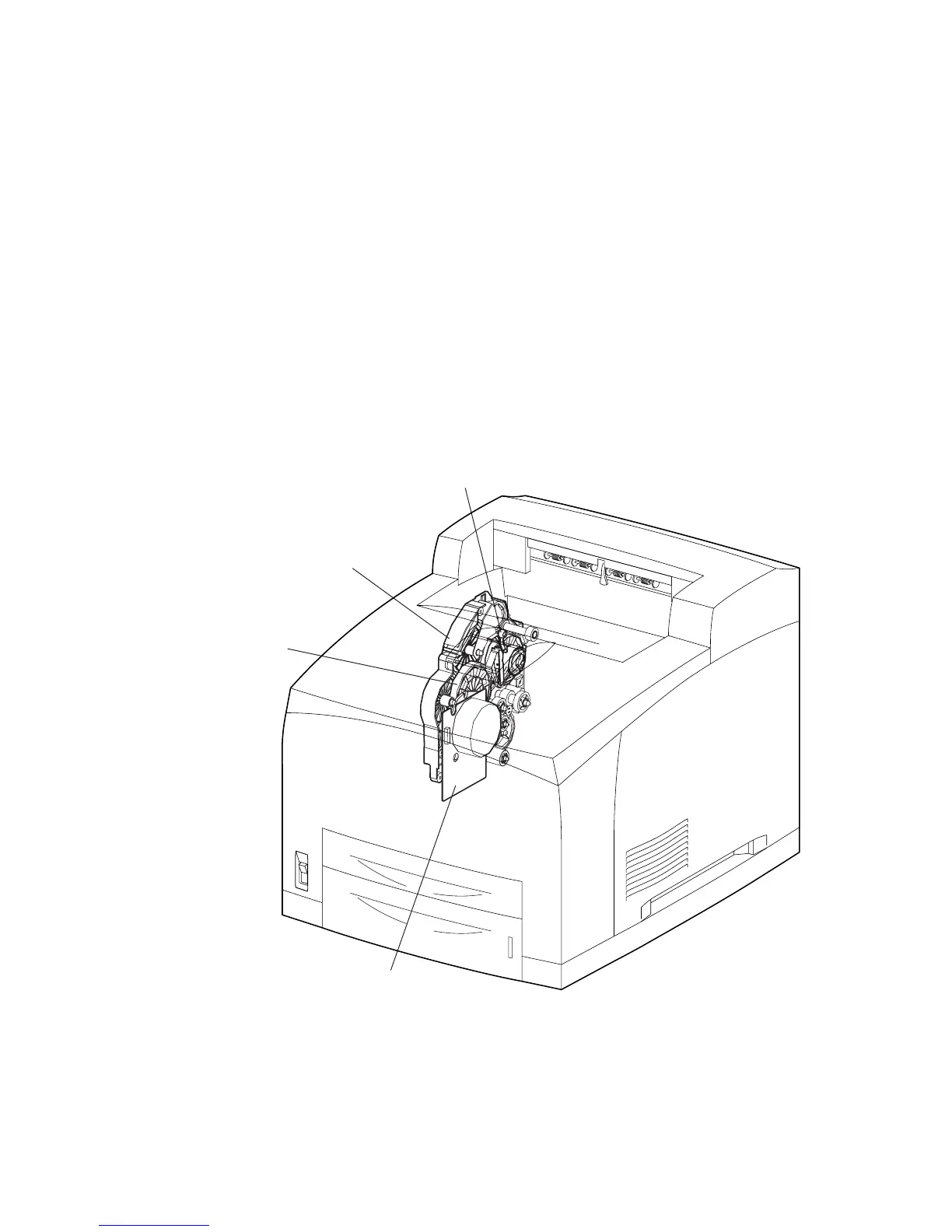

J26124AA
GEAR ASSY HOUSING
LEVER LINK
GEAR ASSY PLATE
MAIN MOTOR

Oki B6500 Specifications

General

Color	No
Duplex printing	Yes
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8 s
Print speed (black, normal quality, A4/US Letter)	45 ppm
Flash memory	512 MB
Storage media	HDD
Internal memory	128 MB
Maximum internal memory	640 MB
Internal storage capacity	40 GB
Total input capacity	700 sheets
Total output capacity	500 sheets
Maximum input capacity	1800 sheets
Power requirements	230V
Standard media sizes	3\
Power consumption (active)	880 W
Compatible operating systems	Windows, XP (Home, Professional); 2000 (Workstation, Professional, Server, Advanced Server – SP4 +); NT 4.0 (Workstation, Server – SP6 +); ME; 98/98 SE; Mac OS 9.1+/10.1+; Unix (Sun Solaris 8, 7, 2.5; HP-UX 11.0/ 10.20); Linux (Redhat 6.x).
Envelopes sizes	C5, DL
Media weight (tray 1)	60 - 216 gsm
Non-ISO print media sizes	Executive (184 x 267mm), index card, Letter (media size), Statement (140 x 216mm), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
PCL fonts	86
Printer fonts	PCL, PostScript
Maximum duty cycle	200000 pages per month
Number of PostScript fonts	136
Power consumption (standby)	110 W
Power consumption (printing)	1200 W

Weight and Dimensions

Dimensions (WxDxH)	422 x 465 x 404 mm
