Chapter 3 Removal and Replacement Procedures (RRPs)
RRP12.550 Paper Feeder Option
RRP12.1 550 Paper Feeder Option
Removal
1) Remove the EP CARTRIDGE.
2) Pull out the 250 PAPER CASSETTE or 550 PAPER CASSETTE from the 2nd tray of the
printer.
3) Remove the 550 PAPER CASSETTE from the Option 550 Paper Feeder.
4) Remove 2 JOINT FEEDERs (PL 12.1) at the rear of the printer securing the printer and the
Option 550 Paper Feeder.
5) Remove 2 JOINT FEEDERs inside the tray insertion space.
6) Lift and remove the printer from the Option 550 Paper Feeder, and put it aside.

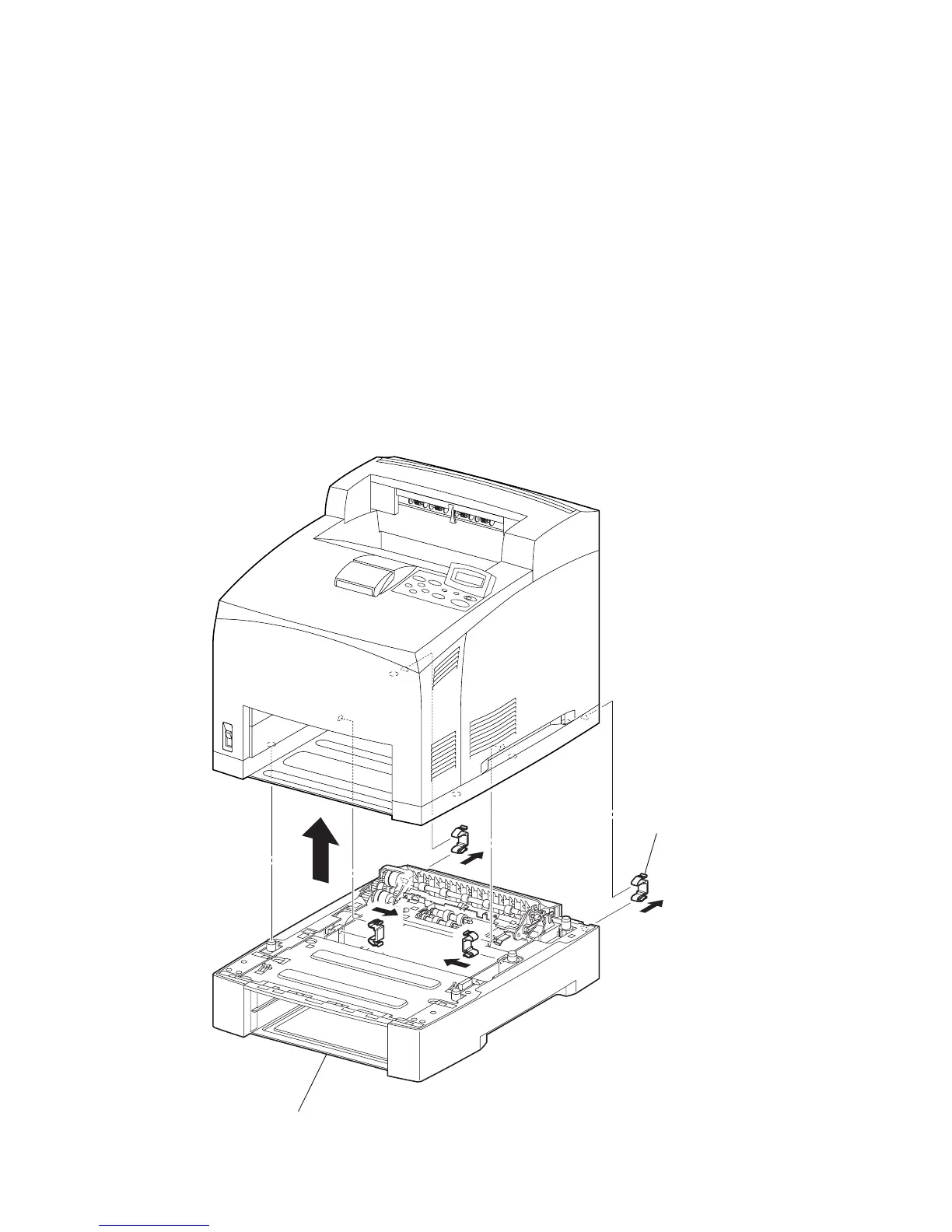

JOINT FEEDER
(PL20.1.38)
J23501AA
Option 550 Paper Feeder
To Next Page
