Chapter 3 Removal and Replacement Procedures (RRPs)

RRP7.9 COVER REAR 500 (PL 7.1)

Removal

1) Pinch the lever to release the lock, and open the COVER REAR 500 (Figure 1).

2) Move the STOPPER FSR in the arrow direction to remove (Figure 1).

3) Release the hook of the right side boss of the COVER REAR 500, and shift the COVER REAR 500

in the direction of the arrow to remove from the printer (Figure 1).

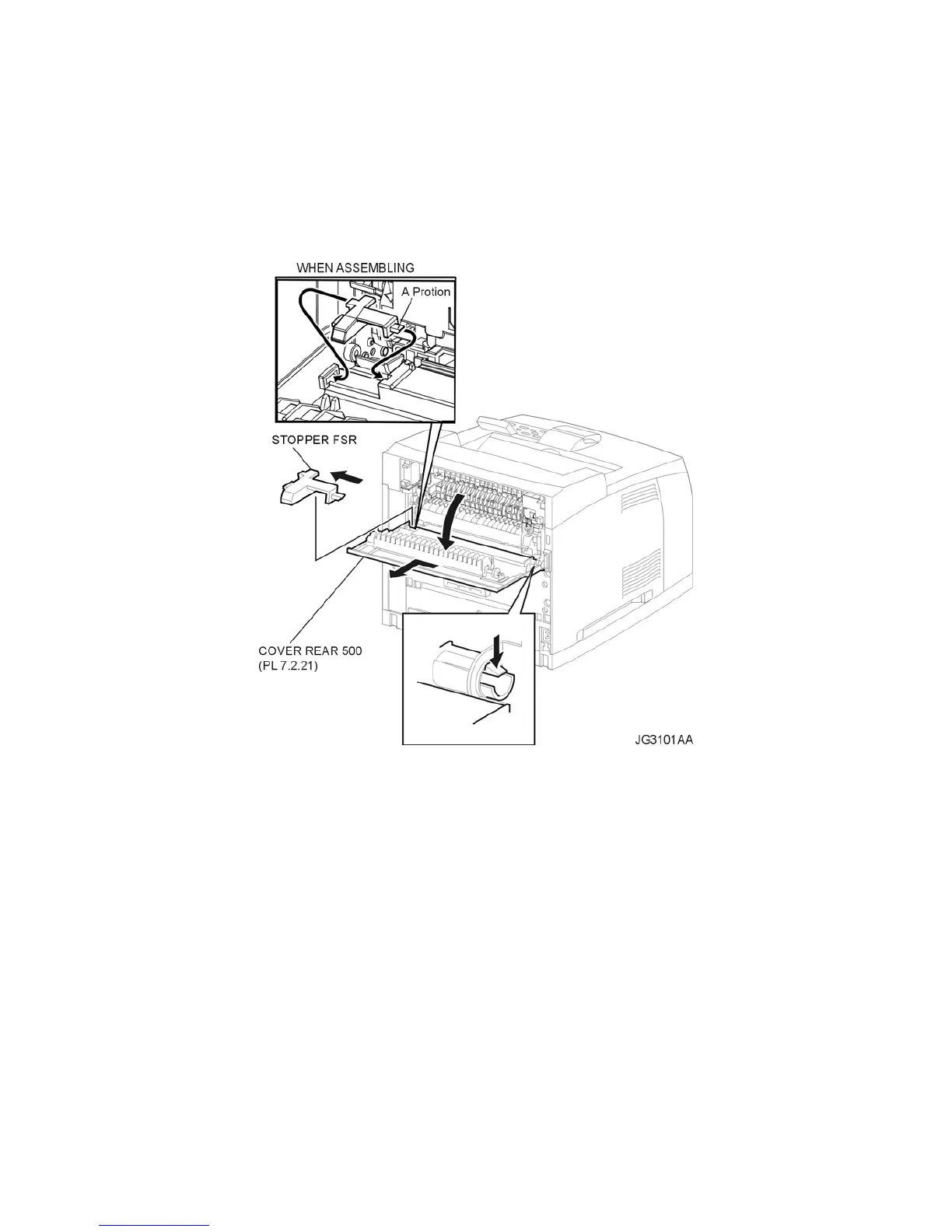

Figure 1. 500 Rear Cover

Replacement

1) Shift the COVER REAR 500 in the opposite direction of the arrow to install, and secure it with the

hook (Figure 1).

2) Insert the A portion of the STOPPER FSR into the COVER REAR 500 first, and then insert the

opposite side (Figure 1).

3) Close the COVER REAR 500.
