Chapter 3 Removal and Replacement Procedures (RRPs)
RRP10.7 SENSOR DUP (PL10.1)
Removal
1) Remove the COVER RIGHT (PL 10.1). (RRP10.10)
2) Remove the COVER TOP (PL 10.1). (RRP10.4)
3) Release the hooks of the SENSOR DUP, and remove it from the COVER HSG DUP (PL 10.1).
4) Disconnect the connector (P/J530) of the HARNESS ASSY DUP SNR (PL 10.1) form the SEN-
SOR DUP.
Replacement
1) Connect the connector (P/J 530) of the HARNESS ASSY DUP SNR (PL 10.1) to the SENSOR
DUP.
2) Install the SENSOR DUP to the COVER HSG DUP (PL 10.1), and secure it with the hooks.
3) Install the COVER TOP (PL 10.1). (RRP10.4)
When installing, be sure to fit the positioning holes on the COVER TOP to the bosses on
the COVER HSG DUP.
4) Install the COVER RIGHT (PL 10.1). (RRP10.10)
When installing, be sure to fit the positioning holes on the COVER RIGHT to the bosses
on the COVER HSG DUP.

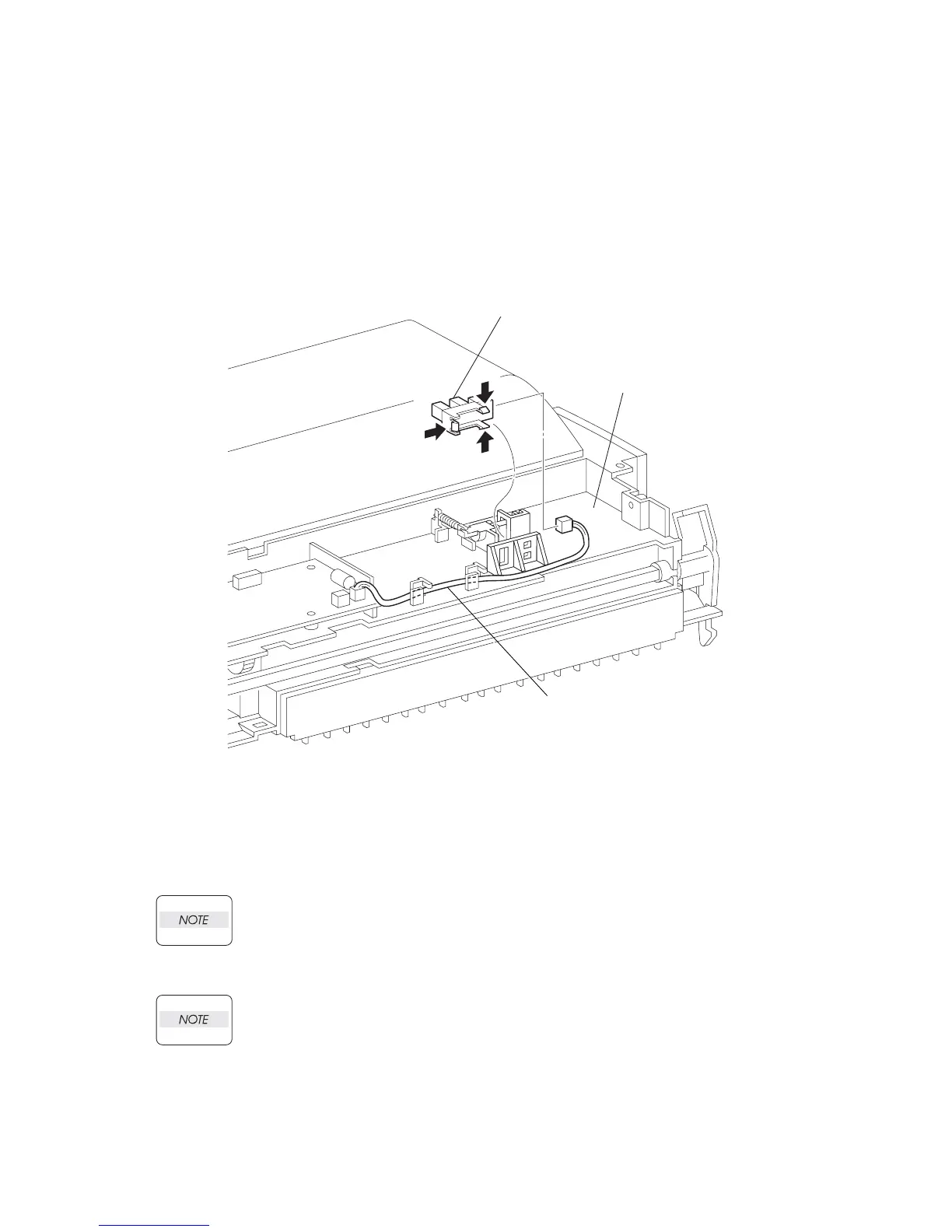

J23607AA
SENSOR DUP
(PL21.1.34)
HARNESS ASSY DUP SNR
(PL21.1.35)
COVER HSG DUP
(PL21.1.18)
To Next Page
