Chapter 3 Removal and Replacement Procedures (RRPs)
RRP12.8 PWBA FEEDER 550 (PL12.1)
Removal
1) Remove the COVER RIGHT PLATE (PL 12.1.1). (RRP12.2)
2) Disconnect the harness connectors from the connectors (P/J80, P/J81, P/J82, P/J83, P/J84
and P/ J85) on the PWBA FEEDER 550.
3) Remove the 2 screws (gold tapping, 8mm) securing the PWBA FEEDER 550 to the frame.
4) Remove the PWBA FEEDER 550.
Replacement
1) Install the PWBA FEEDER 550 to the frame using the 2 screws (gold tapping, 8mm).

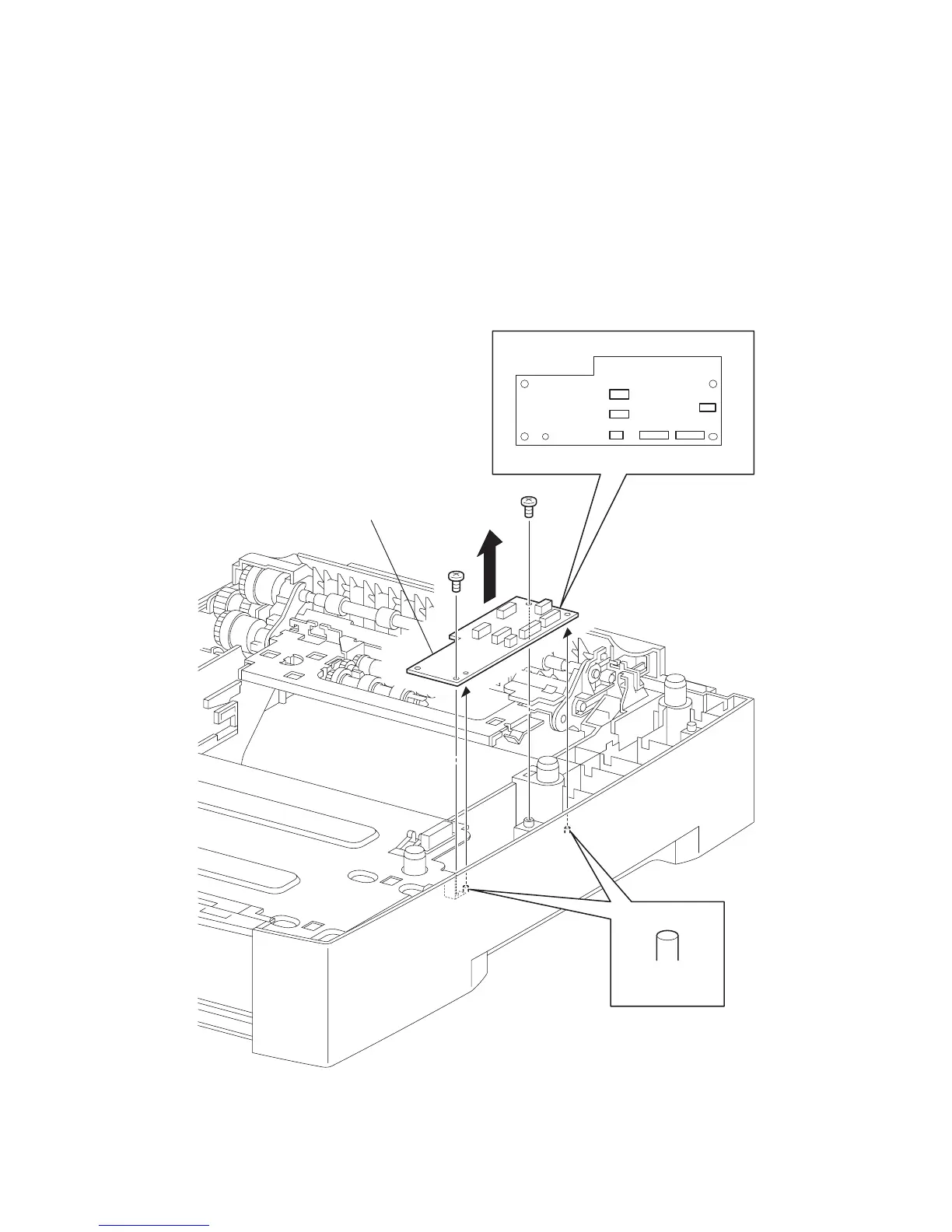

JG3509AA
PWBA FEEDER 550
(PL20.1.34)
P/J82
85
81 84 83
80
BOSS
To Next Page
