Oki B6500

3 - 166
Chapter 3 Removal and Replacement Procedures (RRPs)
RRP10.3 HSG LOWER DUP (PL10.1)
Removal
1) Remove the COVER LEFT (PL 10.1). (RRP10.9)
2) Remove the COVER RIGHT (PL 10.1). (RRP10.10)
3) Disconnect the connector (P/J50) of the HARNESS ASSY DUP (PL 10.1) from the PWBA
DUPLEX (PL 10.1).
4) Remove the screw (silver, 6mm) securing the HARNESS ASSY DUP EARTH (PL 10.1).
5) Release the HARNESS ASSY DUP from the harness clamp.
6) Remove the SCREW TAPPING (PL 10.1) securing the SPRING DUMPER (PL 10.1).
7) Remove the 2 SCREW HINGEs (PL 10.1) securing the HSG LOWER DUP, and remove the
HSG LOWER DUP from the COVER HSG DUP (PL 10.1).

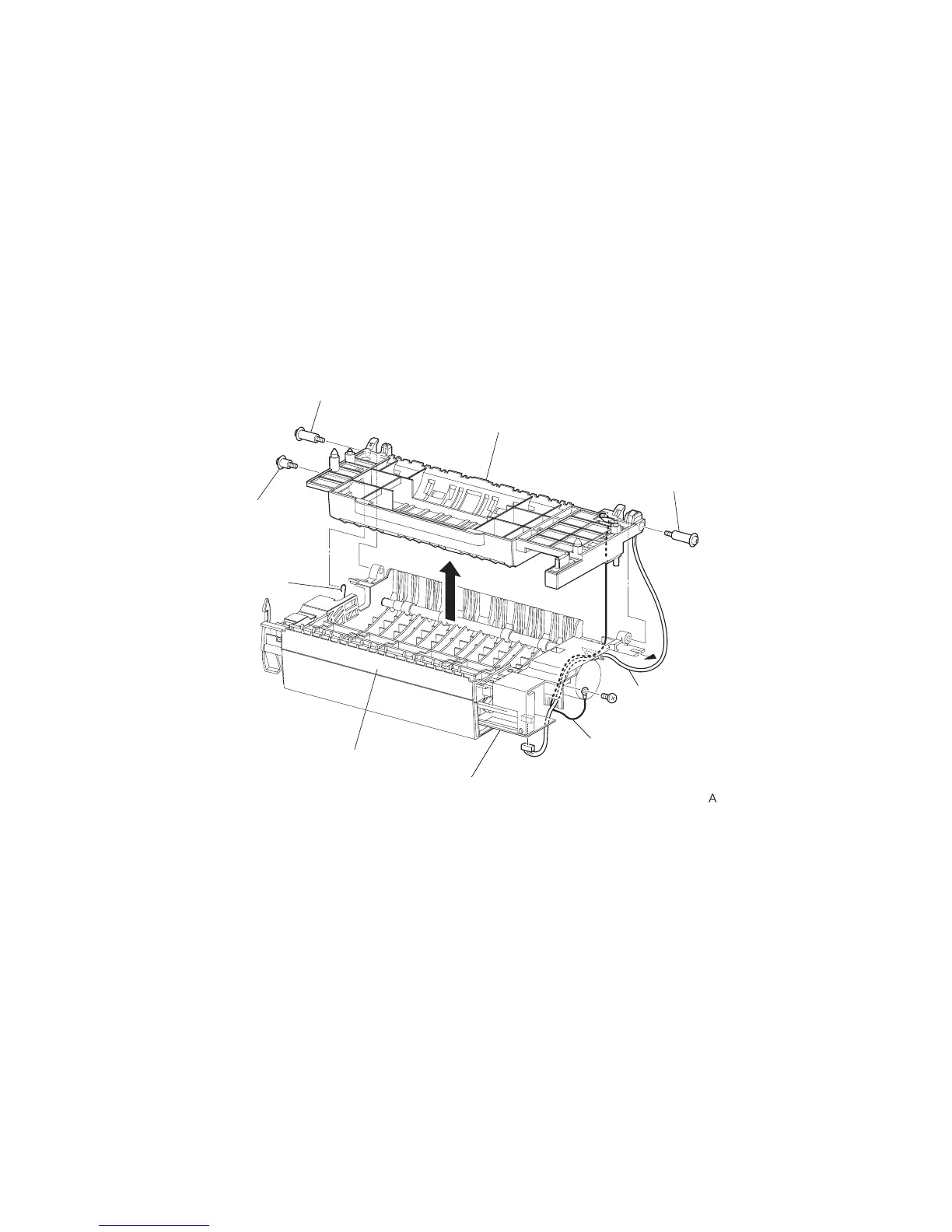

HSG LOWER DUP
(PL21.1.6)
SCREW HINGE
(PL21.1.11)
COVER HSG DUP
(PL21.1.18)
J23614A
SCREW HINGE
(PL21.1.11)
SCREW TAPPING
(PL21.1.40)
SPRING DAMPER
(PL21.1.39)
HARNESS ASSY DUP EARTH
(PL21.1.28)
HARNESS ASSY
DUP (PL21.1.7)
PWBA DUPLEX
(PL21.1.32)
