Chapter 3 Removal and Replacement Procedures (RRPs)

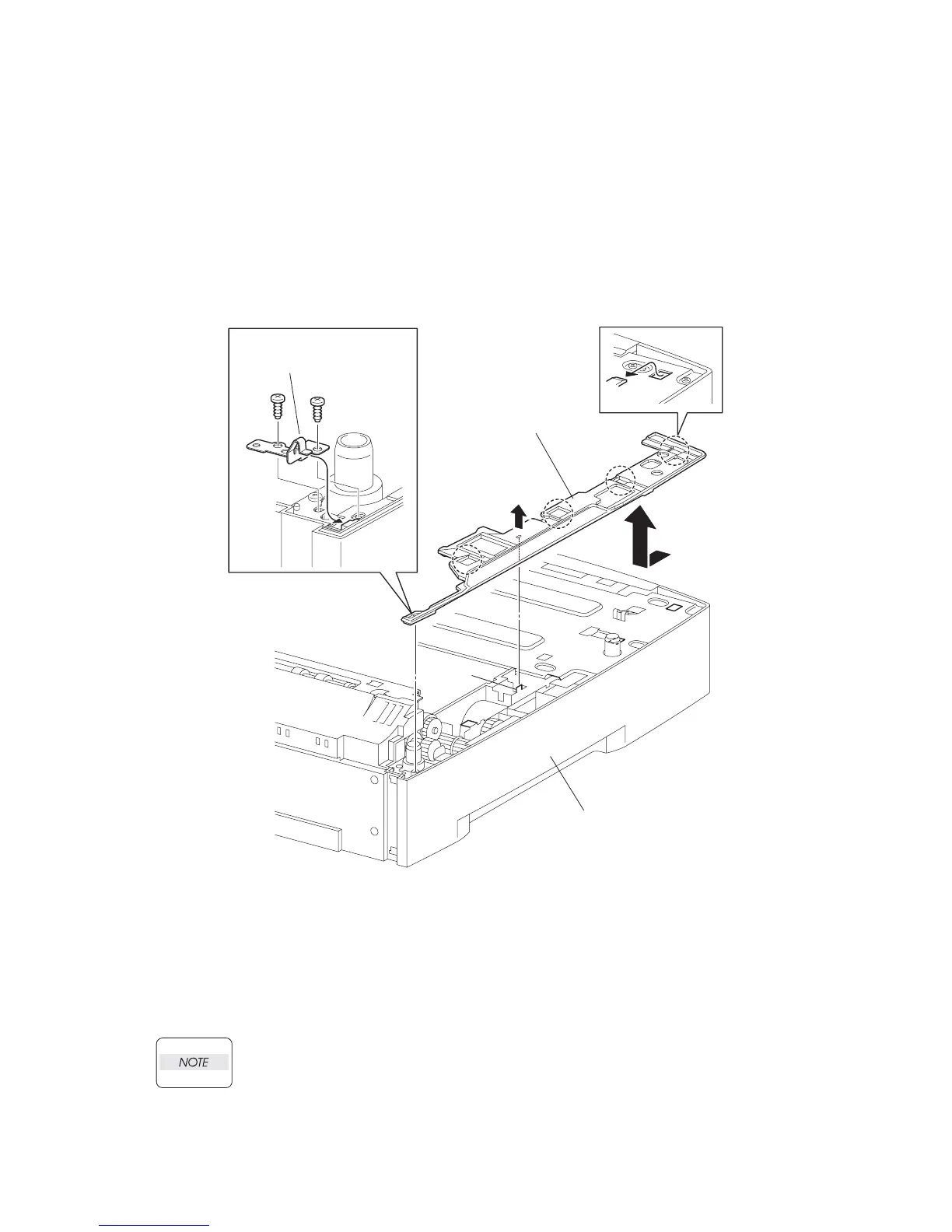

RRP12.3 COVER LEFT PLATE (PL12.1)
Removal
1) Remove the 2 screws (gold tapping, 8mm) securing the EARTH PLATE (PL 12.1) to the frame.
2) Remove the EARTH PLATE.
3) Lift up the COVER LEFT PLATE just above the boss of the FRAME CVR L550 (PL 12.1) a little
to release them.
4) Shift the COVER LEFT PLATE in the direction of the arrow to release the 4 hooks of the
FRAME CVR L550, and remove the COVER LEFT PLATE from the Option 550 Paper Feeder.
Replacement
1) Shift the COVER LEFT PLATE in the opposite direction of the arrow to engage the 4 hooks of
the FRAME CVR L550 (PL 12.1) with the COVER LEFT PLATE.
2) Put the boss of the FRAME CVR L550 into the hole of the COVER LEFT PLATE.
3) Secure the EARTH PLATE (PL 12.1) to the frame using the 2 screws (gold tapping, 8mm).
When installing the EARTH PLATE, be sure to install the tip of the EARTH PLATE under
the COVER LEFT PLATE.
FRAME CVR L550
(PL20.1.21)
COVER LEFT PLATE
(PL20.1.3)
EARTH PLATE
(PL20.1.4)
BOSS
JG3503AA
