Chapter 3 Removal and Replacement Procedures (RRPs)
RRP10.6 COVER REAR (PL10.1), FAN DUPLEX (PL10.1)
Removal
1) Remove the COVER RIGHT (PL 10.1). (RRP10.10)
2) Remove the COVER TOP (PL 10.1). (RRP10.4)
3) Disconnect the harness connector from the connector (P/J54) on the PWBA DUPLEX (PL
10.1).
4) Release the harness of the FAN DUPLEX from the hook on the COVER HSG DUP (PL 10.1).
5) Remove the 4 screws securing the COVER REAR to the COVER HSG DUP and remove the
COVER REAR.
6) Remove the 2 screws (gold tapping, 22mm) securing the FAN DUPLEX to the COVER REAR
and remove the FAN DUPLEX.

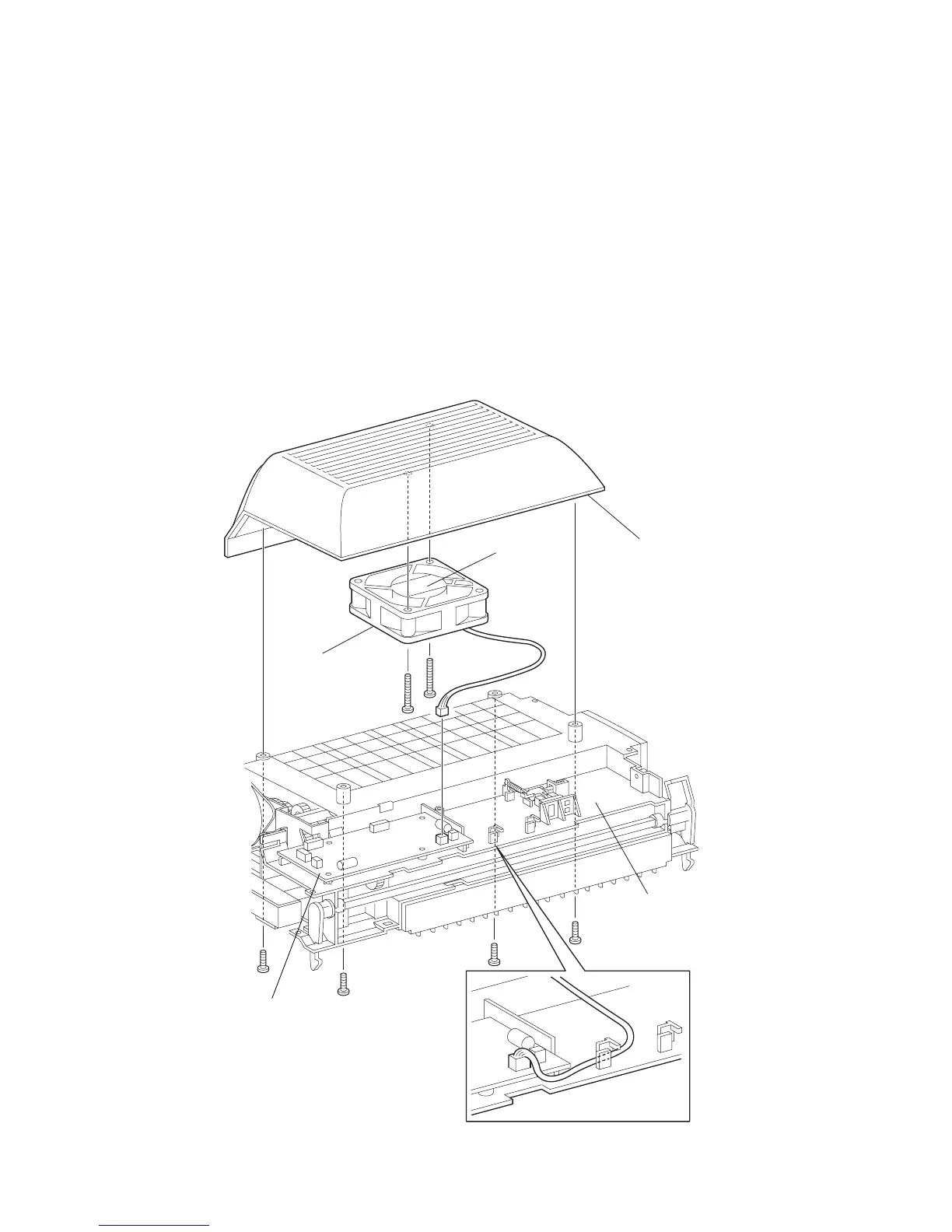

FAN DUPLEX
(PL21.1.33)
COVER HSG DUP
(PL21.1.18)
COVER REAR
(PL21.1.45)
LABEL
J23606AA
PWBA DUPLEX
(PL21.1.32)
