3 - 132
Chapter 3 Removal and Replacement Procedures (RRPs)
RRP7.11 LEVER GATE HOLDER,SPRING LEVER GATE, LEVER GATE FU (PL 7.2)
Removal
1) Remove the COVER REAR 500 (PL 7.1) (RRP7.9).
2) Remove the 5 screws (gold tapping, 6mm) securing the CHUTE LOW FU (PL 7.2) to the COVER
REAR 550.
3) Release the hooks of the COVER REAR 550, and remove the CHUTE LOW FU from the COVER
REAR 550.
4) Remove the ROLL FU (PL 7.2) (RRP7.10).
5) Remove the LEVER GATE FU (PL 7.2) by rotating (Figure 1).
LEVER GATE HOLDER (PL 7.2), SPRING LEVER GATE (PL 7.2), and LEVER GATE FU
(PL 7.2) are removed at the same time.
6) Bend LEVER GATE FU (PL 7.2), and remove it from LEVER GATE HOLDER (PL 7.2) (Figure 1).
SPRING LEVER GATE (PL 7.2) remains on the side of LEVER GATE HOLDER (PL 7.2)
(Figure 1).
7) Remove the SPRING LEVER GATE (PL 7.2) (Figure 1).

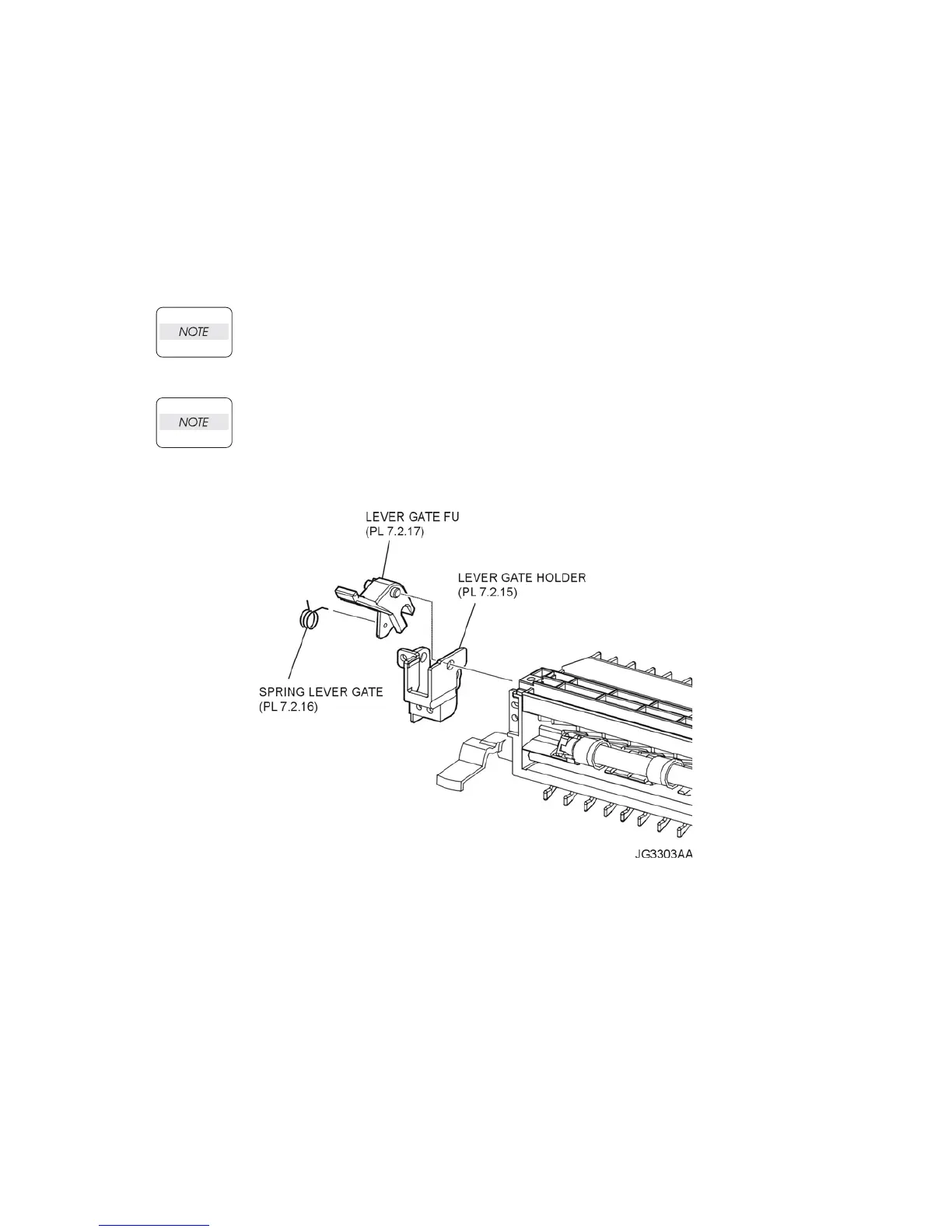

Figure 1. Lever Gate Holder & Spring
Replacement
1) Install the ROLL FU to the BEARING EXIT (PL 7.2) on the opposite side of the GEAR 21 (PL 7.2)
by shifting the ROLL FU in the opposite direction of the arrow (Figure 1).
2) Install the BEARING EXIT to the CHUTE LOW FU (PL 7.2).
3) Install the GEAR 21 to the ROLL FU, and secure it with the hook.
4) Install the ROLL FU (PL 7.2) (RRP7.10).
5) Install the CHUTE LOW FU to the COVER REAR 550, and secure it with the hook.
6) Secure the CHUTE LOW FU to the COVER REAR 550 using the 5 screws (gold tapping, 6mm).
7) Install the COVER REAR 500 (PL 7.1) (RRP7.9).
