Chapter 3 Removal and Replacement Procedures (RRPs)
RRP11.2 COVER REAR (PL11.1)
Removal
1) Move the COVER REAR in the direction of the arrows, and remove the bosses on both sides of
the COVER REAR from the COVER OCT (PL 11.1), and then remove the COVER REAR.
Replacement
1) Move the COVER REAR in the opposite direction of the arrows, and insert the bosses on both
side of the COVER REAR to the COVER OCT (PL 11.1)

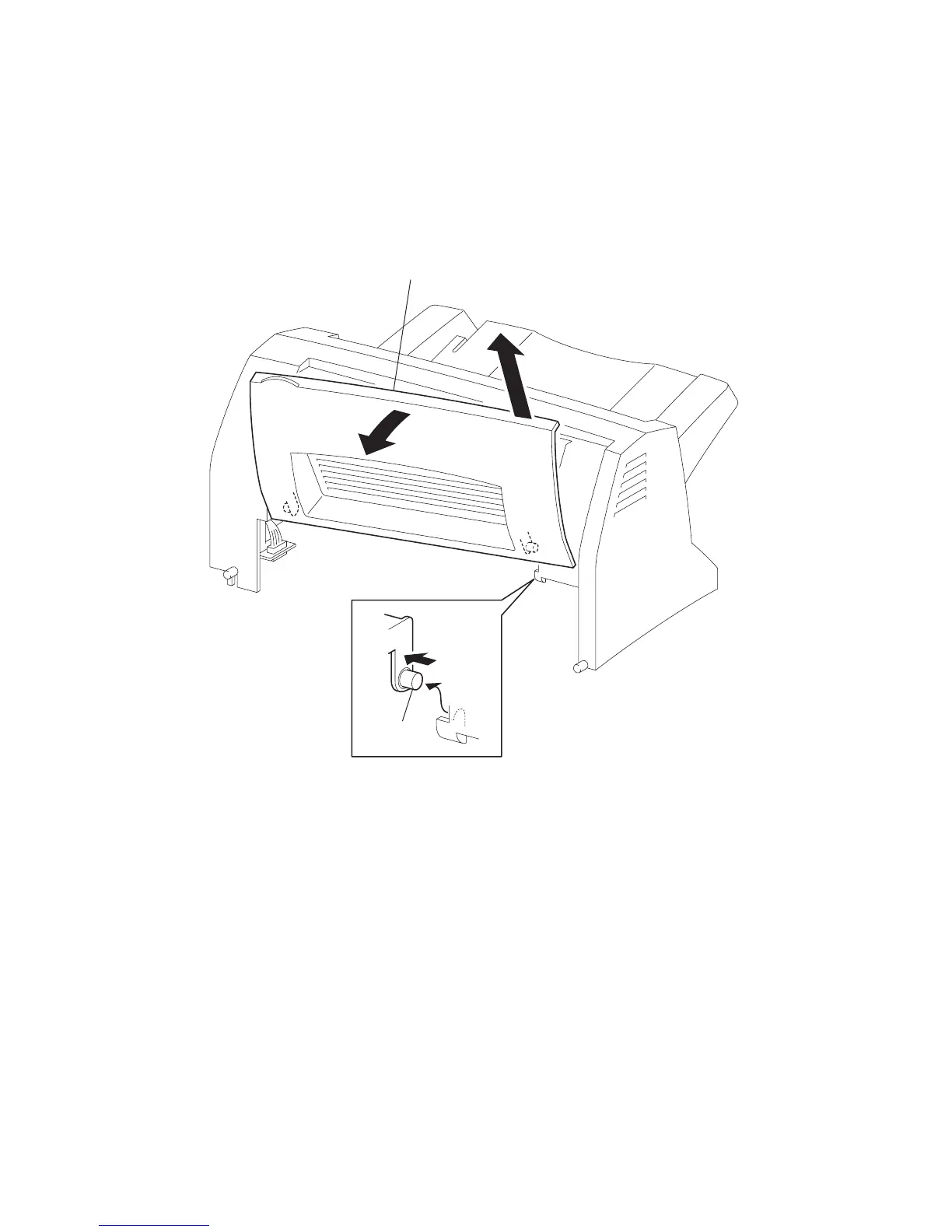

COVER REAR
(PL23.1.4)
JG3802AA
BOSS
