Oki B6500 Service Manual

3 - 131
Chapter 3 Removal and Replacement Procedures (RRPs)
RRP7.10 FUSER ROLL (FU) (PL 7.2)
Removal
1) Remove the COVER REAR 500 (PL 7.1) (RRP7.9).
2) Remove the 5 screws (gold tapping, 8mm) securing the CHUTE LOW FU (PL 7.2) to the COVER
REAR 500 (Figure 1).
3) Release the hooks of the COVER REAR 550, and remove the CHUTE LOW FU from the COVER
REAR 500 (Figure 1).
4) Release the hook of the GEAR 21 (PL 7.2), and remove it from the ROLL FU (Figure 1).
5) Release the hook of the BEARING EXIT (PL 7.2), and remove it from the CHUTE LOW FU (Figure
1).
Be careful handling the hook of the BEARING EXIT. It is fragile and could break if given
excessive force.
6) Remove the ROLL FU in the direction of the arrow (Figure 1).

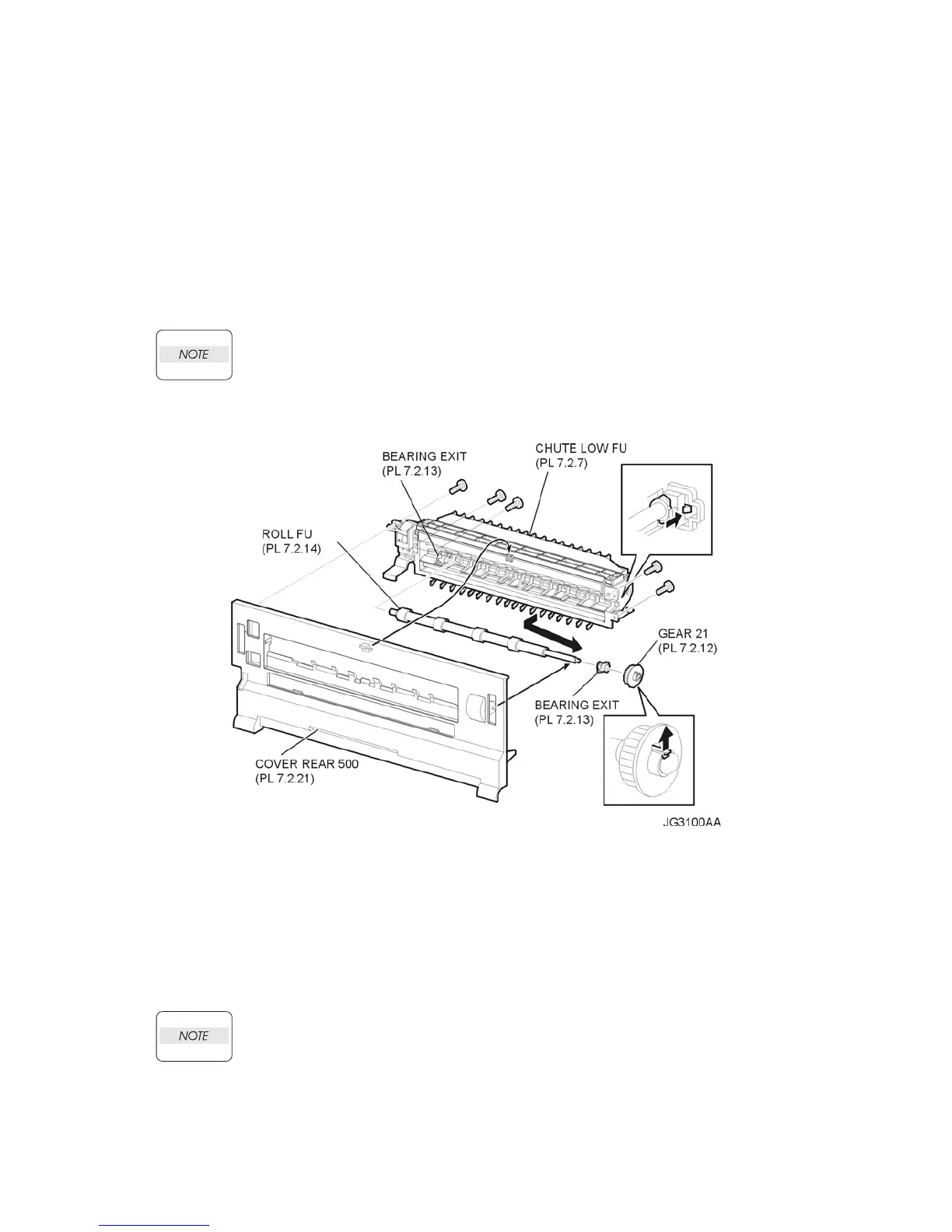

Figure 1. Fuser Roll
Replacement
1) Install the ROLL FU to the BEARING EXIT (PL 7.2) on the opposite side of the GEAR 21 (PL 7.2)
by shifting the ROLL FU in the opposite direction of the arrow (Figure 1).
2) Install the BEARING EXIT to the CHUTE LOW FU (PL 7.2) (Figure 1).
3) Install the GEAR 21 to the ROLL FU, and secure it with the hook (Figure 1).
Be sure to install the hook of the GEAR 21 into the groove of the ROLL FU.
4) Install the CHUTE LOW FU to the COVER REAR 550, and secure it with the hook (Figure 1).
5) Secure the CHUTE LOW FU to the COVER REAR 550 using the 5 screws (gold tapping, 8mm).
6) Install the COVER REAR 500 (PL 7.1) (RRP7.9).
