3 - 229
Chapter 3 Removal and Replacement Procedures (RRPs)
RRP12.11CLUTCH ONEWAY NUDGER (PL12.2)
Removal
1) Remove the ROLL ASSY FEED (PL 12.2.12). (RRP12.10)
2) Pull out the CLUTCH ONEWAY FEED (PL 12.2.13) from the SHAFT FEED (PL 12.2.16).
3) Remove the E-ring securing the CLUTCH ONEWAY NUDGER to the SHAFT FEED.
4) Pull out the CLUTCH ONEWAY NUDGER from the SHAFT FEED.
Replacement
1) Install the CLUTCH ONEWAY NUDGER to the SHAFT FEED (PL 12.2.16).
2) Clip the E-ring to the SHAFT FEED to secure the CLUTCH ONEWAY NUDGER.
3) Install the CLUTCH ONEWAY FEED (PL 12.2.13) to the SHAFT FEED.
4) Install the ROLL ASSY FEED (PL 12.2.12). (RRP12.10)
Be sure to install the hook of the ROLL ASSY FEED into the groove of the SHAFT FEED.

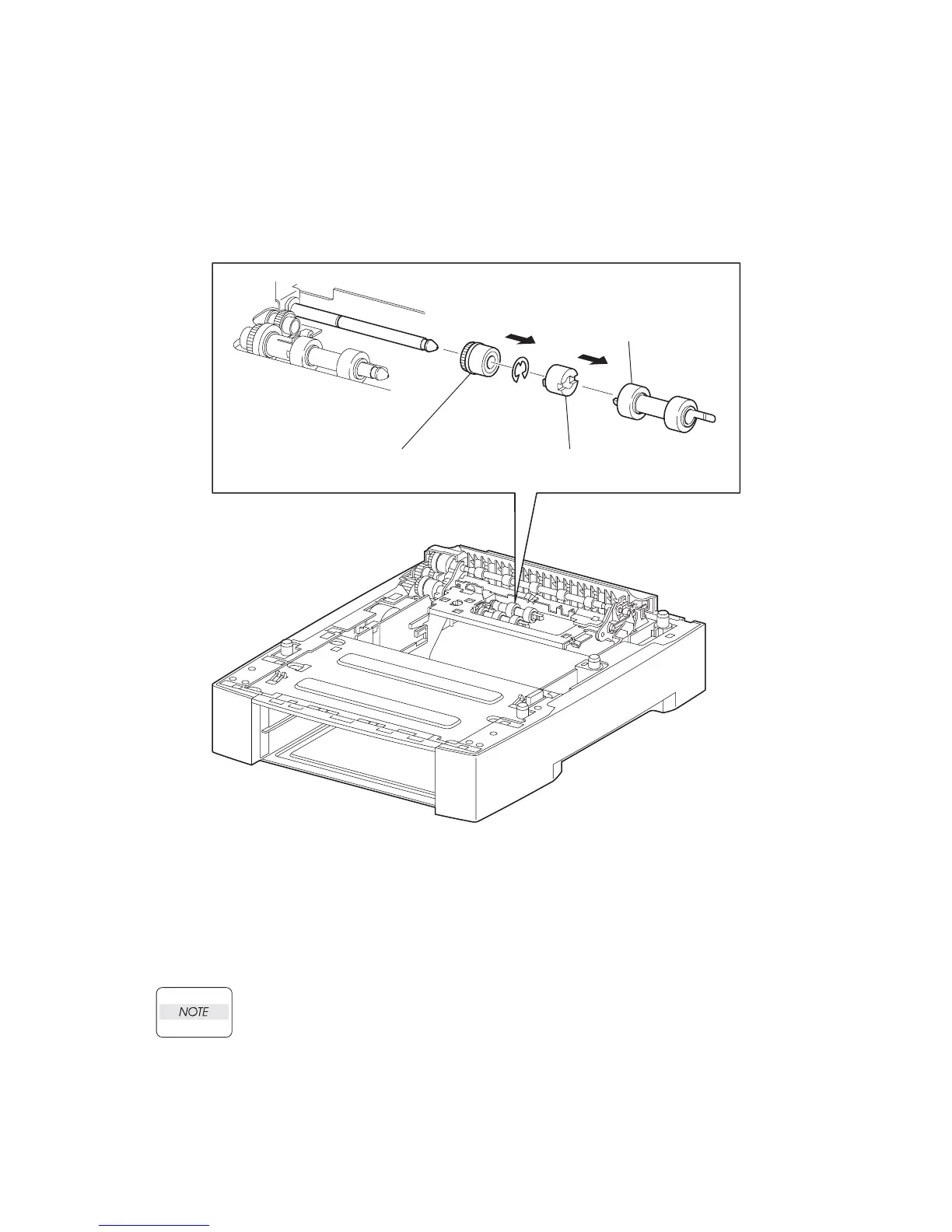

ROLL ASSY FEED
(PL20.2.12)
CLUTCH ONEWAY FEED
(PL20.2.13)
CLUTCH ONEWAY NUDGER
(PL20.2.15)
JG3512AA
To Next Page
