Chapter 3 Removal and Replacement Procedures (RRPs)
RRP6.8 FUSER ASSEMBLY (PL 6.1)
Removal
Before performing the following procedures, make sure that the FUSER ASSEMBLY has
cooled.
1) Open the COVER REAR 500 (PL 7.1).
2) Push down the LEVER FUSER LH (PL 6.1) and LEVER FUSER RH (PL 6.1) in the direction of the
arrow to release the lock of the FUSER ASSEMBLY (Figure 1).
3) Shift the FUSER ASSEMBLY in the direction of the arrow, and remove it from the printer (Figure
1).

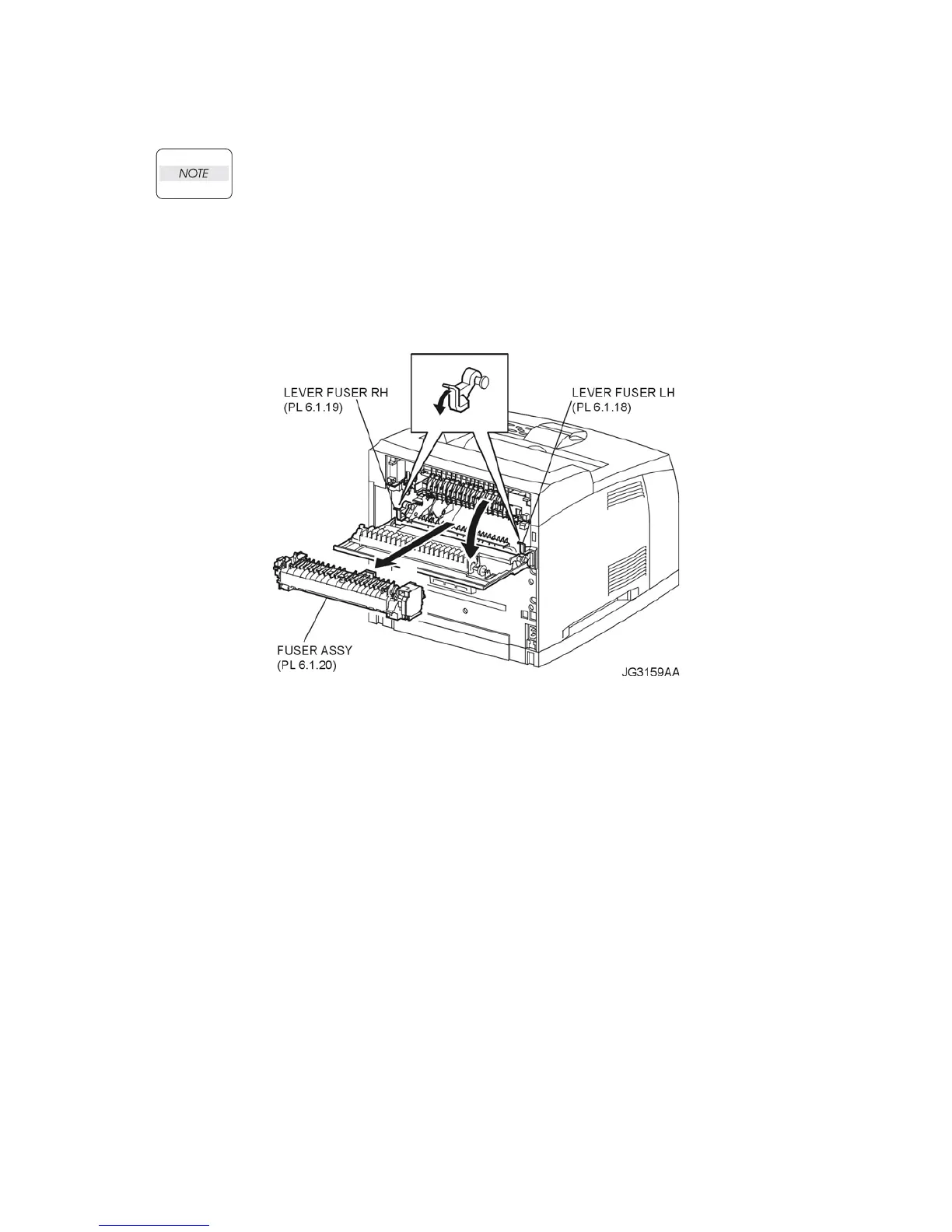

Figure 1. Fuser Assembly
Replacement
1) Shift the FUSER ASSEMBLY in the opposite direction of the arrow, and install it to the printer (Fig-
ure 1).
2) Lock the FUSER ASSEMBLY by pulling up the LEVER FUSER LH (PL 6.1) and LEVER FUSER
RH (PL 6.1) (Figure 1).
3) Close the COVER REAR 500 (PL 7.1).
