RRP9.1 SHIELD PLATE LVPS (PL 9.1)
Removal
1) Remove the COVER REAR 500 (PL 7.1) (RRP7.9).
2) Remove the COVER REAR (PL 1.1) (RRP1.1).
3) Remove the COVER LEFT (PL 1.1) (RRP1.3).
4) Remove the COVER RIGHT (PL 1.1) (RRP1.2).
5) Remove the COVER EXIT 500 (PL 1.1) (RRP7.1).
6) Remove the 500 EXIT ASSEMBLY (PL 7.1) (RRP7.2).
7) Remove the COVER TOP (PL 1.1) (RRP1.4).
8) Remove the COVER FRONT (PL 1.1) (RRP1.5).
9) Remove the 8 screws (silver, 6mm) securing the SHIELD PLATE LVPS to the frame (Figure 1).
10) Remove the SHIELD PLATE LVPS (Figure 1).

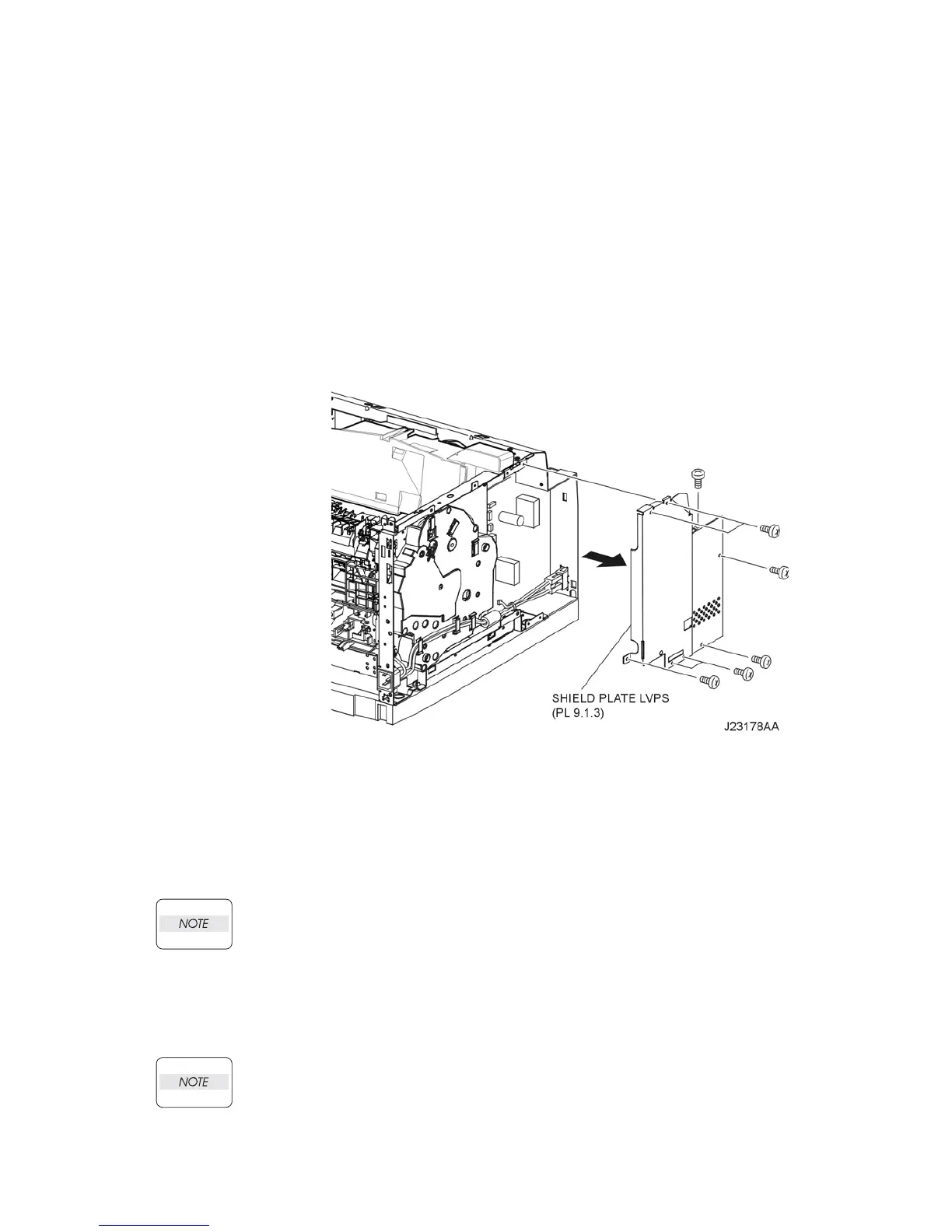

Figure 1. LVPS Shield Plate
Replacement
1) Install the SHIELD PLATE LVPS to the frame using the 8 screws (silver, 6mm) (Figure 1).
2) Install the COVER FRONT (PL 1.1) (RRP1.5).
3) Install the COVER TOP (PL 1.1) (RRP1.4).
4) Install the 500 EXIT ASSEMBLY (PL 7.1) (RRP7.2).
When installing, pull the CHUTE EXIT FUSER lever.
5) Install the COVER EXIT 500 (PL 1.1) (RRP7.1).
6) Install the COVER RIGHT (PL 1.1) (RRP1.2).
7) Install the COVER LEFT (PL 1.1) (RRP1.3).
8) Install the COVER REAR (PL 1.1) (RRP1.1).
There are 2 kinds of screws, make sure they are installed correctly.
9) Install the COVER REAR 500 (PL 7.1) (RRP7.9).
