Chapter 3 Removal and Replacement Procedures (RRPs)
RRP9.7 SHIELD ASSEMBLY ESS (PL 9.1)
Removal
1) Remove the COVER RIGHT (PL 1.1) (RRP1.2).
2) Remove the 12 screws (silver, 6mm) securing the SHIELD ASSEMBLY ESS to the frame (Figure
1).
3) Remove the SHIELD ASSEMBLY ESS.

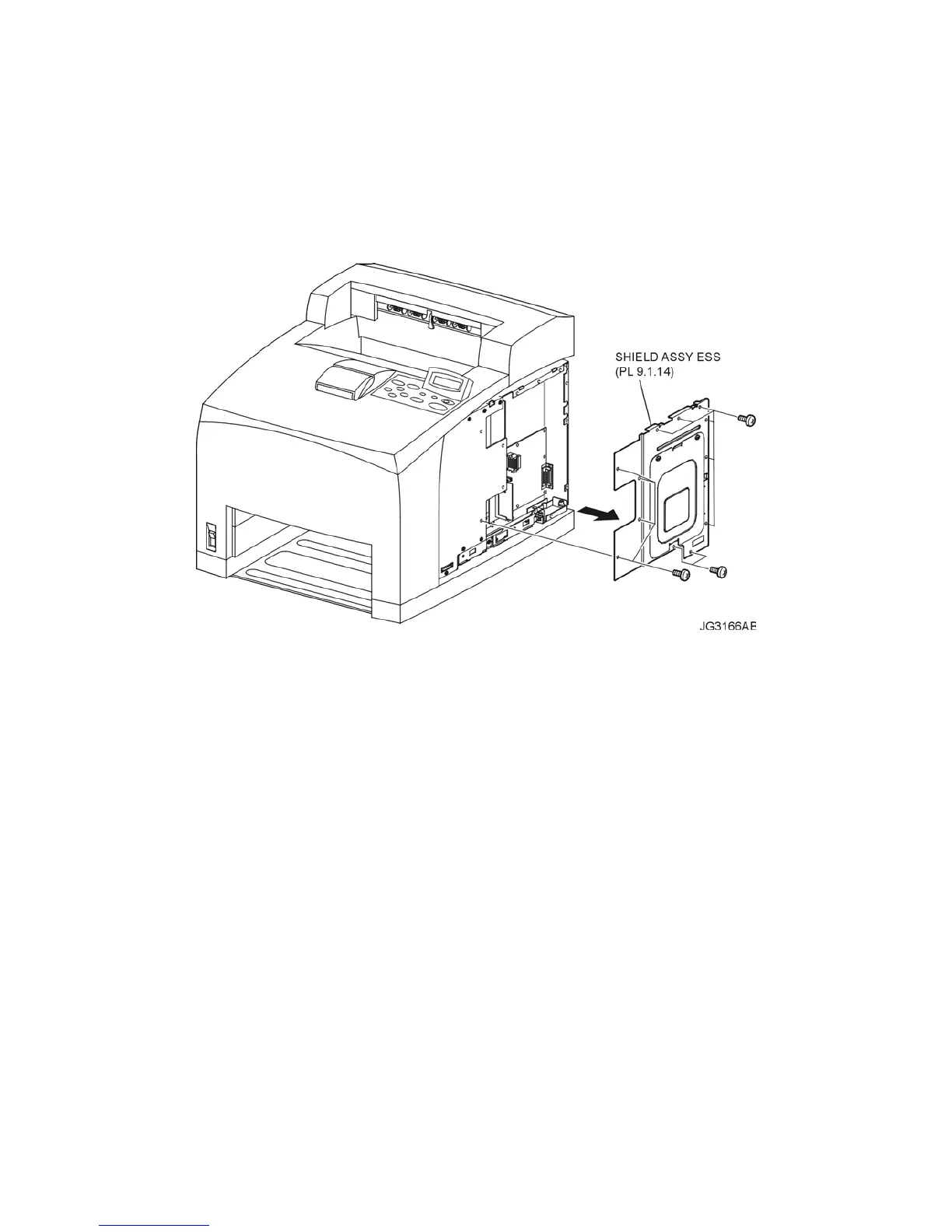

Figure 1. ESS Shield Assembly
Replacement
1) Install the SHIELD ASSEMBLY ESS to the frame using the 12 screws (silver, 6mm) (Figure 1).
2) Install the COVER RIGHT (PL 1.1) (RRP1.2).
