Oki B6500 Service Manual

3 - 143
Chapter 3 Removal and Replacement Procedures (RRPs)
RRP8.3 GEAR ASSEMBLY HOUSING (PL 8.1.3)
Removal
1) Remove the COVER REAR 500 (PL 7.1) (RRP7.9).
2) Remove the COVER REAR (PL 1.1) (RRP1.1).
3) Remove the COVER LEFT (PL 1.1) (RRP1.3).
4) Release the holding of the HARNESS ASSEMBLY INTERLOCK2 and HARNESS ASSEMBLY
LVPS from the clamps on the GEAR ASSEMBLY HOUSING.
5) Remove the 6 screws (silver, 6mm x 5, gold, 6mm x 1) securing the GEAR ASSEMBLY HOUSING
to the frame (Figure 1).
6) Release the hooks of the GEAR ASSEMBLY HOUSING, and remove it from the frame (Figure 1).
When removing the GEAR ASSEMBLY HOUSING, two of the gears that are installed to
the GEAR ASSEMBLY HOUSING are not fixed and they may come off. Be careful not to
drop them.

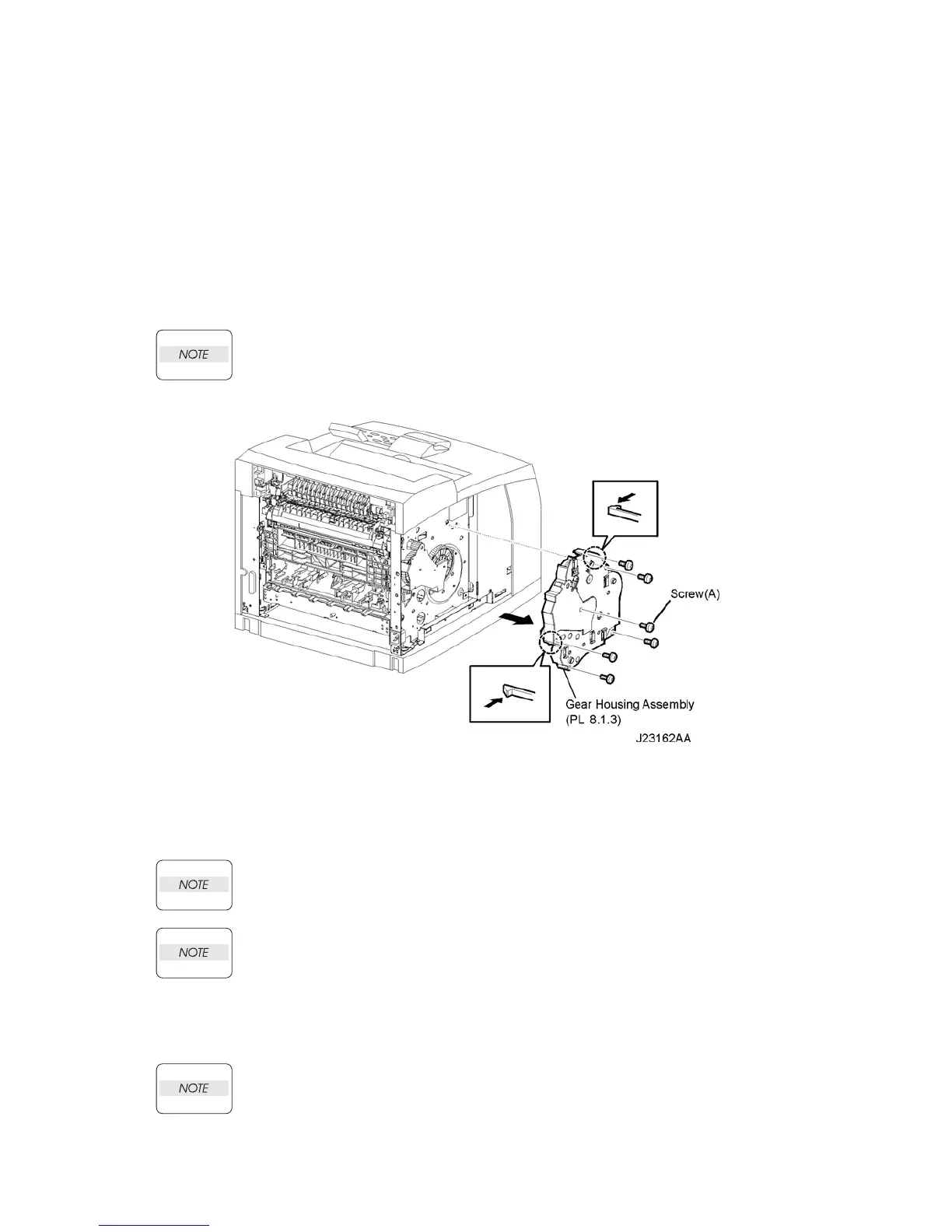

Figure 1. Gear Housing Assembly
Replacement
1) Install the GEAR ASSEMBLY HOUSING to the frame (Figure 1).
When installing, two of the gears that are installed to the GEAR ASSEMBLY HOUSING
are not fixed and they may come off. Be careful not to drop them.
When installing, engage the gears of the GEAR ASSEMBLY HOUSING, MAIN MOTOR,
and GEAR ASSEMBLY PLATE. After assembling, check the engagement of the gears.
The gears will engage easily when they are assembled, by rotating the MAIN MOTOR
with hand.
2) Install the GEAR ASSEMBLY HOUSING to the frame using the 6 screws (silver, 6mm x 5, gold,
6mm x 1) (Figure 1).
Be sure to tighten the screw (gold, 8mm) shown as “Screw (A)” (Figure 1).
3) Secure the HARNESS ASSEMBLY INTERLOCK 2 and HARNESS ASSEMBLY LVPS (PL 9.1)
using the clamps on the GEAR ASSEMBLY HOUSING (Figure 1).
