Chapter 3 Removal and Replacement Procedures (RRPs)
RRP12.27SPRING EARTH TOP (PL12.2)
Removal

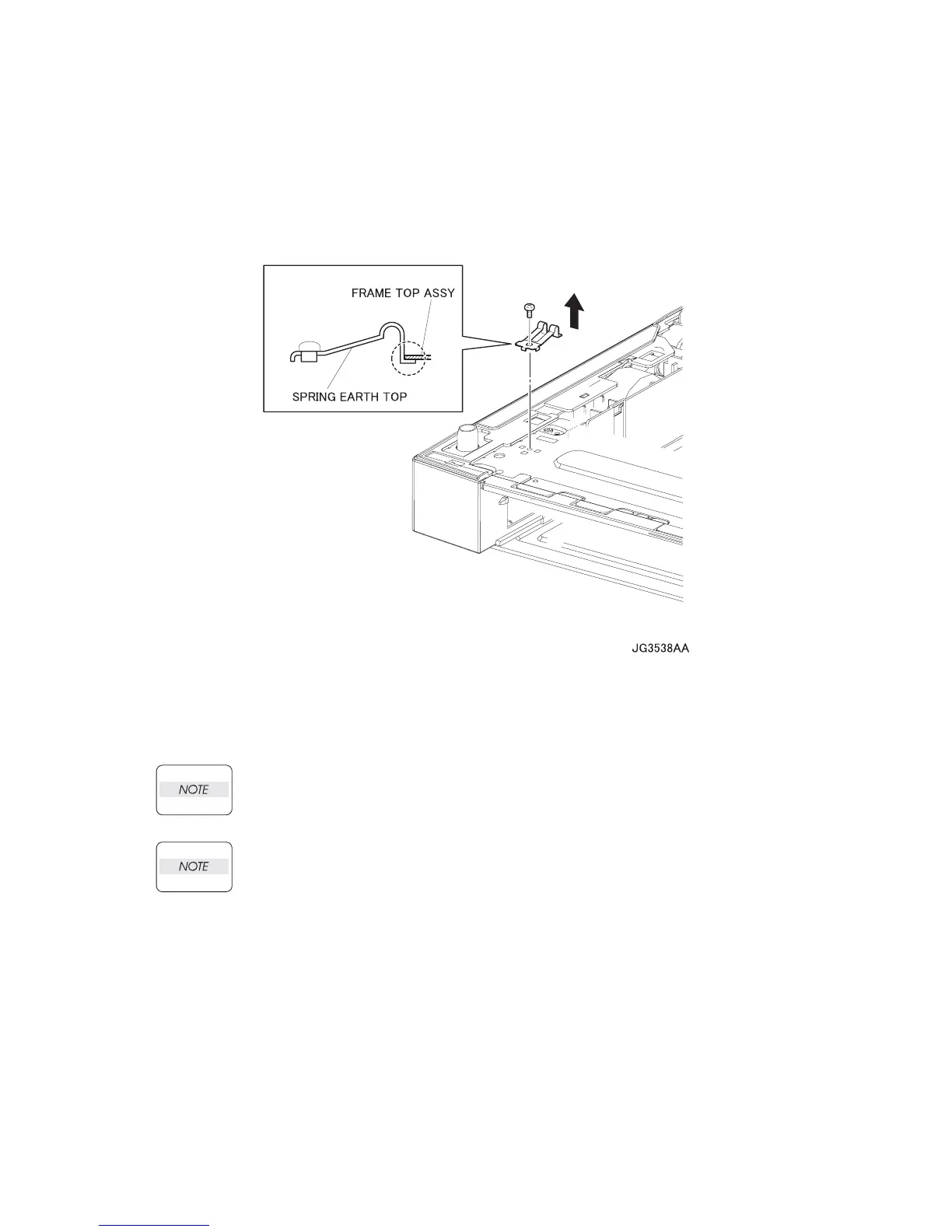

1) Remove the screw (silver, 6mm) securing the SPRING EARTH TOP to the FRAME TOP ASSY
(PL 12.1.7).
2) Remove the SPRING EARTH TOP.
Replacement
1) Put the tip of the SPRING EARTH TOP into the hole of the FRAME TOP ASSY (PL 12.1.7),
and secure it using the screw (silver, 6mm).
The tip of the SPRING EARTH TOP should be put into the hole and should not be on the
FRAME TOP ASSY
After installalation, when the top of the SPRING EARTH TOP is depressed, make sure
that it moves downward.
