Chapter 3 Removal and Replacement Procedures (RRPs)
RRP1.2 COVER RIGHT (PL 1.1)
Removal
1) Loosen the screw securing the COVER RIGHT to the rear side of the printer (Figure 1).
2) Shift the COVER RIGHT in the direction of the arrow to release the 4 hooks, two below, one in
front and one on rear, securing the cover to the printer.
3) Shift the COVER RIGHT downward to release the 3 hooks securing the top of it, and remove the
COVER RIGHT from the printer.
Replacement
1) Shift the COVER RIGHT upward to lock the 3 hooks to the printer (Figure 1).
2) Shift the COVER RIGHT frontward to secure the 4 hooks, two below, one in front and one on rear,
to the printer.
3) Secure the COVER RIGHT to the printer using the screw on the rear side of the printer.

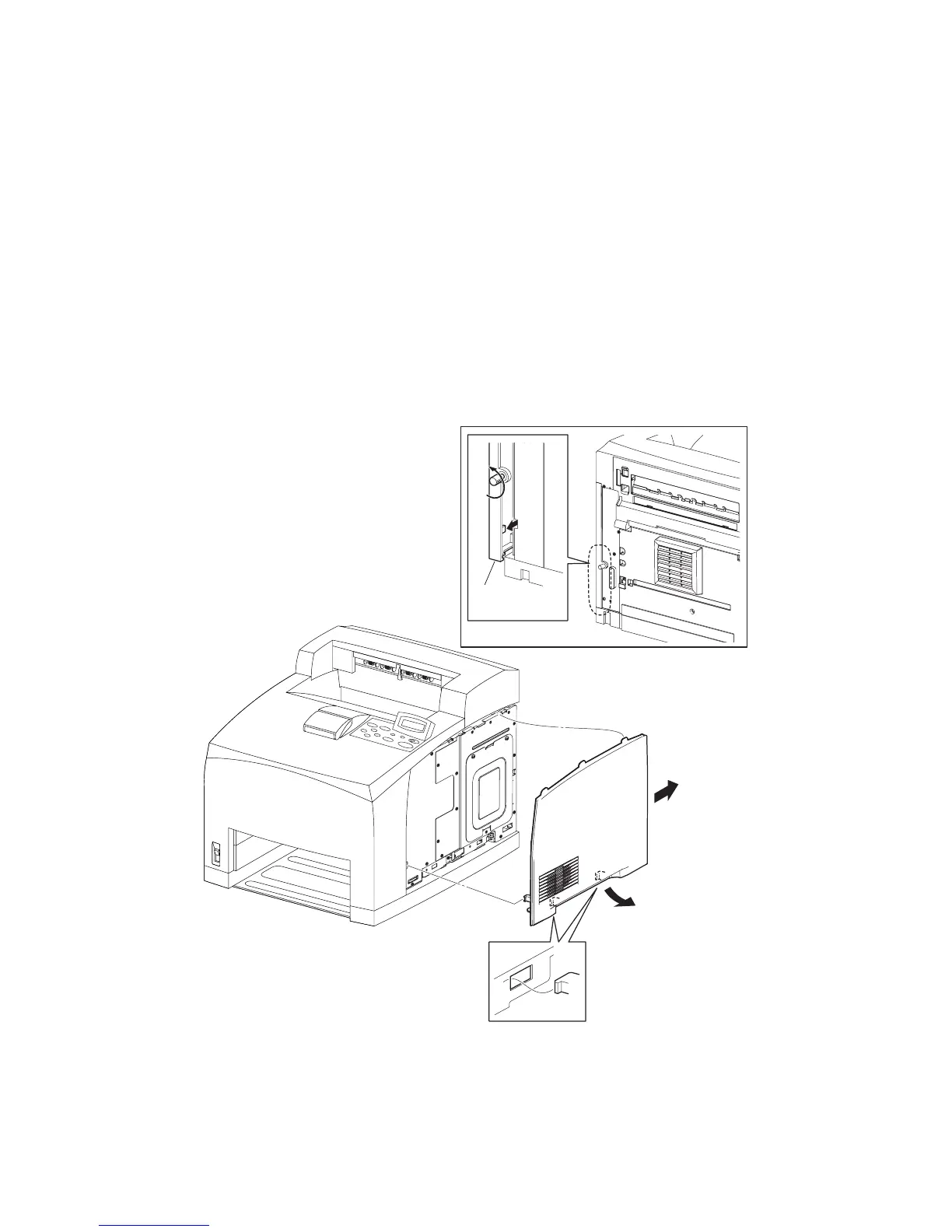

Figure 1. Cover Right
JG3144AA
(2)
(3)
COVER RIGHT
(PL1.1.4)
To Next Page
