Chapter 3 Removal and Replacement Procedures (RRPs)
RRP5.3 CLUTCH ONEWAY NUDGER (PL 5.1.27)
Removal
1) Open the COVER OPEN (PL 1.1) so that the removing operation can be checked visually.
2) Remove the Paper Cassettes of the Tray 1 and Tray 2.
3) Lift up the 150 FEEDER ASSEMBLY (PL 4.1).
The 150 FEEDER ASSEMBLY clicks into a notch when lifted to the half way point, push
the assembly past the notch.
4) While holding the 150 FEEDER ASSEMBLY, remove the ROLL ASSEMBLY FEED (PL 5.1.29) by
hand which is inserted through the space left by the Paper Cassettes (RRP5.2) (Figure 1).
When removing, do not touch the roller surface of the ROLL ASSEMBLY FEED.
5) Pull out the CLUTCH ONEWAY FEED (PL 5.1.28) from the SHAFT FEED (PL 5.1) (Figure 1).
6) Remove the E-ring securing the CLUTCH ONEWAY NUDGER to the SHAFT FEED.
7) Pull out the CLUTCH ONEWAY NUDGER from the SHAFT FEED (Figure 1).

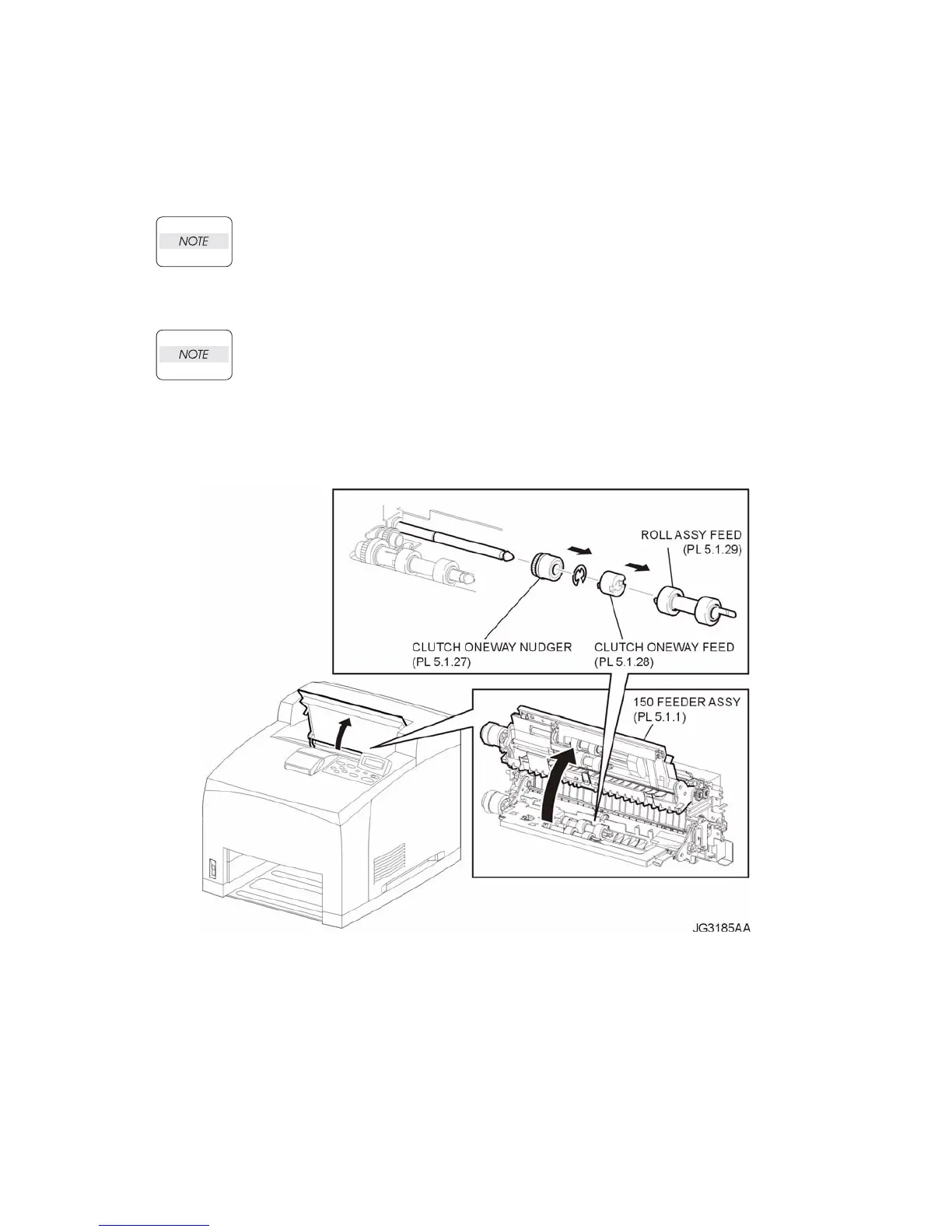

Figure 1. Nudger One-way Clutch
Replacement
1) Install the CLUTCH ONEWAY NUDGER to the SHAFT FEED (PL 5.1), and secure it using the E-
ring (Figure 1).
2) Install the CLUTCH ONEWAY FEED (PL 5.1.28) to the SHAFT FEED (Figure 1).
3) Install the ROLL ASSEMBLY FEED (PL 5.1.29) to the SHAFT FEED, and secure it with the hook.
(RRP5.2) (Figure 1).
