Chapter 3 Removal and Replacement Procedures (RRPs)
RRP10.13COVER HARNESS (PL10.1), HARNESS ASSY DUP (PL10.1)
Removal
1) Remove the COVER LEFT (PL 10.1). (RRP10.9)
2) Remove the COVER RIGHT (PL 10.1). (RRP10.10)
3) Remove the HSG LOWER DUP (PL 10.1). (RRP10.3)

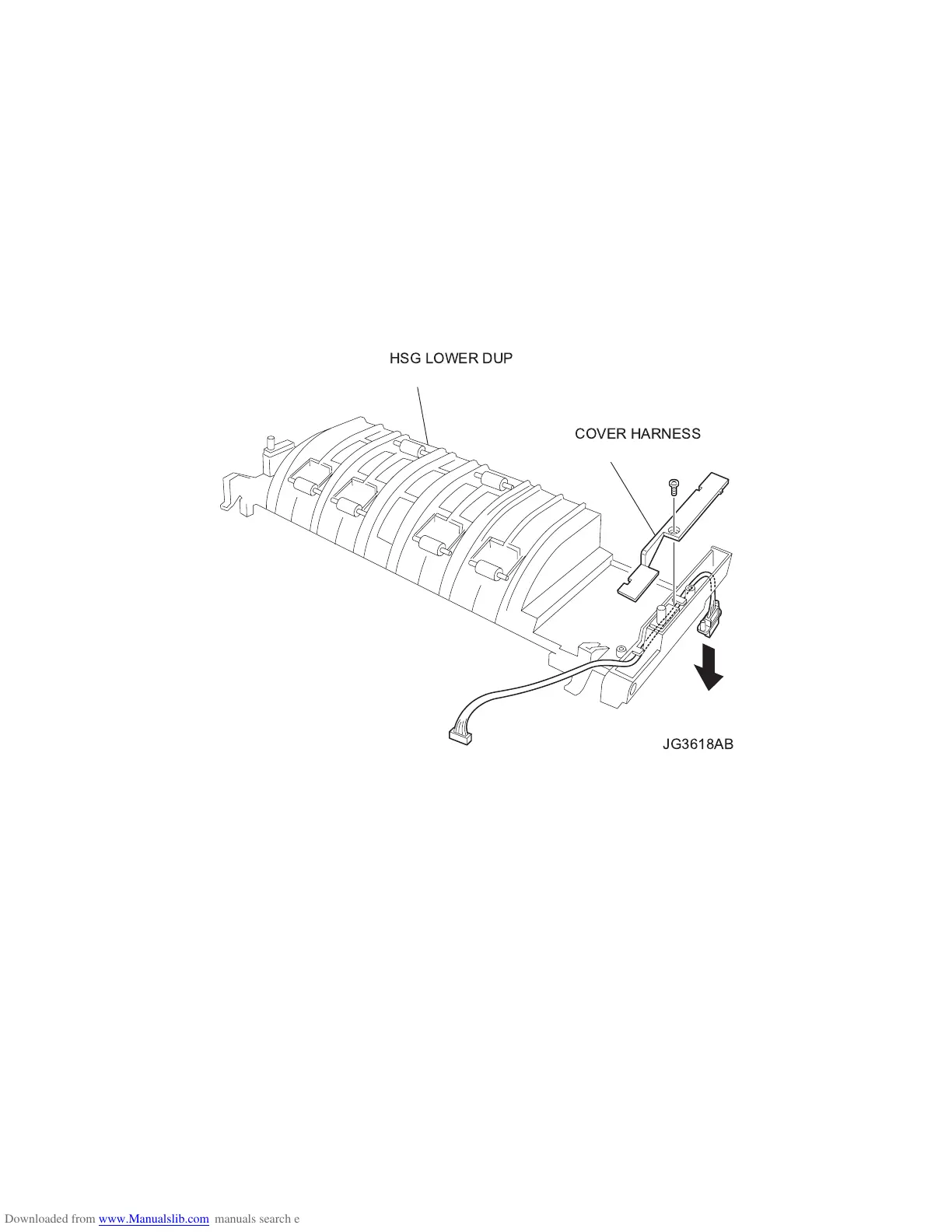

4) Remove the screw (gold tapping, 8mm) securing the COVER HARNESS R.
5) Release the 2 hooks of the COVER HARNESS, and remove it from the HSG LOWER DUP.
6) Disconnect the connector of the HARNESS ASSY DUP (PL 10.1) from the HSG LOWER DUP
(PL 10.1), and remove the HARNESS ASSY DUP (PL 10.1).
Replacement
1) Connect the connector of the HARNESS ASSY DUP (PL 10.1) to the HSG LOWER DUP (PL
10.1).
2) Install the COVER HARNERSS to the HSG LOWER DUP, and fix it with the 2 hooks.
3) Secure the COVER HARNESS with the screw (gold tapping, 8mm).
4) Install the HSG LOWER DUP (PL 10.1). (RRP10.3)
5) Install the COVER RIGHT (PL 10.1). (RRP10.10)
6) Install the COVER LEFT (PL 10.1). (RRP10.9)
