3 - 28
Chapter 3 Removal and Replacement Procedures (RRPs)
RRP2.7 HANDLE EXTENSION 150 (PL 2.1)
Removal
1) Remove the COVER CST (PL2.1.1) from the 150 PAPER CASSETTE.
2) Remove the 2 screws on the back side of the HANDLE EXTENSION 150 (PL 2.1) (Figure 1).
3) Release the 5 hooks at the upper side and the 2 hooks at the lower side of the HANDLE EXTEN-
SION 150 (PL 2.1), then, remove the HANDLE EXTENSION 150 (PL 2.1) from the HOUSING
EXTENSION 150 (PL 2.1) (Figure 1).
Replacement
1) Put the 5 hooks on the upper side and 2 hooks on the lower side of the HANDLE EXTENSION 150
(PL 2.1) to the HOUSING EXTENSION 150 (PL 2.1).
2) Secure the HANDLE EXTENSION 150 (PL 2.1) to the HOUSING EXTENSION 150 (PL 2.1) using
the 2 screws.
3) Install the COVER CST (PL 2.1) to the 150 PAPER CASSETTE.

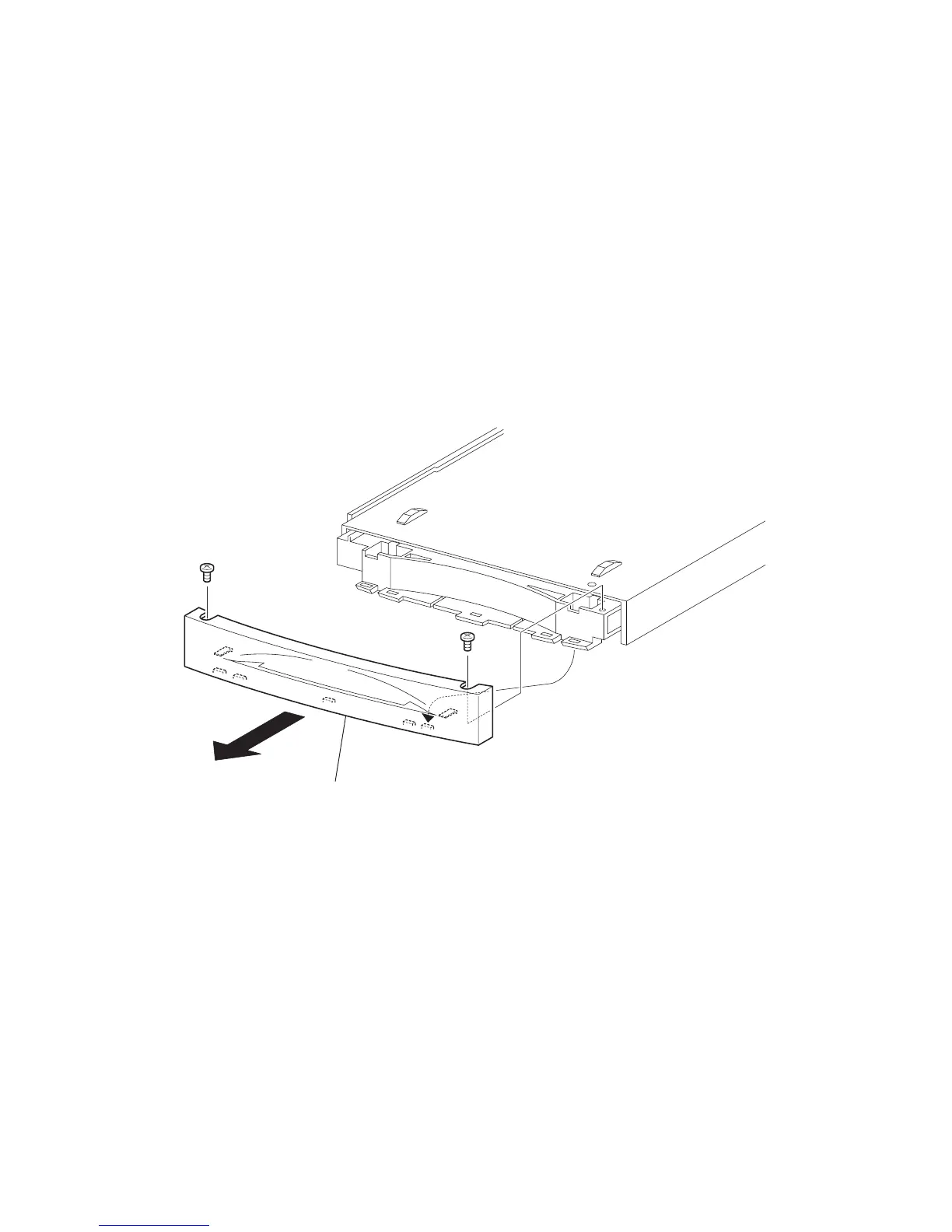

Figure 1. Handle Extension
HANDLE EXTENSION 150
(PL2.1.33)
JG3301AA
To Next Page
