Oki B6500

3 - 212
Chapter 3 Removal and Replacement Procedures (RRPs)
RRP11.13MOTOR ASSY OCT (PL11.1)
Removal
1) Remove the COVER REAR (PL 11.1). (RRP11.2)
2) Remove the COVER OCT (PL 11.1). (RRP11.4)
3) Disconnect the connector of the MOTOR ASSY OCT from the HARNESS ASSY OCT MOT
(PL 11.1).
4) Remove the 2 screws (gold, 8mm) securing the MOTOR ASSY OCT, and remove the MOTOR
ASSY OCT.
Replacement
1) Secure the MOTOR ASSY OCT using the 2 screws (gold, 8mm).
2) Connect the connector of the MOTOR ASSY OCT to the HARNESS ASSY OCT MOT (PL
11.1).
3) Install the COVER FRONT (PL 11.1). (RRP11.5)
4) Install the COVER OCT (PL 11.1). (RRP11.4)
5) Install the COVER REAR (PL 11.1). (RRP11.2)

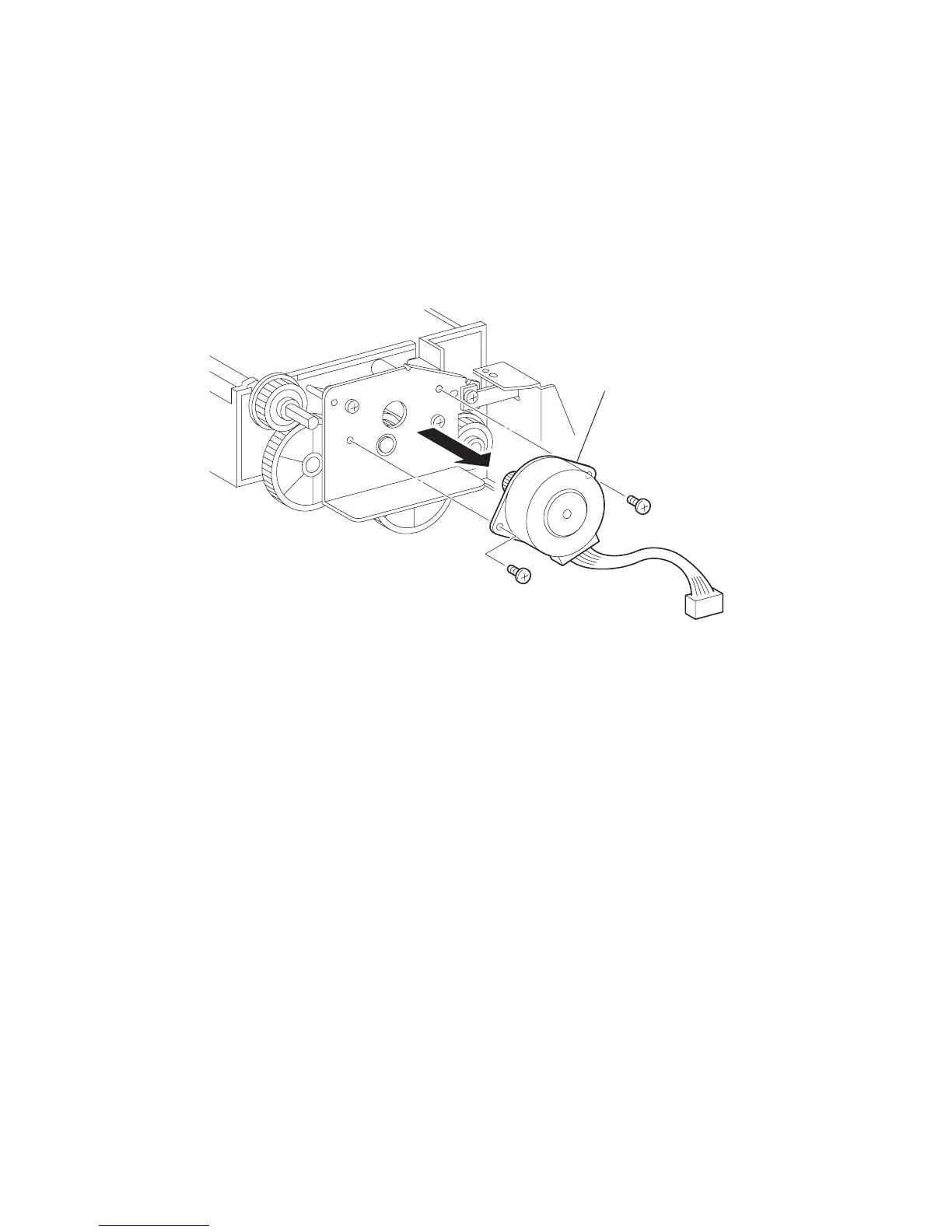

MOTOR ASSY OCT
(PL23.1.6)
JG3817AA
