Chapter 3 Removal and Replacement Procedures (RRPs)
Replacement
1) Install the ROLL OCT UPPER to the CHUTE OFFSET ASSY (PL 11.1).
2) Install the 2 BEARING ROLLs (PL 11.1) to the CHUTE OFFSET ASSY.
3) Install the BEARING ROLL (PL 11.1) to the HOUSING OCT (PL 11.1).
4) Install the CHUTE OFFSET ASSY to the HOUSING OCT. Install the BEARING OFFSET (PL
11.1), and secure it with the hook.
5) Install the GEAR 19 (PL 11.1), GEAR 45 (PL 11.1) and GEAR 19/37 (PL 11.1) in order.
When installing the GEAR 19, be careful in the installing direction.
6) Install the BRACKET MOTOR OCT (PL 11.1) using the 2 screws (gold tapping, 8mm).
7) Install the SUPPORT OCT LEFT using the 2 screws (gold tapping, 8mm, gold 6mm).
8) Install the GEAR CAM (PL 11.1). (Figure 23.5)
9) Install the COVER FRONT (PL 11.1). (RRP11.5)
10) Install the COVER OCT (PL 11.1). (RRP11.4)
11) Install the COVER REAR (PL 11.1). (RRP11.2)

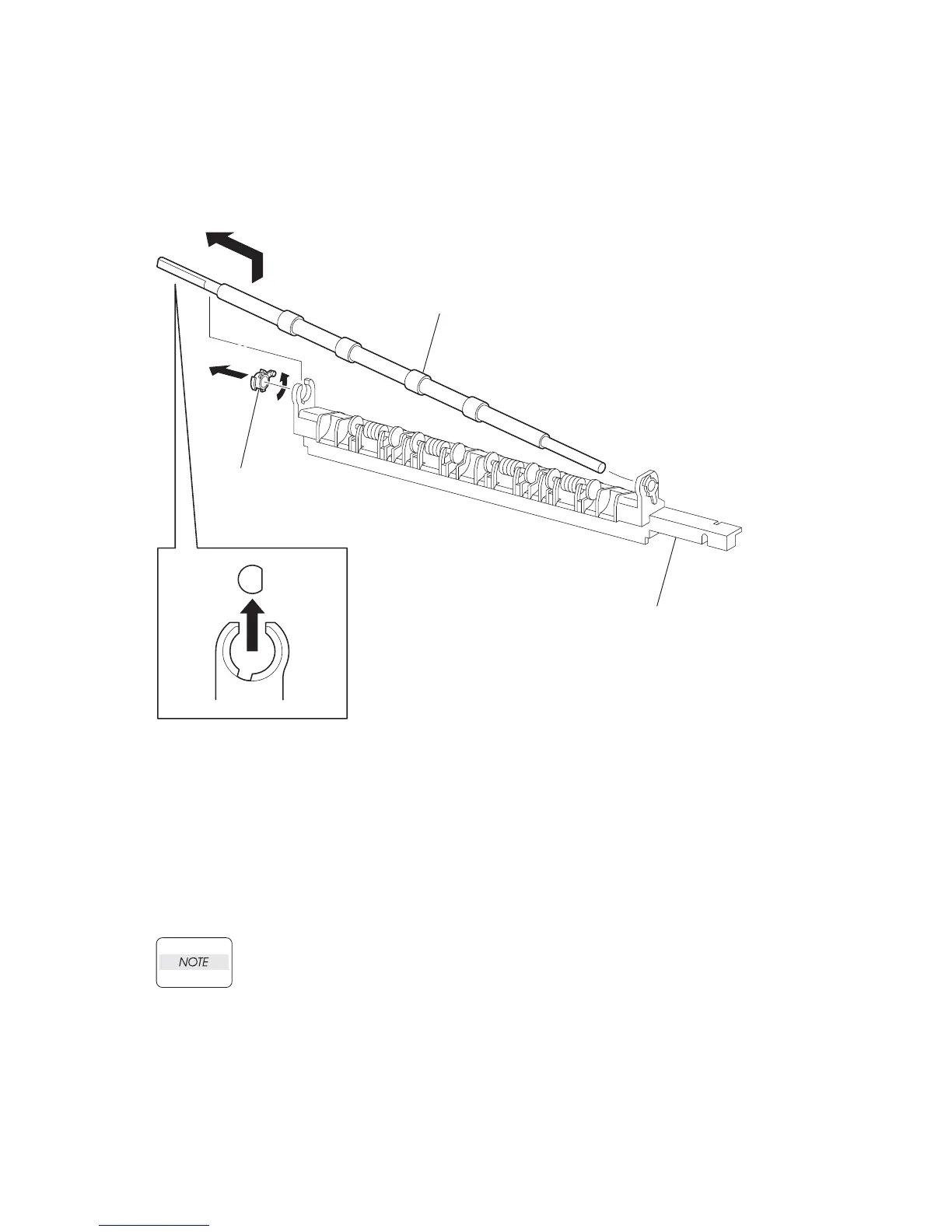

BEARING ROLL
(PL23.1.13)
CHUTE OFFSET ASSY
(PL23.1.35)
ROLL OCT UPPER
(PL23.1.36)
