Chapter 3 Removal and Replacement Procedures (RRPs)
RRP6.9 BTR ASSEMBLY (PL 6.1)]
Removal
1) Open the COVER OPEN (PL 1.1).
2) Pinch the hooks of both ends of the BTR ASSEMBLY, and remove it from the printer (Figure 1).
Use extreme care in handling of the BTR ASSEMBLY, do not touch or damage the BTR
surface.

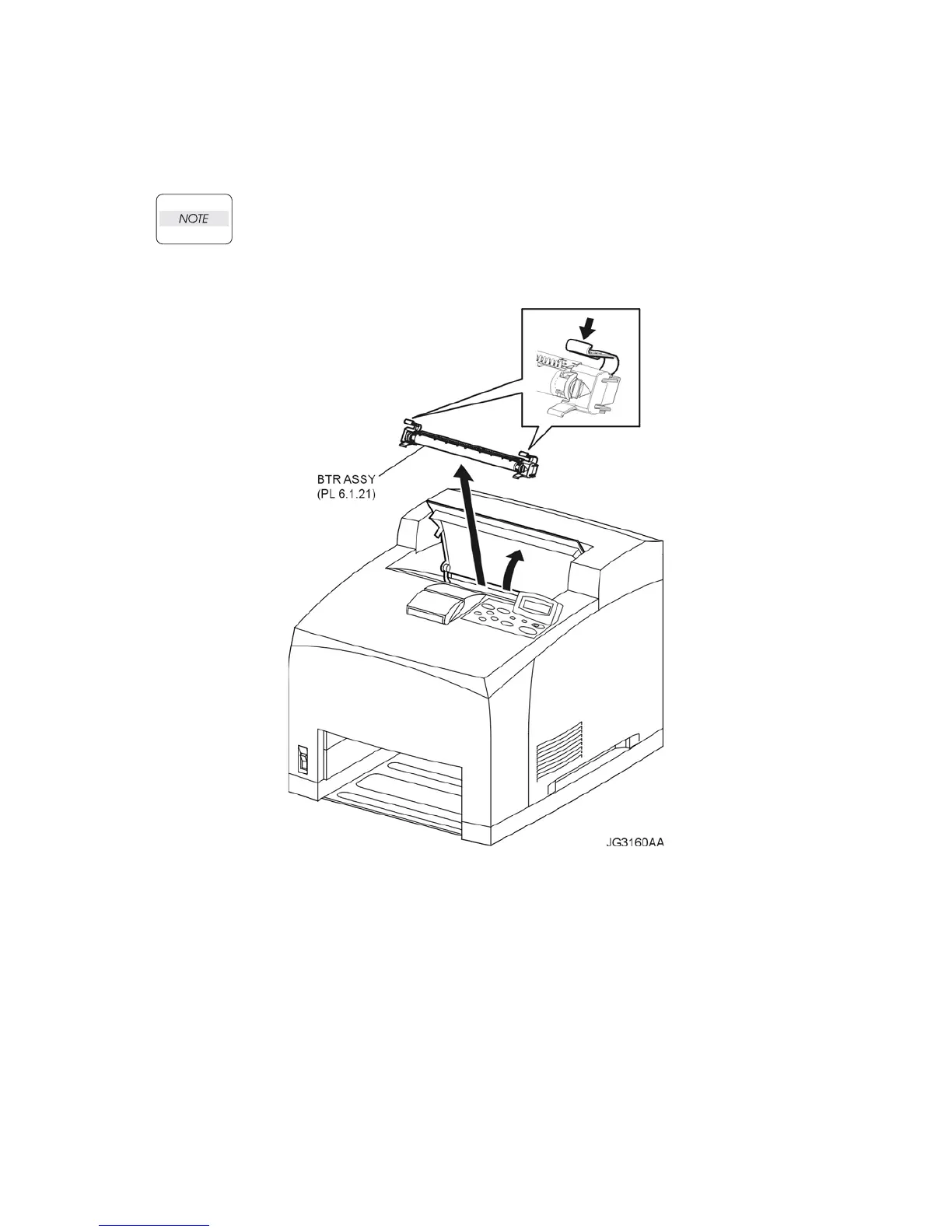

Figure 1. BTR Assembly
Replacement
1) Pinch the hooks of both ends of the BTR ASSEMBLY, and install it to the printer (Figure 1).
2) Close the COVER OPEN (PL 1.1).
