3 - 267
Chapter 3 Removal and Replacement Procedures (RRPs)
RRP12.26LOW IND FRONT (PL12.3)
Removal
1) Remove the COVER CST (PL 12.3.1) from the 550 PAPER CASSETTE (PL 12.3.50).
2) Remove the HANDLE EXTENSION 550 (PL 12.3.41). (RRP12.23)

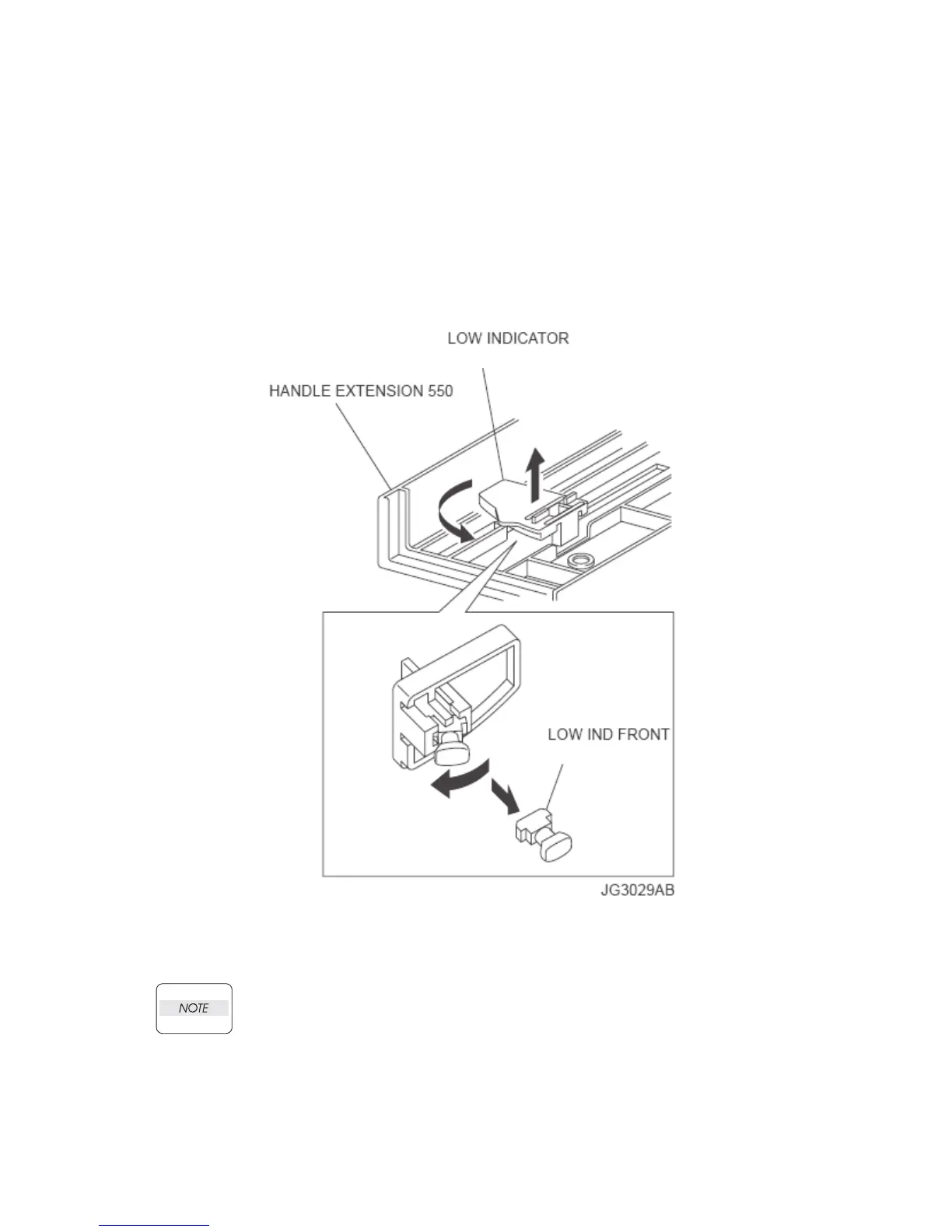

3) Turn the LOW INDICATOR (PL 12.3.37) by 90 degrees, and remove it together with the LOW
IND FRONT from the HANDLE EXTENSION 550.
4) Release the hook on the one side of the LOW IND FRONT, and remove the LOW IND FRONT
from the LOW INDICATOR.
Replacement
1) Install the LOW INDICATOR (PL 12.3.37) to the LOW INDICATOR.
When installing the LOW IND FRONT to the LOW INDICATOR, be careful in the installing
direction of the LOW IND FRONT.
2) Turn the LOW INDICATOR by 90 degrees in the opposite direction of the arrow, and install it
together with the LOW IND FRONT to the HANDLE EXTENSION 550.
3) Install the HANDLE EXTENSION 550 (PL 12.3.41). (RRP12.23)
4) Install the COVER CST (PL 12.3.1) to the 550 PAPER CASSETTE (PL 12.3.50).
