Oki B6500

3 - 133
Chapter 3 Removal and Replacement Procedures (RRPs)
RRP7.12 LEVER LATCH LEFT, SPRING LATCH FU, LEVER LATCH RIGHT (PL 7.2)
Removal
1) Remove the COVER REAR 500 (PL 7.1) (RRP7.9).
2) Remove the 5 screws (gold tapping, 6mm) securing the CHUTE LOW FU (PL 7.2) to the COVER
REAR 550.
3) Release the hooks of the COVER REAR 550, and remove the CHUTE LOW FU from the COVER
REAR 550.
4) Remove the ROLL FU (PL 7.2) (RRP7.10).
5) Remove the LEVER GATE HOLDER (PL 7.2), SPRING LEVER GATE (PL 7.2), LEVER GATE FU
(PL 7.2) (RRP7.11).
6) Rotate LEVER LATCH LEFT (PL 7.2) in the direction of the arrow, and remove it (Figure 1).
Completely insert the internal projection of LEVER LATCH LEFT (PL 7.2) into the notch of
CHUTE LOW FU (PL 7.2).
7) Rotate LEVER LATCH RIGHT (PL 7.2) in the direction of the arrow, and remove it (Figure 1).
Completely insert the internal projection of LEVER LATCH RIGHT (PL 7.2) and the notch
of CHUTE LOW FU (PL 7.2).
PIPE LATCH FU (PL 7.2) is also removed.
8) Remove the SPRING LATCH (PL 7.2) (Figure 1).

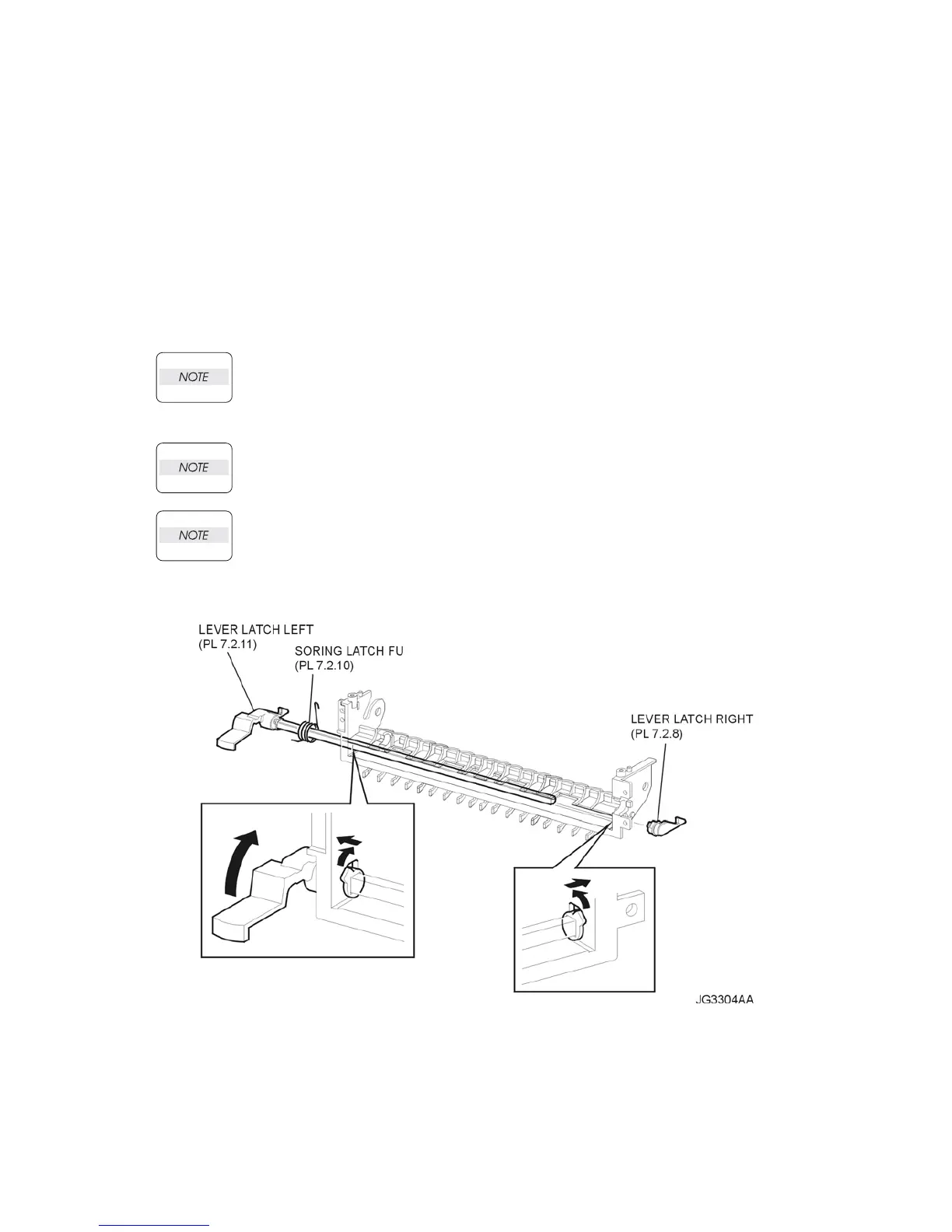

Figure 1. Left Lever Latch & Spring
