Chapter 3 Removal and Replacement Procedures (RRPs)

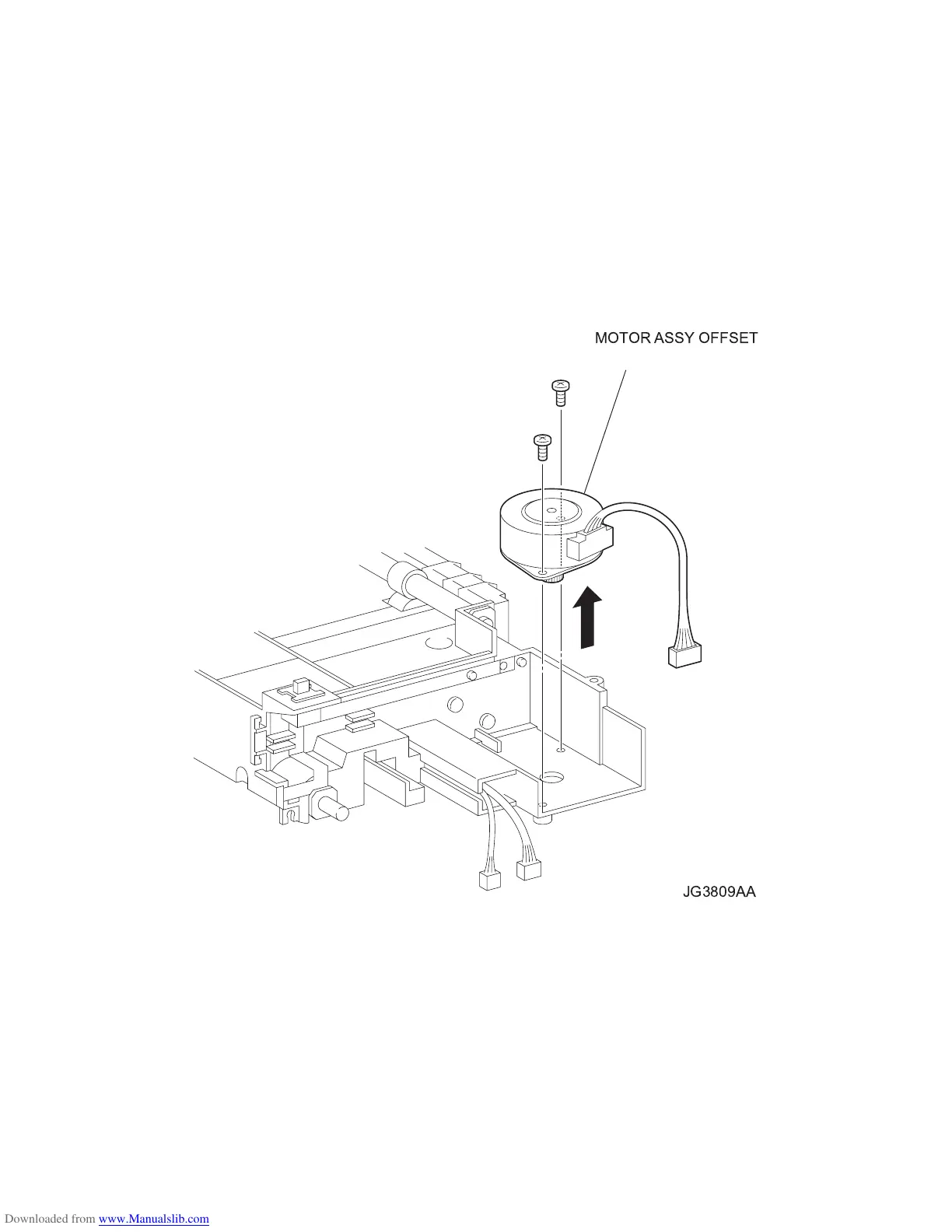

RRP11.8 MOTOR ASSY OFFSET (PL11.1)
Removal
1) Remove the COVER REAR (PL 11.1). (RRP11.2)
2) Remove the COVER OCT (PL 11.1). (RRP11.4)
3) Remove the PWBA OCT (PL 11.1). (RRP11.7)
4) Remove the 2 screws (gold tapping, 8mm) securing the MOTOR ASSY OFFSET to the Option
OCT.
5) Remove the MOTOR ASSY OFFSET.
Replacement
1) Install the MOTOR ASSY OFFSET to the Option OCT using the 2 screws (gold tapping, 8mm).
2) Install the PWBA OCT (PL 11.1). (RRP11.7)
3) Install the COVER OCT (PL 11.1). (RRP11.4)
4) Install the COVER REAR (PL 11.1). (RRP11.2)
