Chapter 3 Removal and Replacement Procedures (RRPs)
RRP10.9 COVER LEFT (PL10.1)
Removal
1) Remove the 2 screws (gold tapping, 8mm) securing the COVER LEFT.
2) Remove the COVER LEFT from the COVER HSG DUP (PL 10.1).
Replacement
1) Install the COVER LEFT to the COVER HSG DUP (PL 10.1) using the 2 screws (gold tapping,
8mm).
When installing, be sure to fit the positioning holes on the COVER LEFT to the
bosses on the COVER HSG DUP.

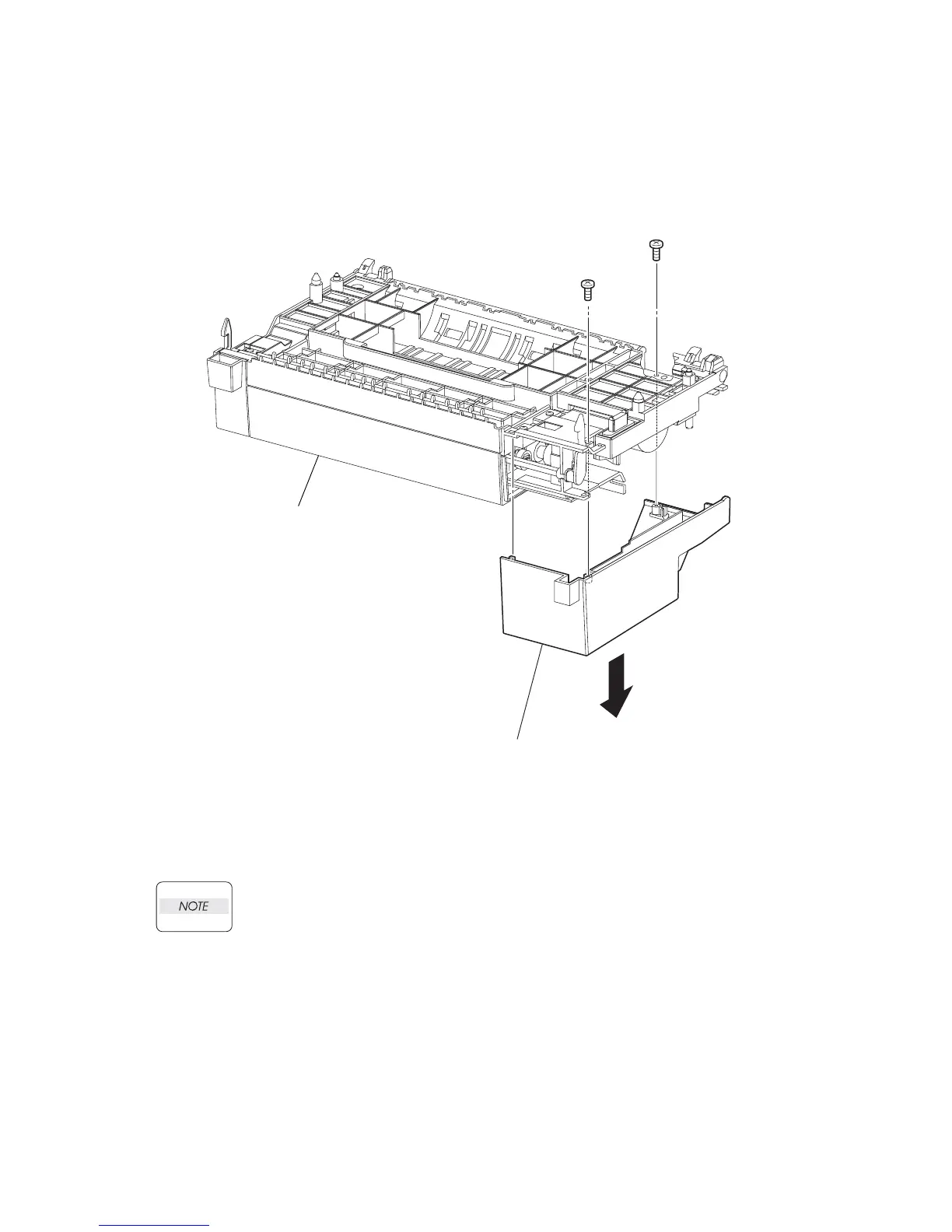

COVER LEFT
(PL21.1.25)
COVER HSG DUP
(PL21.1.18)
J23609AA
