3 - 6
Chapter 3 Removal and Replacement Procedures (RRPs)
RRP1.3 COVER LEFT (PL 1.1)
Removal
1) Remove the 500 COVER REAR (PL 7.1.21) (RRP7.9).
2) Remove the COVER REAR (PL 1.1) (RRP1.1).
3) Shift the COVER LEFT in the direction of the arrow to release the 4 hooks, two below and two on
rear, securing the cover to the printer (Figure 1).
4) Shift the COVER LEFT downward to release the 3 hooks securing the top of it, and remove the
COVER LEFT from the printer.
Replacement
1) Shift the COVER LEFT upward to lock the 3 hooks to the printer.
2) Shift the COVER LEFT frontward to lock the 4 hooks, two below and two on rear, to the printer.
3) Install the COVER REAR (PL 1.1) (RRP1.1).
There are 2 kinds of screws, make sure they are installed correctly.
4) Install the COVER REAR 500 (PL 7.1) (RRP7.9).

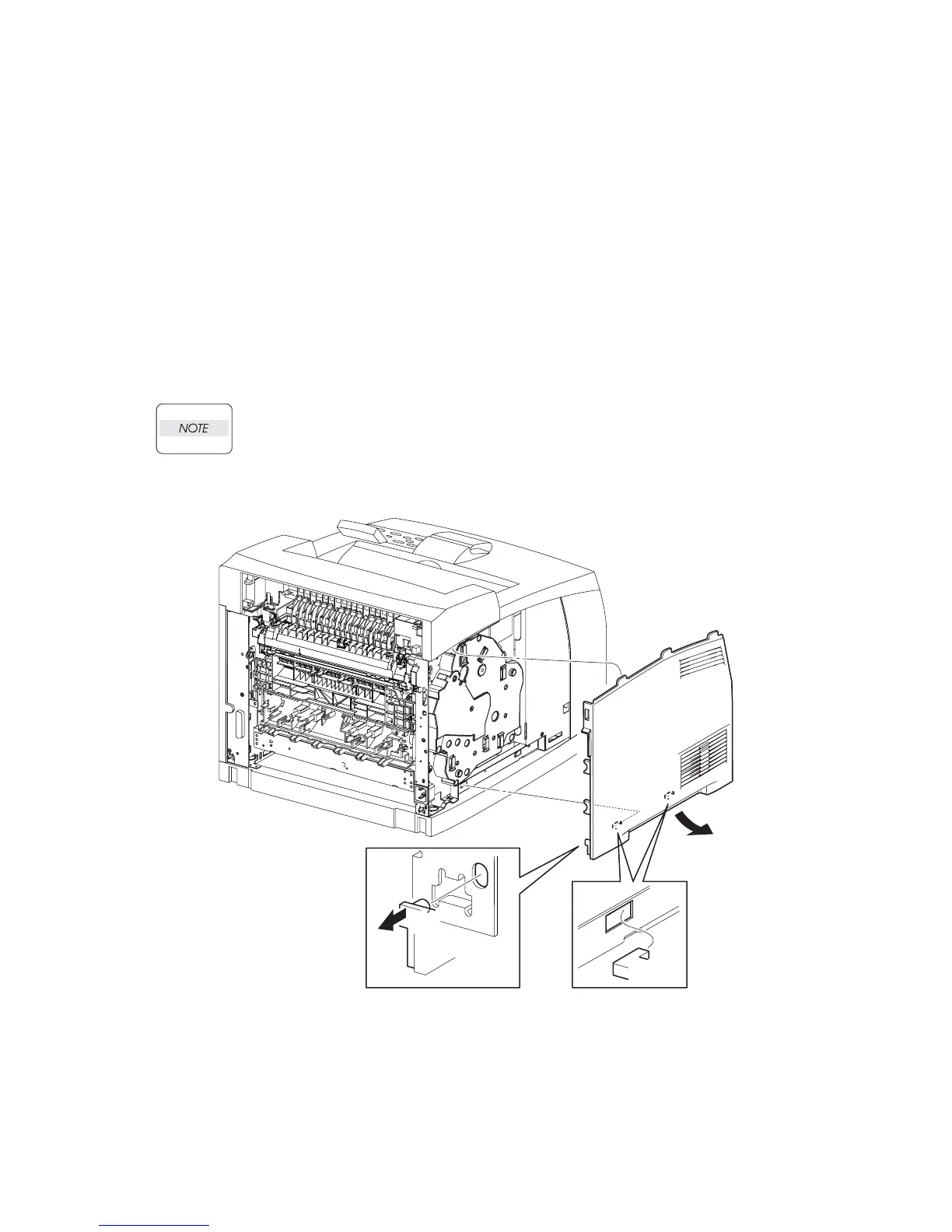

Figure 1. Cover Left
J23145AA
